Product Details
- Designed for Canopies, Awnings, Railings, and Other Applications Using 1/2" (12 mm) Laminated Tempered Glass
- Complete with Hardware to Mount to Post, Column or Wall
- Compact Design for Minimal Obstruction
- Stainless Steel Construction for Durability
- Accommodates Straight or Segmented Applications

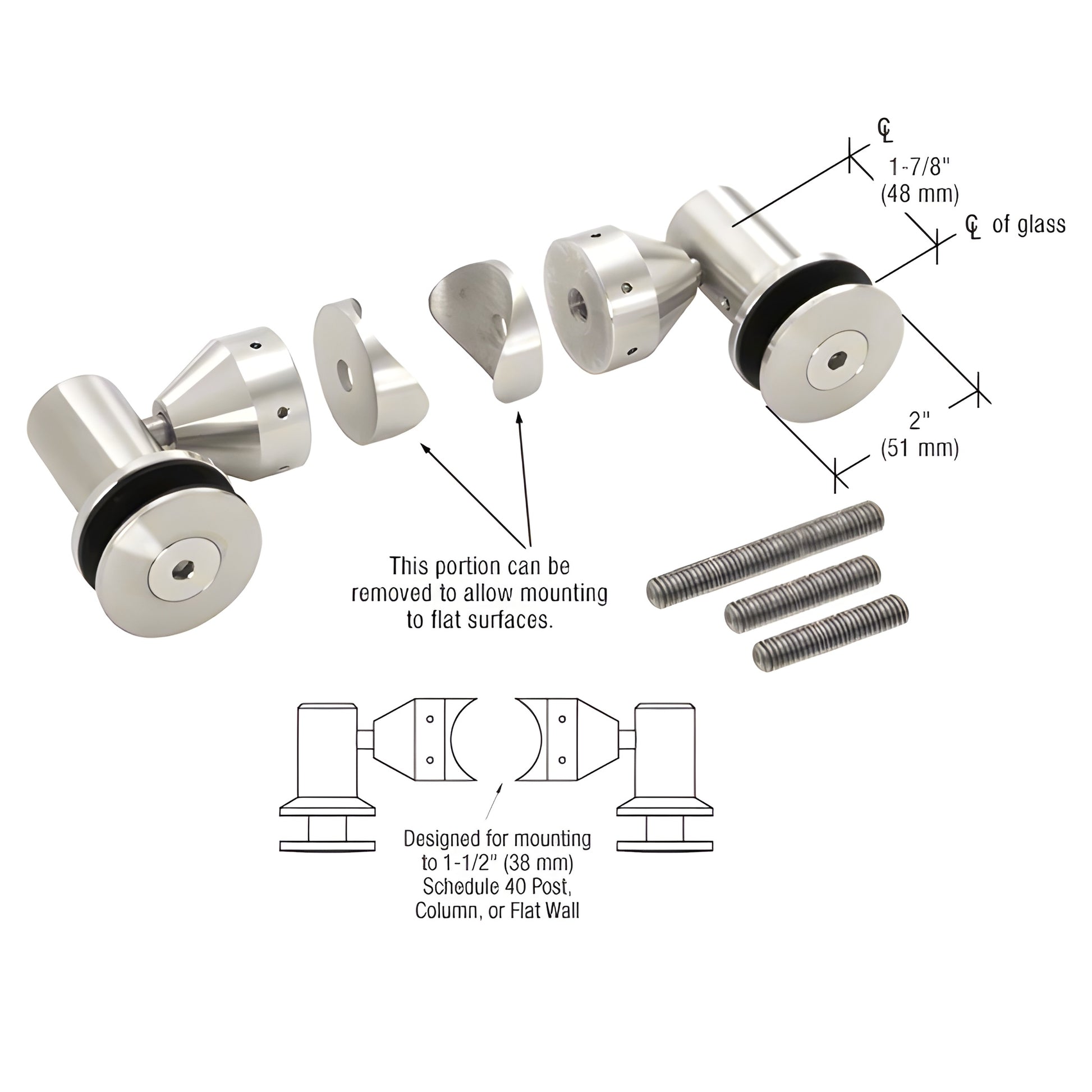

This ingenious CRL Double Arm Glass Fitting can be used to mount 1/2" (12 mm) tempered glass to posts, walls, glass fins, and canopy brackets. The compact attachment portion offers minimal obstruction to the glass, and you can choose from either a fixed or swiveling mount. Glass fabrication is limited to only one 3/4" (19 mm) hole per mount.
Two stainless finishes are available, brushed and polished. Comes with two 3/8"-16 x 13/16" (20.6 mm) and one 3/8"-16 x 1-1/4" (32 mm) stainless steel threaded studs.
SPECIFICATIONS:
For Use with 1/2" (12 mm) Tempered Glass (Do not use with raw or annealed glass)
Glass Fabrication:
One 3/4" (19 mm) Diameter Hole Per Fitting
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
