CRL Polished Stainless Floor Mount Socket with Cap for 2" Tubing
CRL Polished Stainless Floor Mount Socket with Cap for 2" Tubing
Regular price
$178.72 CAD
Regular price
Sale price
$178.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR20FSPS
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

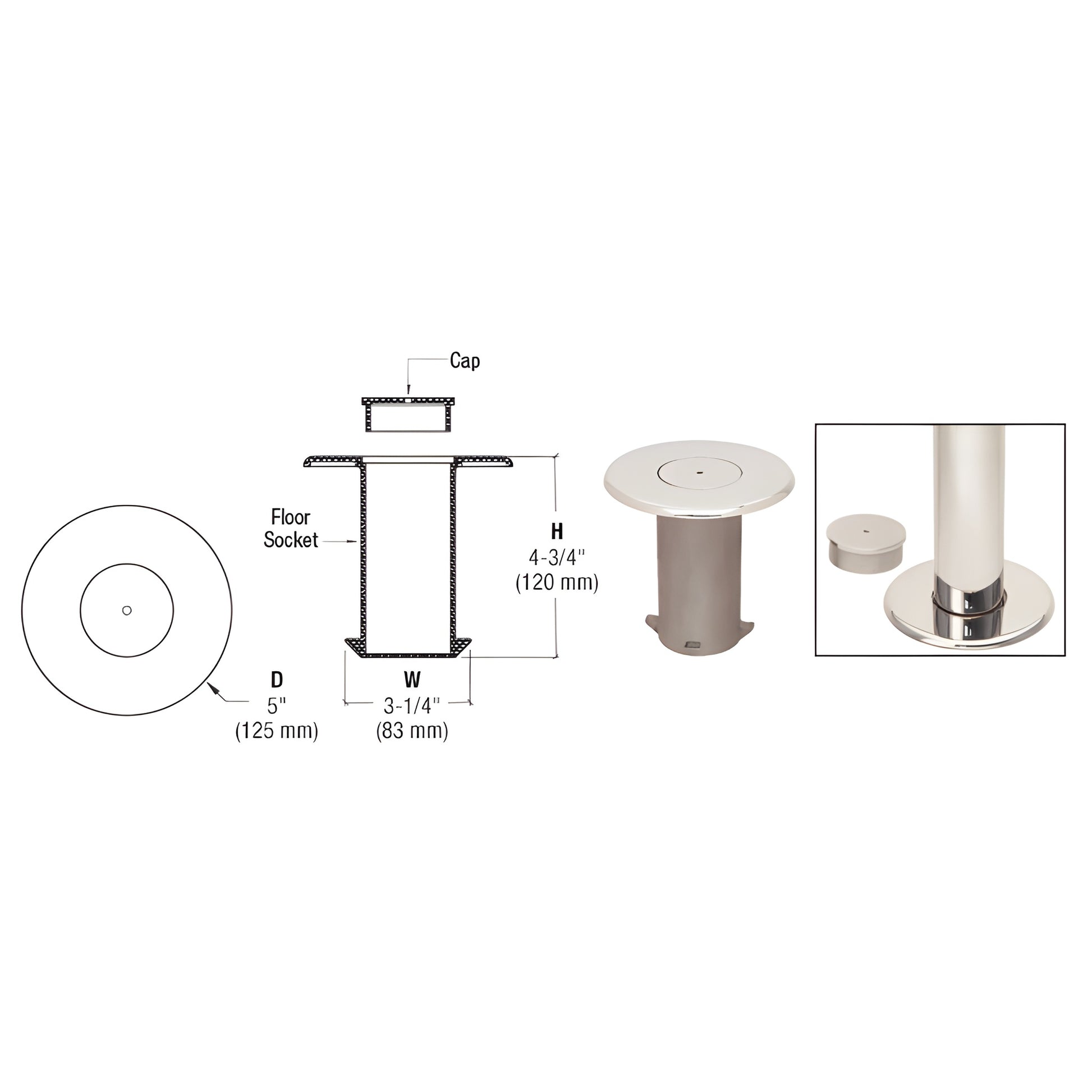

Description
Diameter
5 in. (127 mm)
Finish/Color
Polished Stainless Steel
Height
4-3/4 in. (121 mm)
Material
Stainless Steel
Width
3-1/4 in. (83 mm)
Overview
- Ready-to-Install
- Three Architectural Finishes
- 304 Stainless Alloy or 260 Brass Alloy Standard

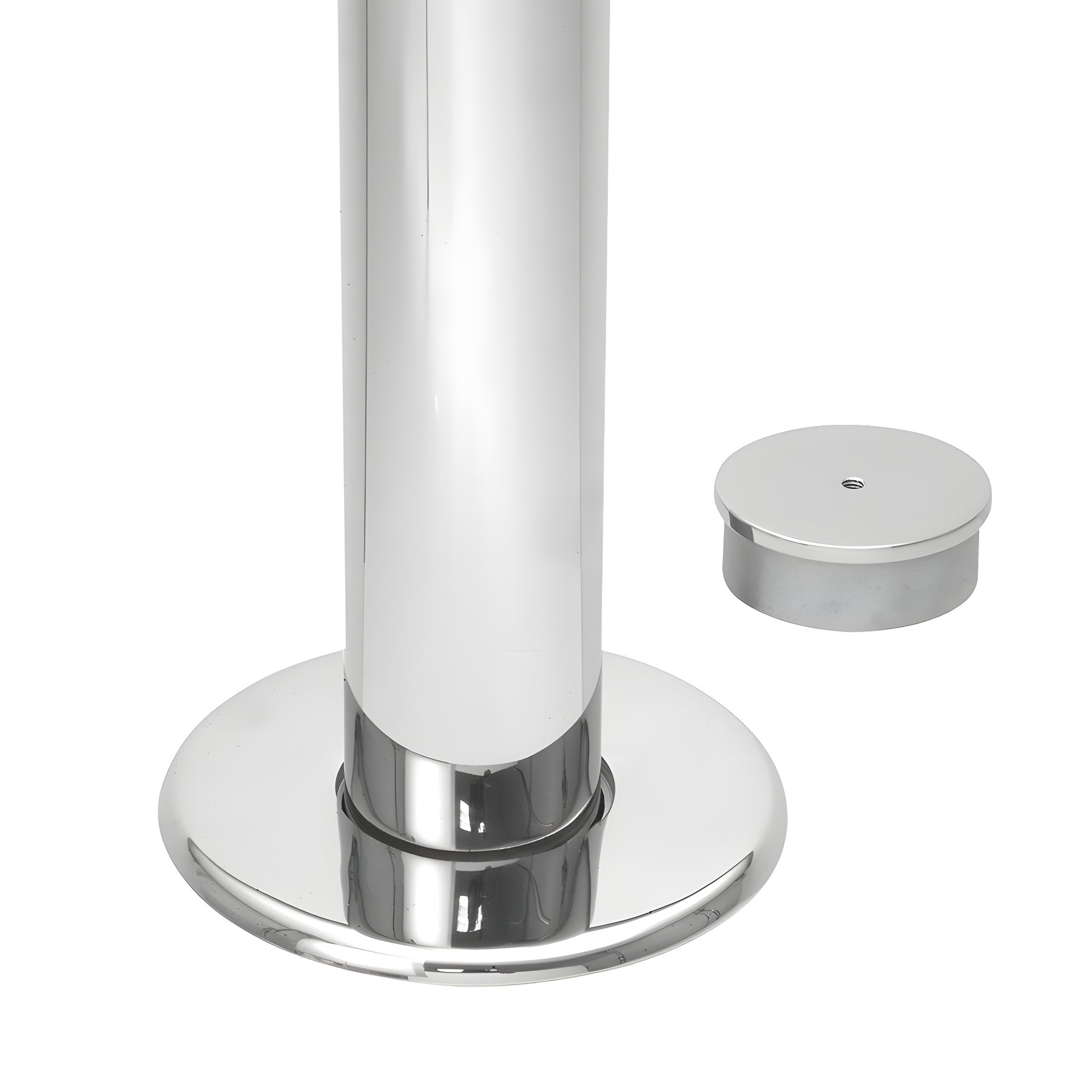

CRL Floor Sockets with Caps provide a low-profile, ready-to-install solution for intermittent partition post use. The floor socket fits a 3-1/4" (82.5 mm) diameter, 5" (127 mm) deep hole and is set with expanding cement. Install the partition post by removing the cap; replace the cap when posts are not required to maintain a finished look and reduce trip hazards. The flange projects only 1/4" (6 mm) above the floor—ideal for flush floor socket installation in commercial and architectural interiors. SKU: HR20FSPS.
Stainless Steel Advisory:
304 stainless steel is corrosion-resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Available in multiple architectural finishes and alloys for durability and aesthetic match—order CRL floor sockets with caps now to complete your partition post system.
Specifications
CAD Drawings - pdf
