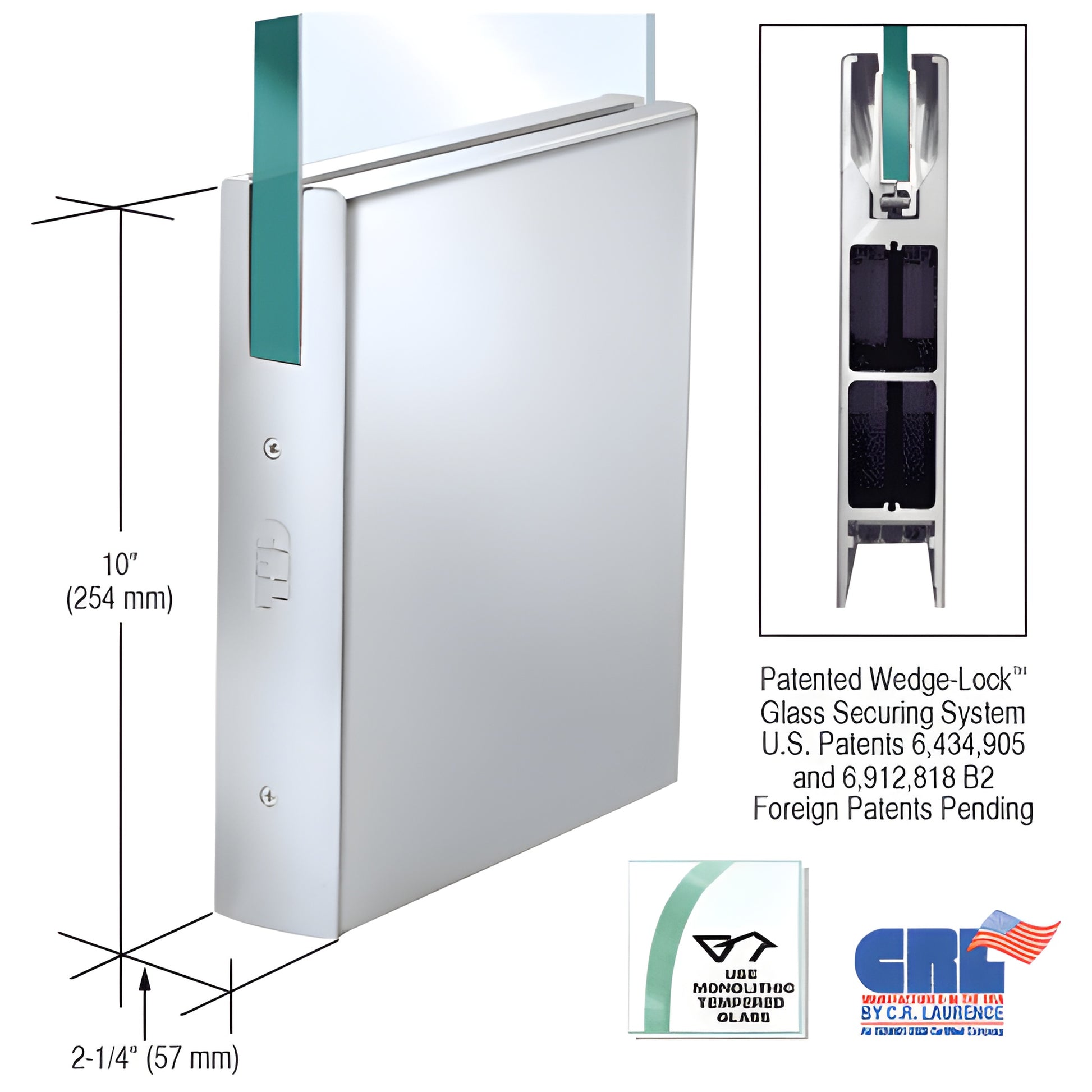

CRL Polished Stainless Glass Door Rail 3/4 in, 10-in Square, No Lock

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The Wedge-Lock® system secures monolithic tempered glass within the door rail by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. Angled extrusion profiles engage an angled groove in the door rail so the wedge action pulls the extrusions together, creating very high clamping force (over 900 lbs. in the 9" / 228.6 mm corner rail). This proven glass securing method delivers exceptional strength for commercial glass doors and storefronts.

NOTE: Actual Product Height: 10" (254 mm)

The Wedge-Lock® Door Rail System offers fast, reliable installation for tempered glass doors. Rails arrive completely fabricated with end caps installed; installers prepare a door for installation in minutes. The unit includes an adjustable door alignment slide so the installed door can be adjusted 1/8" (3 mm) toward or away from the jamb without removal. This Kwik-Adjust™ Pivot Alignment System is standard on both top and bottom rails and supports adjustments for vertical out-of-square openings.

To access the adjustable slide after installation, remove the end cap to expose three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned differently than the American Standard Setback.

Additional benefits of Wedge-Lock® Door Rails:

• Available models accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing resists shifting and long-term misalignment
• Internal components remain in place during installation — no pre-removal required
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms, pivots, closer arms and floor or overhead pivots must be ordered separately to meet specific job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes
