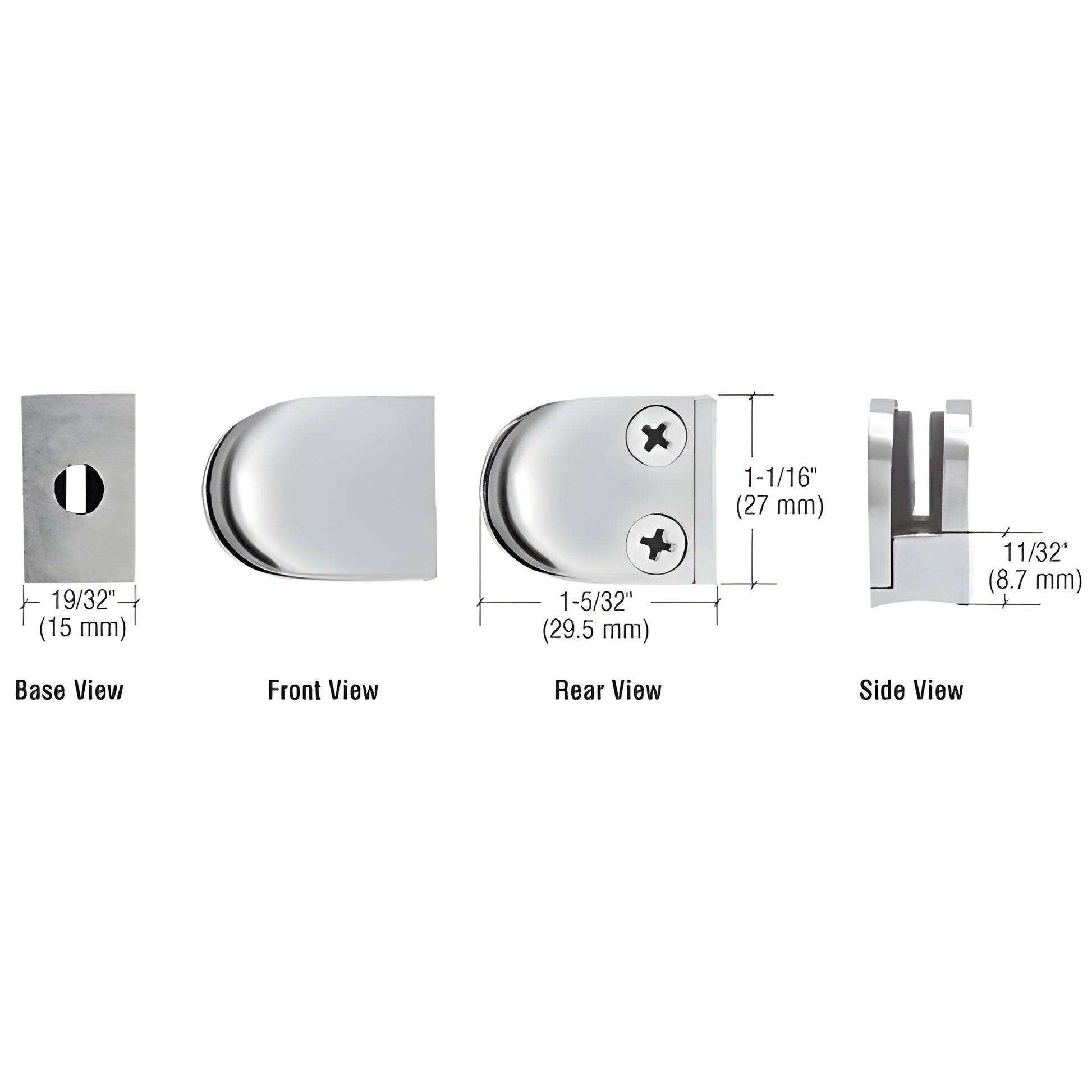

CRL Polished Stainless Steel Mini Z-Series Round Radius Glass Clamp
Item# ZMR06PS
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Radius
Depth
19/32 in. (15.1 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/4 in. (6 mm)
Height
1-5/32 in. (29.4 mm)
Material
Stainless Steel
Width
1-1/16 in. (27 mm)
- For 1/4" (6 mm) glass
- Fits 1" (25 mm) diameter tubing
- No-hole drilling — pressure fit replacement gasket
- Ideal for small glass barriers and mini z-clamp installations
CRL Replacement Gaskets for Mini Z-Clamps are molded to fit 1/4" (6 mm) thick glass and are compatible with Cat. Nos. ZMR06PS (SKU: ZMR06PS) and ZMR06BS Mini Z-Clamps. These pressure-fit gaskets provide a secure, non-invasive seal—no drilling required—making them ideal for retrofit and repair applications on glass partitions, small glass barriers, and mini z-clamp systems.
Replacement Hardware:
CRL P612 Replacement Screws
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and video card settings.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order replacement gaskets for ZMR06PS now to restore secure, no-drill glass clamping.
