CRL OXO Polished Stainless Steel Sliding Entrance System - 4" Tapered Rails
CRL OXO Polished Stainless Steel Sliding Entrance System - 4" Tapered Rails
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR3EPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
OXO
Door Type
Sliding
Finish/Color
Polished Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- 4" (102 mm) Tapered DR4T Series door rails — top and bottom
- Available in seven architectural finishes
The CRL SDR Bottom Rolling Sliding Door System features 4" tapered DR4T rails top and bottom and our Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4T Series rails are custom fabricated to your specifications for all door and fixed panels. Doors may be ordered with or without bottom-rail locks. Maximum door size: 48" (1.22 m) width × 108" (2.74 m) height; maximum weight: 234 lb (106 kg). Ideal for commercial and residential bottom rolling sliding glass doors requiring durable, architectural-grade components.
Specifications

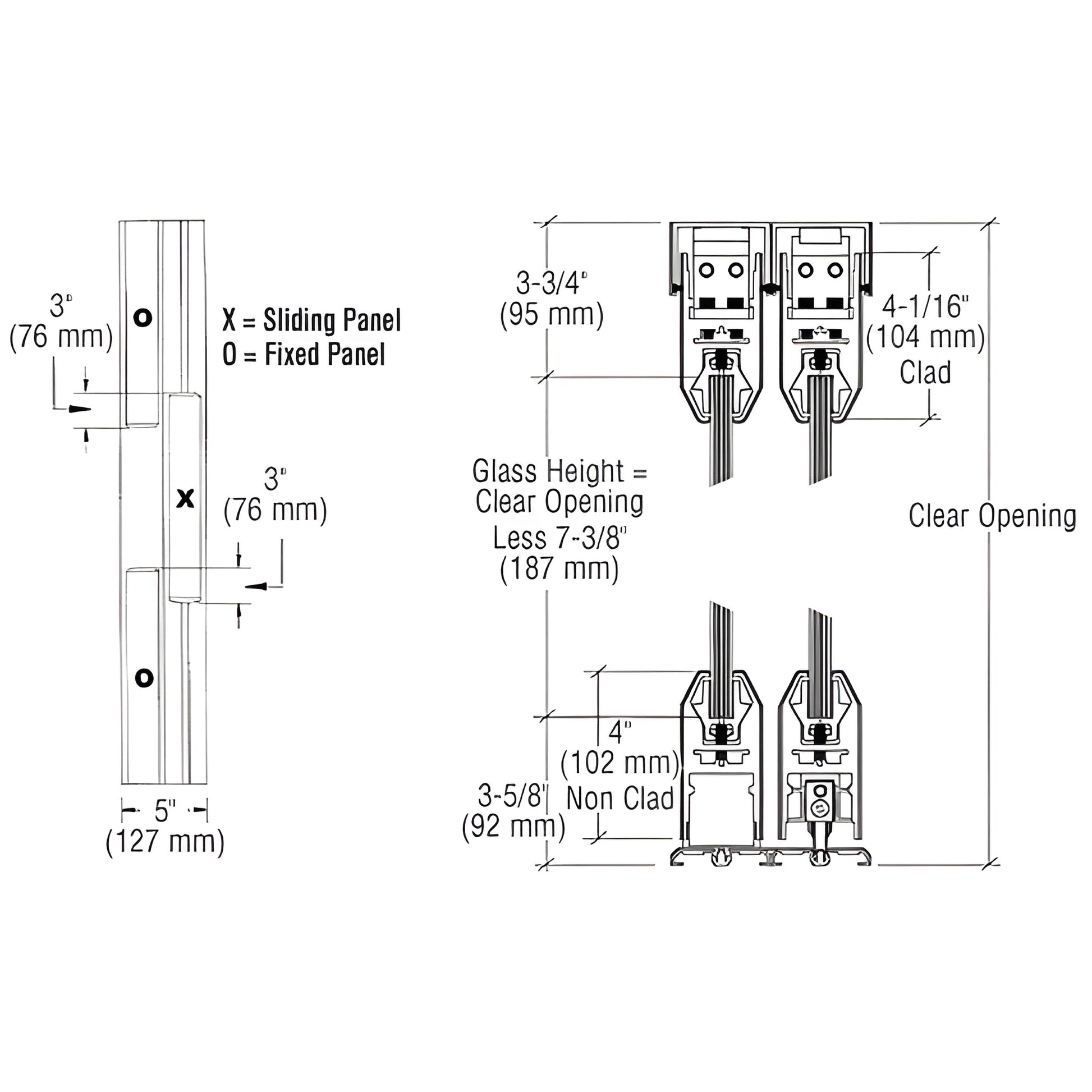

CAD Drawings - pdf
