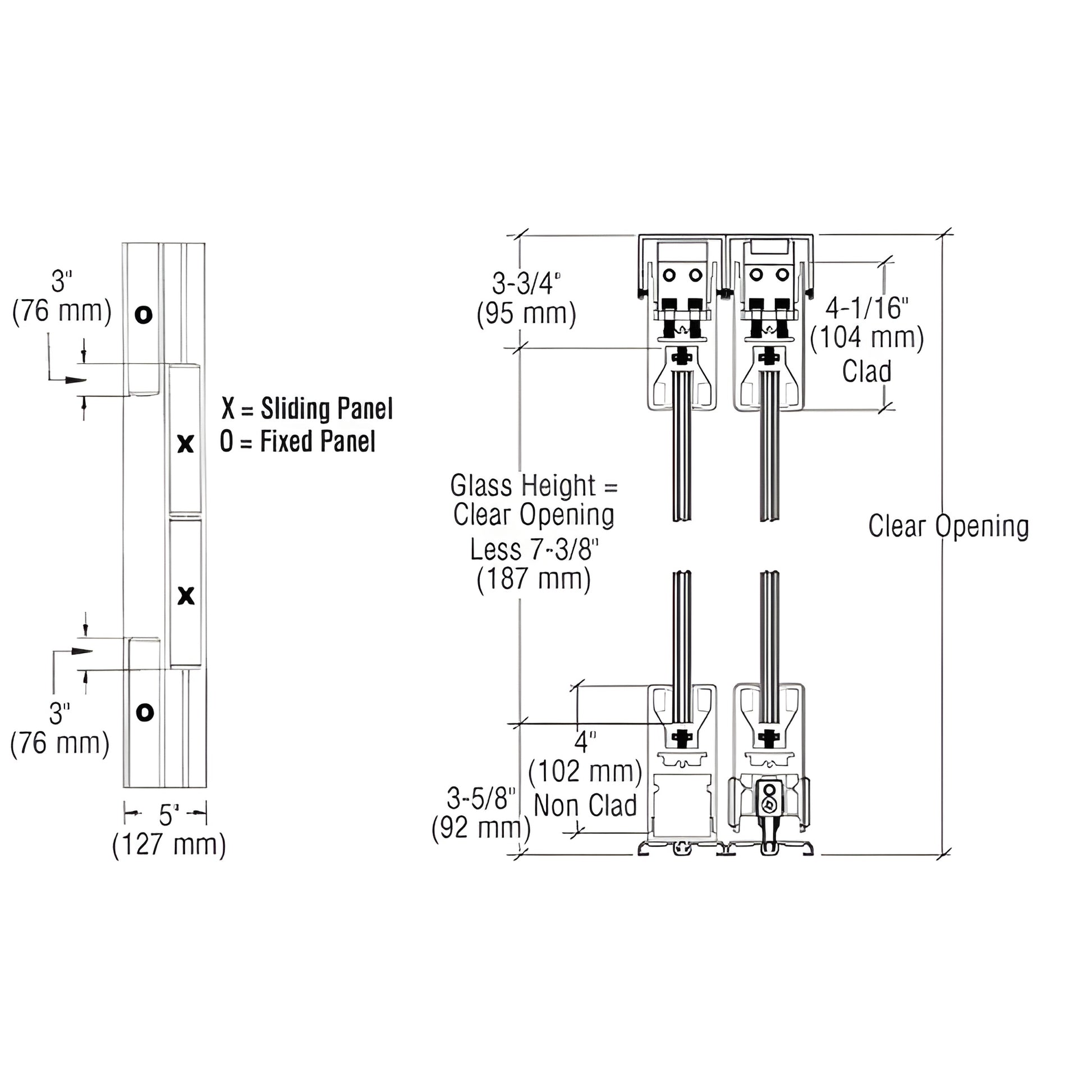

• CRL SDR bottom-rolling sliding door system, 4" square rails, polished stainless steel, OXXO 4-panel. SKU 4SDR4FPS
1 1

CRL

CRL OXXO Polished Stainless Sliding Door System - 4" Square Rails

CRL OXXO Polished Stainless Sliding Door System - 4" Square Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR4FPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR4FPS) features 4" (102 mm) Square Rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for reliable, tool-free glass retention. DR4S Series door rails are custom fabricated to your project specifications for commercial and residential bottom rolling sliding door applications. Doors are available with or without locks integrated into the bottom rail. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lbs. (106 kg). Ideal for custom bottom-rolling sliding glass doors and partition systems where heavy-duty performance and clean architectural finishes are required.

Most shipping weights are approximate and have not been verified. If exact shipping weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual products or close representations; colors may vary by monitor settings.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.

Discover durable, custom bottom rolling sliding door rails in seven architectural finishes—contact CRL to request a quote or technical support.
