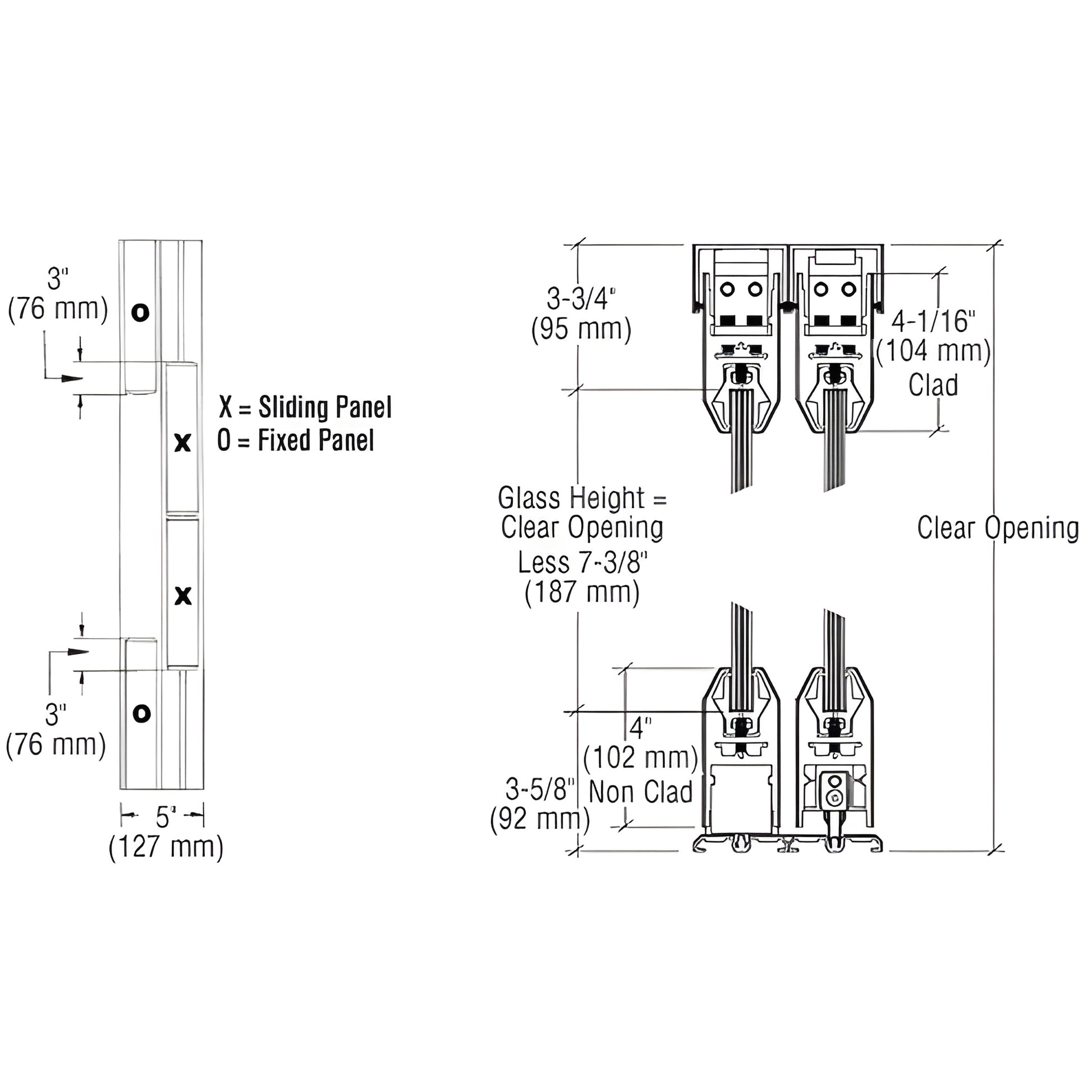

• SDR4FPS CAD drawing of CRL SDR bottom-rolling sliding door system, 4" tapered rails, cross-sections and dimensions.
1 1

CRL

CRL OXXO Polished SS Sliding Glass Entrance - 4in Tapered Rails

CRL OXXO Polished SS Sliding Glass Entrance - 4in Tapered Rails

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR4FPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Door Type
Sliding
Finish/Color
Polished Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR4FPS) features 4" (102 mm) tapered DR4T rails top and bottom and the proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4T Series door and fixed-panel rails are custom fabricated to your specifications and can be supplied with or without locks in the bottom rail. Ideal for commercial and architectural applications, this bottom rolling sliding door system supports maximum door widths up to 48" (1.22 m), heights up to 108" (2.74 m), and a maximum door weight of 234 lb (106 kg). The system’s seven architectural finishes provide coordinated options for storefronts, offices, and interior partitions.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and settings.


Order the CRL SDR Bottom Rolling Sliding Door System (SDR4FPS) today to get custom-fabricated 4" tapered rails and Wedge-Lock® glass security—contact CRL for a quote.
