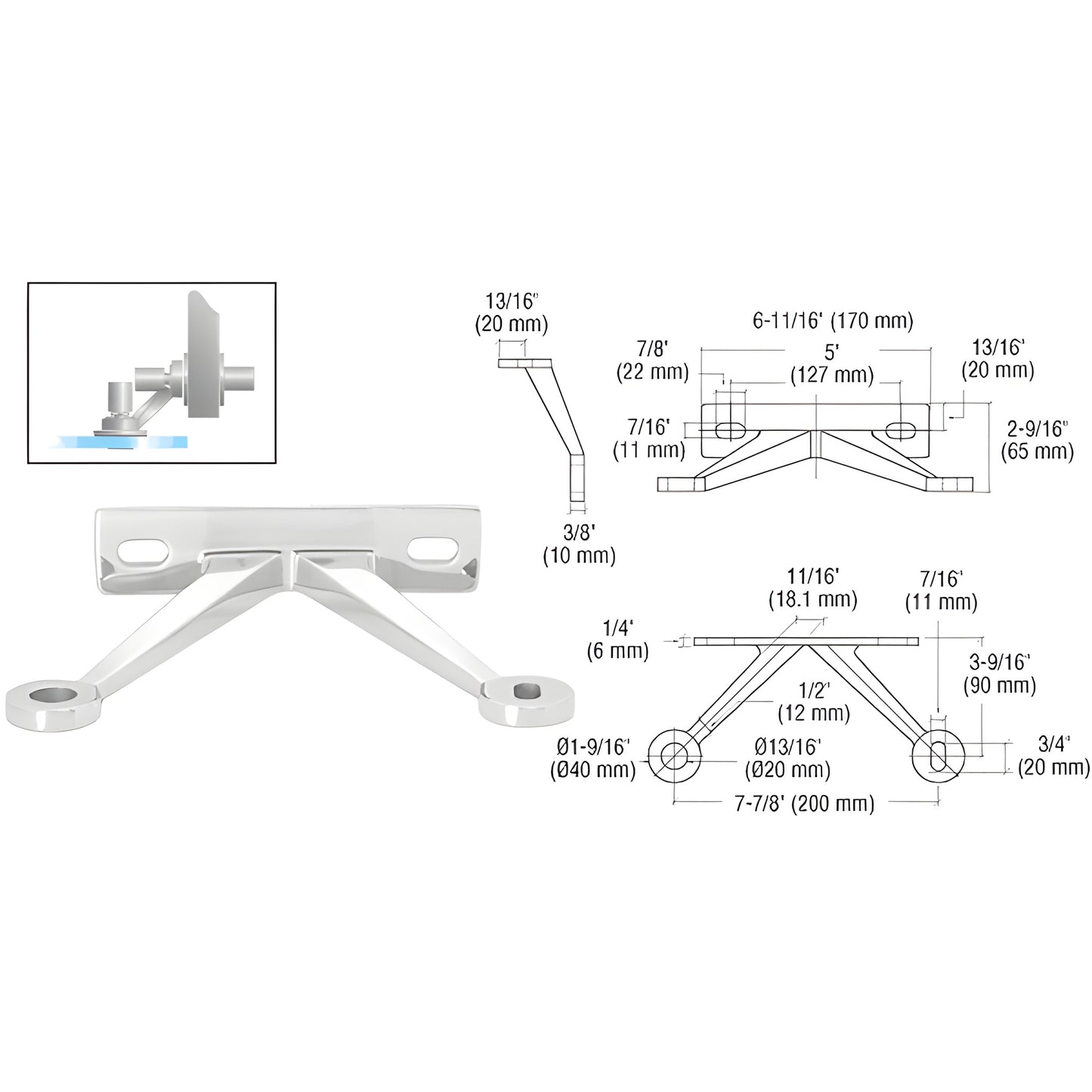

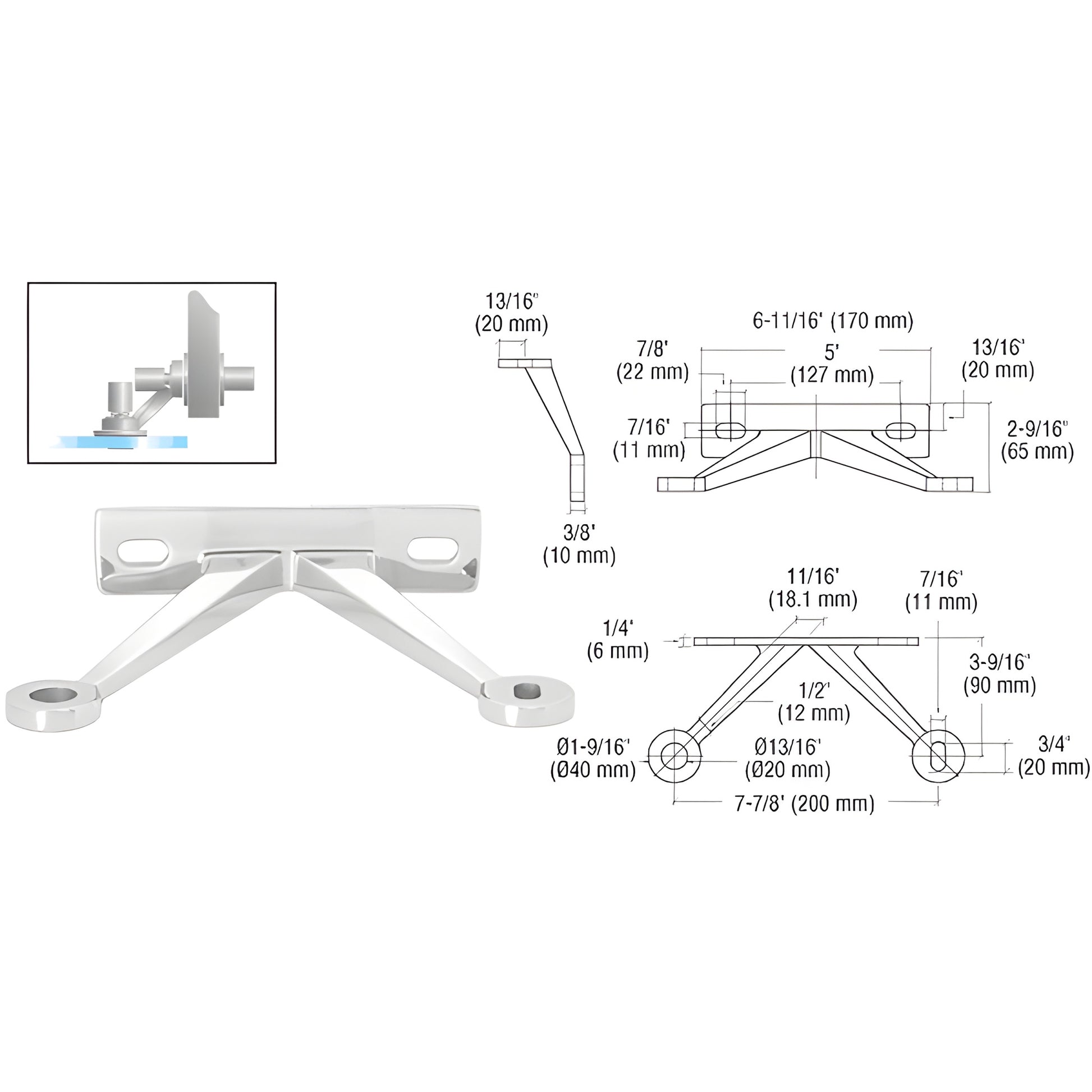

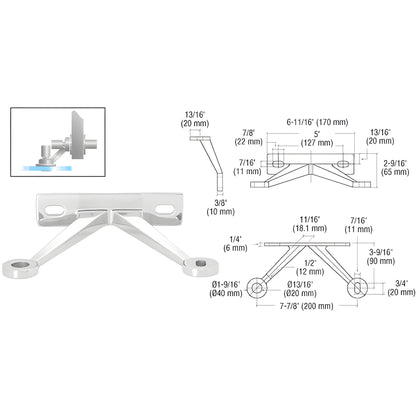

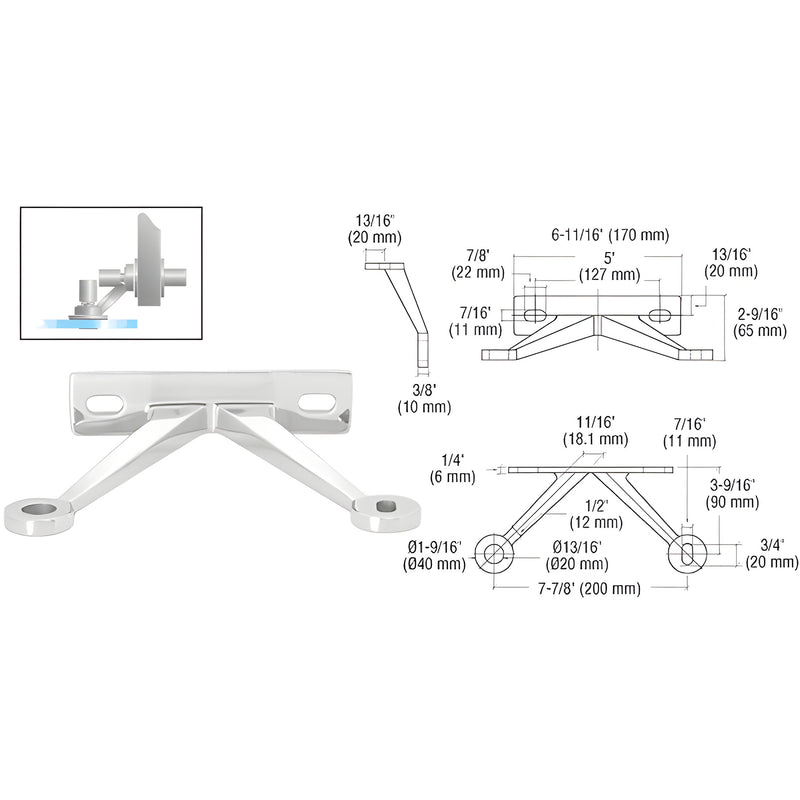

CRL Polished Stainless Regular Duty Spider Fitting Double Arm "V" Wall Mount Frame

• For Use with Glass 3/8" or 1/2" (10 or 12 mm) Tempered Glass or 9/16" (13.52 mm) Laminated Tempered Glass
• Complete with Hardware to Mount to Wall or Structural Fin
• Glass Attachments Sold Separately
• Use Monolithic Tempered Glass

This

CRL Fitting

is used to attach a single glass panel to a wall or structural fin. Comes with two M10-1.5 x 65 mm (2-9/16") stainless steel threaded studs and four matching cap nuts with washers. Replacement Stud Set is available.

For companion fittings use Cat. No. FMR1LHBS, FMR1LHPS, FMR1RHBS, FMR1RHPS, FMR4BS or FMR4PS Fittings.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
