Product Details
- Unique "I Beam" Header Style Adds Rigidity to Enclosure
- Designed for Full Standing Showers or Above Bathtubs
- Adjustable Height Header is Clad in Attractive Polished or Brushed Stainless Steel
- Accommodates 5/16" (8mm) Thick Tempered Safety Glass (Not Included)

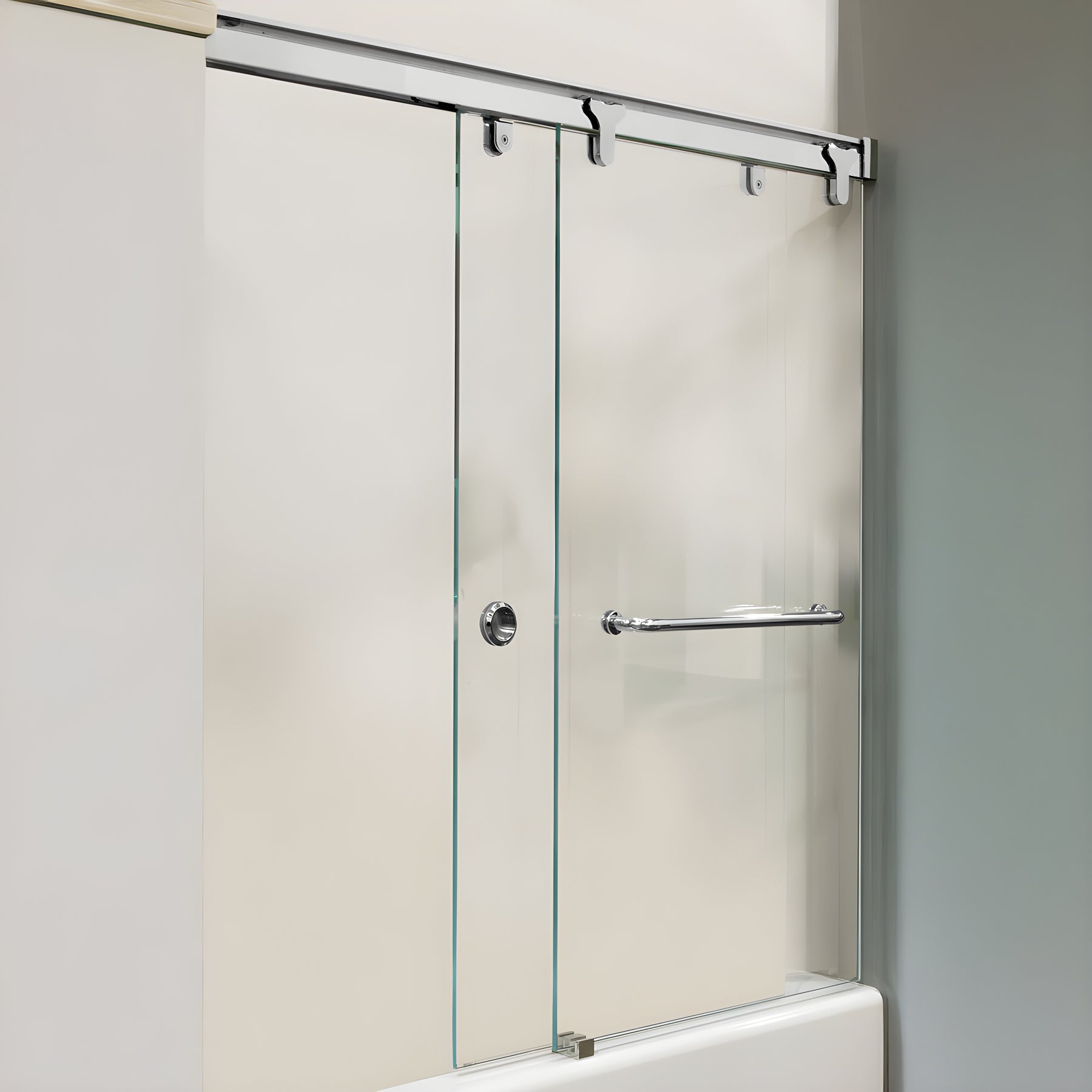

The NEW Contempo Series "I Beam" Bypass Sliding Shower Door System will be the focus of any bathroom in which it appears. Contempo has the flexibility to be installed either in a full standing shower, or above a bathtub. The Header is clad in polished or brushed stainless steel to present an elegant appearance. The Contempo Series has two stainless steel rollers per door to assure a smooth, gliding opening and closing of the bypassing doors using only fingertip control. The “adjustable height" header is the installer’s friend, allowing wiggle room for installation. Complete kits include: 73" (1854 mm) length header; 4 each rollers; 2 each stoppers; 2 track holder fittings for the wall; 1 each bottom guide; 85" (2159 mm) clear L-Jambs; 1 each 73" (1854 mm) threshold. The Contempo Series Sliding System accommodates 5/16" (8 mm) thick tempered safety glass (not included). A 90 Degree Accessory Kit is available for enclosures with a return panel.
SPECIFICATIONS
Glass Thickness: 5/16 (8 mm) - Not Included
Material: Stainless Steel "Cladded" Header
Maximum Door Size: 37" (940 mm) Wide or 84 Pounds (38 kg) for Each Door - Do Not Exceed Either Width or Weight
Glass Fabrication Required: One 1/2" (12 mm) Diameter Hole Per Hanger

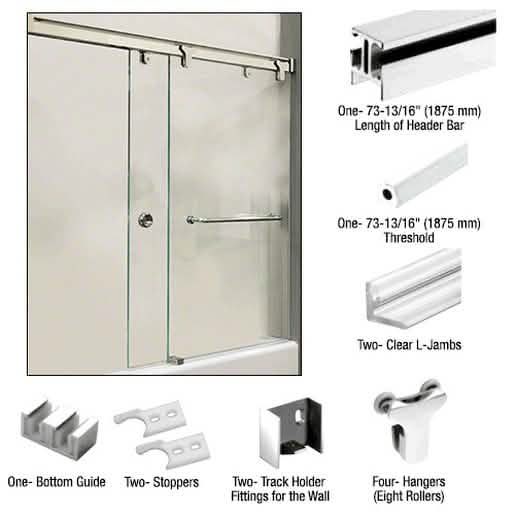

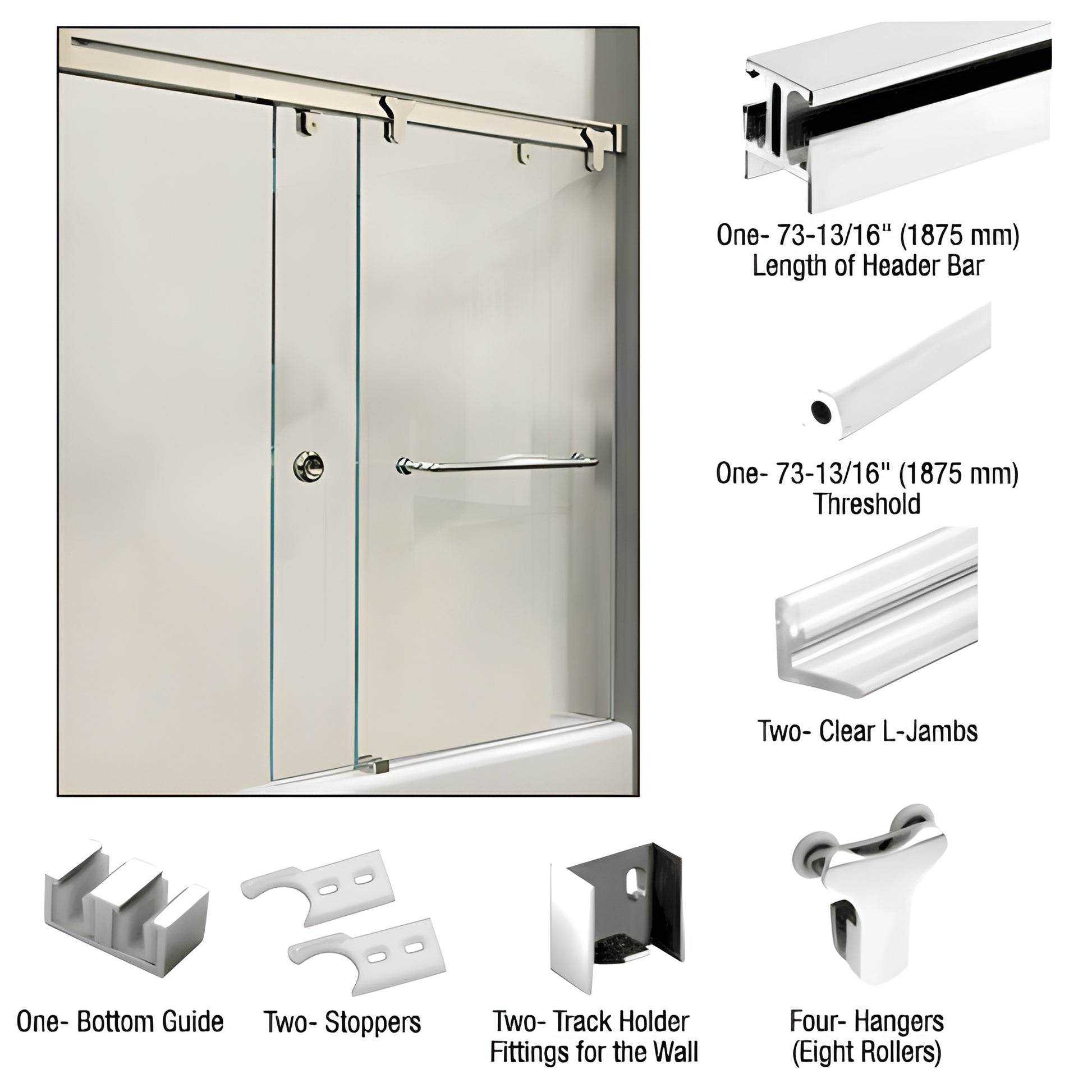

STANDARD 180 DEGREE KIT INCLUDES
One - 73" (1854 mm) Length "I Beam" Header Bar
Four - Hangers
Two - Stoppers
Two - Track Holder Fittings for the Wall
One - Bottom Guide
Two - 85" (2159 mm) Clear L-Jambs
One - 73" (1854 mm) Threshold
Product Warning:
Please order handle or towel bars separately
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
