CRL 90° Polished Stainless Steel Glass-to-Glass Clamp for Shower

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Secures fixed panels of glass in frameless shower enclosures
• Cleaner "all-glass" appearance compared to U-channel
• Glass fabrication required to accommodate clamps
• Use monolithic tempered glass

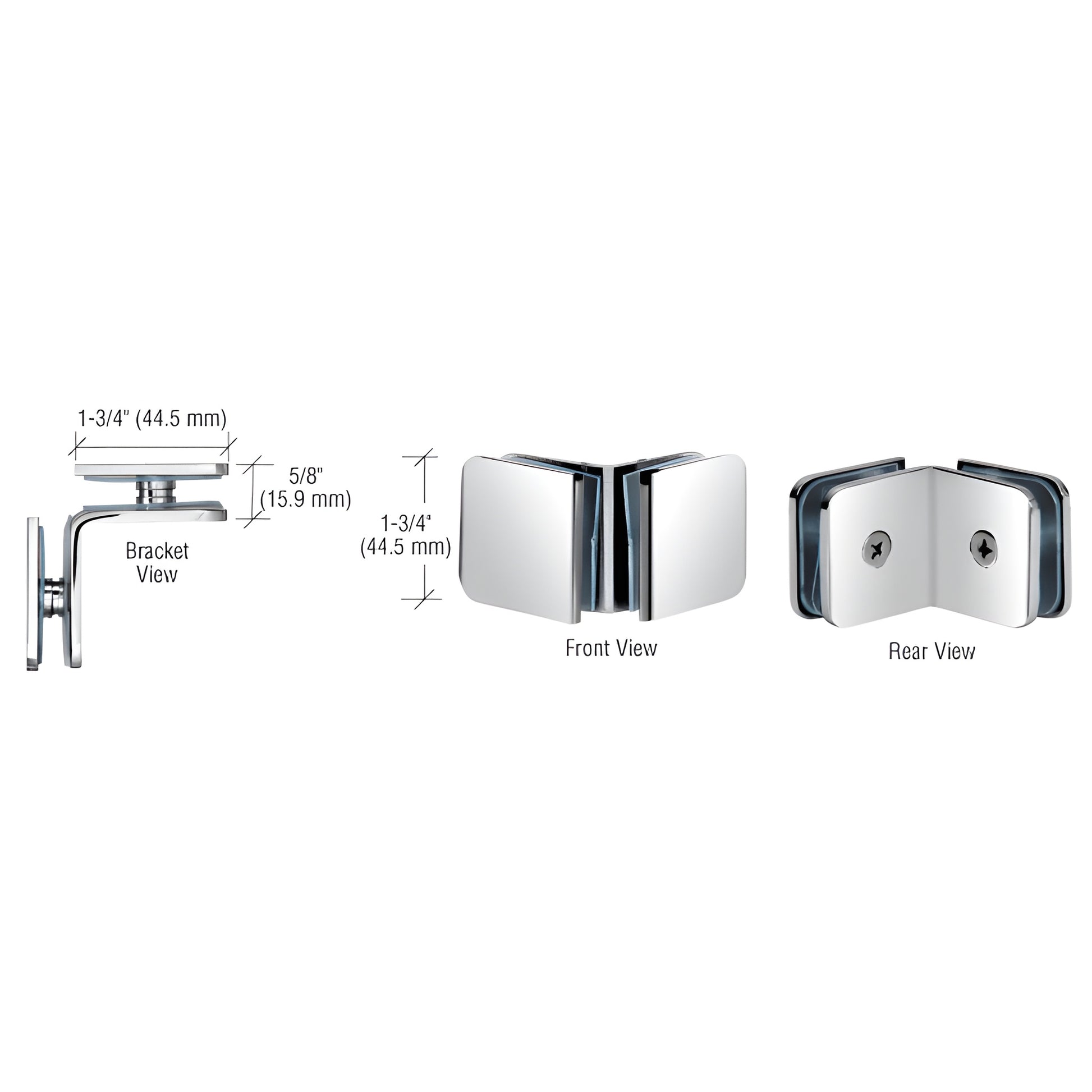

A versatile CRL Standard 90 Degree Glass Clamp (SKU: GCB90PS) designed for frameless shower applications. Use as a 90° clamp for vertical fixed panels or as a bracket for horizontal glass shelves. The clamp design allows for flush mounting of a shelf to the wall or for adjoining panels to meet with a minimal gap—ideal when you need a low-profile 90 degree glass clamp or a solid brass glass shelf bracket.

Our solid brass and stainless steel Traditional Glass Clamps secure glass panels in contemporary frameless shower enclosures while maintaining a clean, all-glass look. These clamps are an attractive alternative to U-channel and are available in finishes that coordinate with our shower door hinges. Appropriate mounting screws and one set of clear gaskets are included. Extra Cat. No. UCG77 clear gaskets available separately.

SPECIFICATIONS:
Materials: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Clear gaskets and wood screw for wall-mount application
Replacement Hardware: CRL P612 replacement screws
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Stainless Steel Advisory:

Order the GCB90PS 90 degree glass clamp for frameless showers today—add a clean, low-profile finish to your enclosure.
