CRL Polished Stainless Steel Glass Door Passage Latch

• Works on single or double glass doors
• Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• 304 grade stainless steel construction for commercial glass doors
• Designed for monolithic tempered glass applications

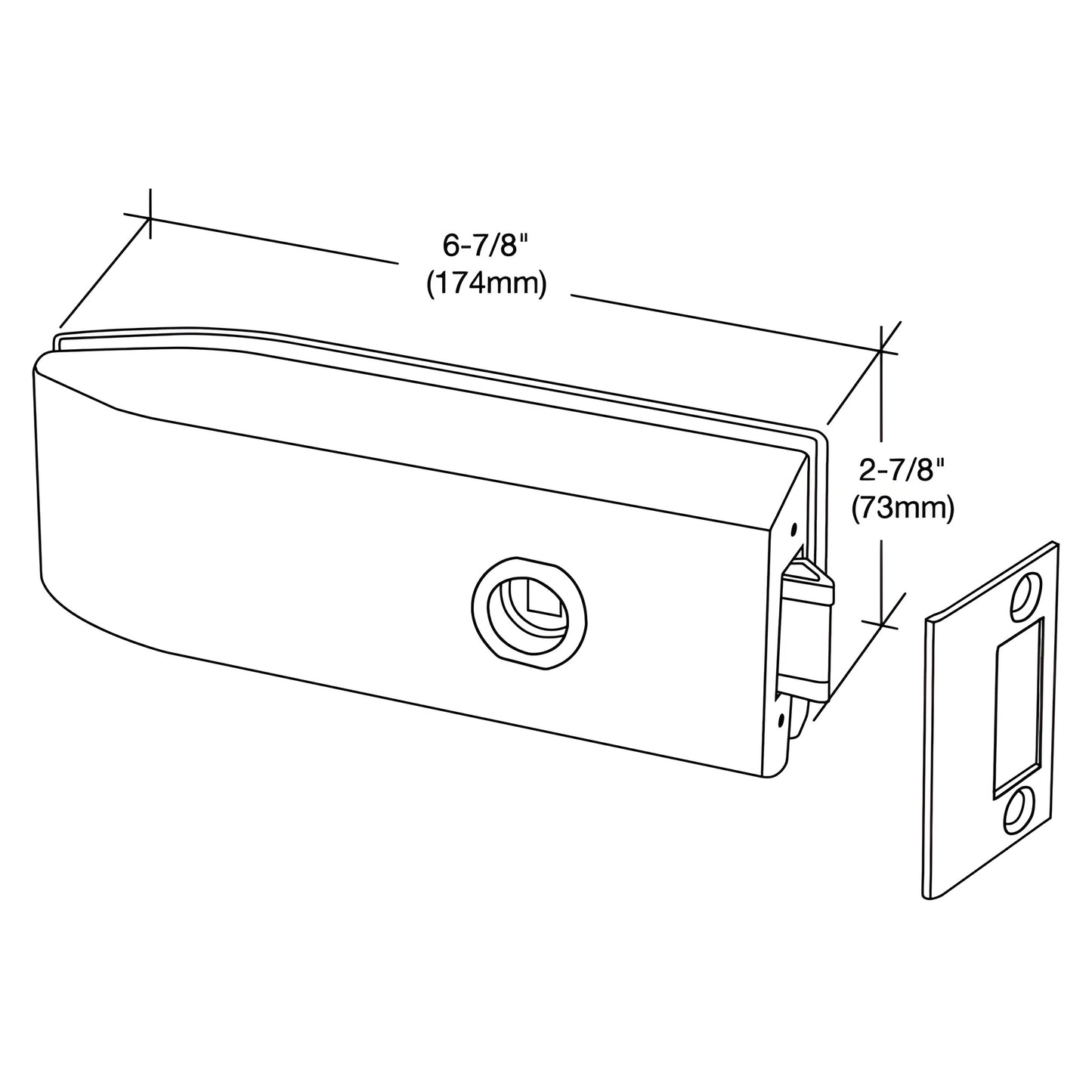

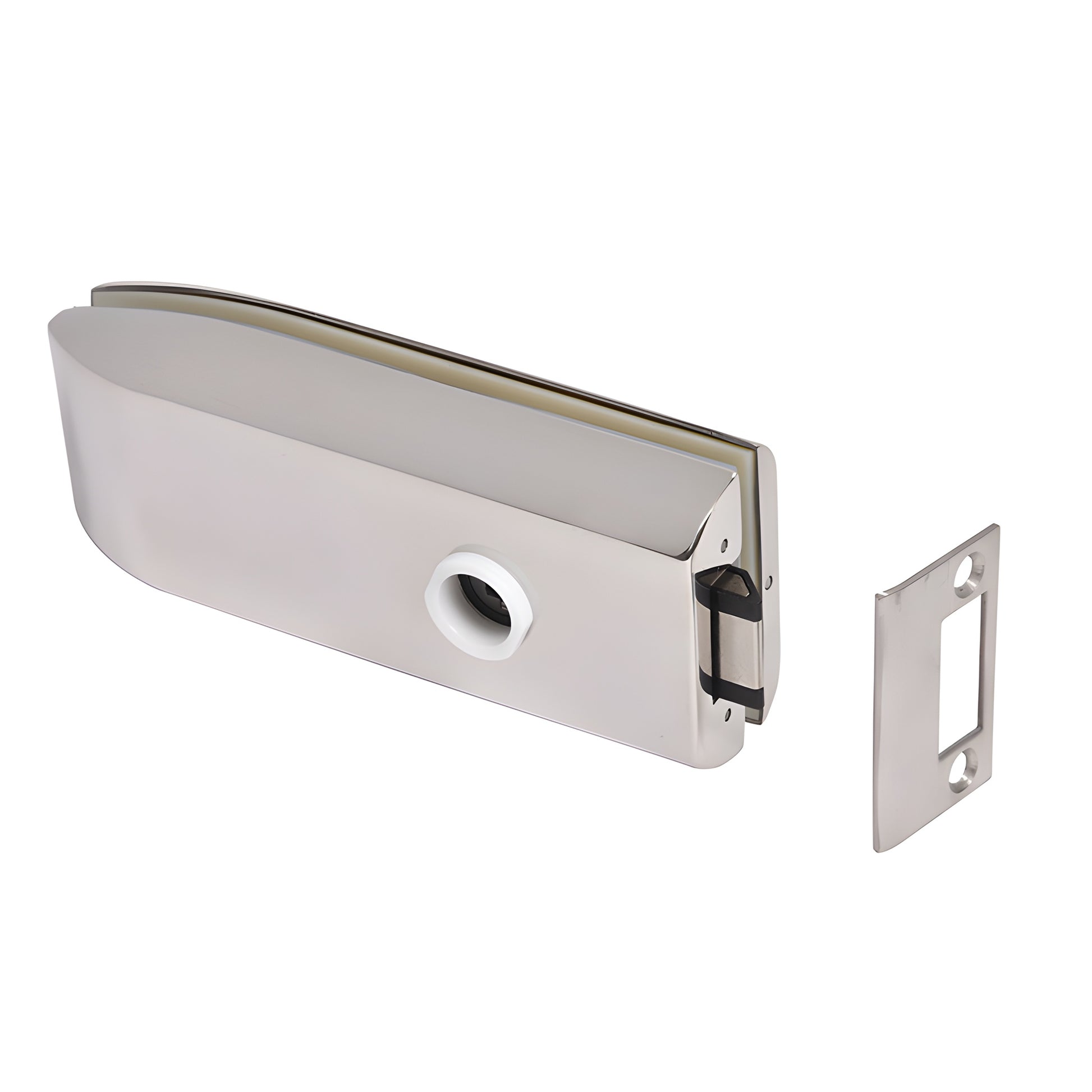

The CRL PTH311 Glass Mounted Latch is a glass-door latch for commercial and residential tempered glass doors. It ships assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors that do not use a PTH314 Glass Mounted Latch Keeper. For inswing doors that use the PTH314 keeper, the EC3 extended-length keyed cylinder is required.

NOTE: On double-door installations, the door with the keeper should be secured at the bottom with a separate lock to hold it in place.

GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass.

COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, drilling template, and instructions.

Stainless Steel Advisory:

Ideal for glass door security and keyed latch solutions—order now or contact customer service for installation guidance.
