Product Details
- With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
- Available in Seven Architectural Finishes

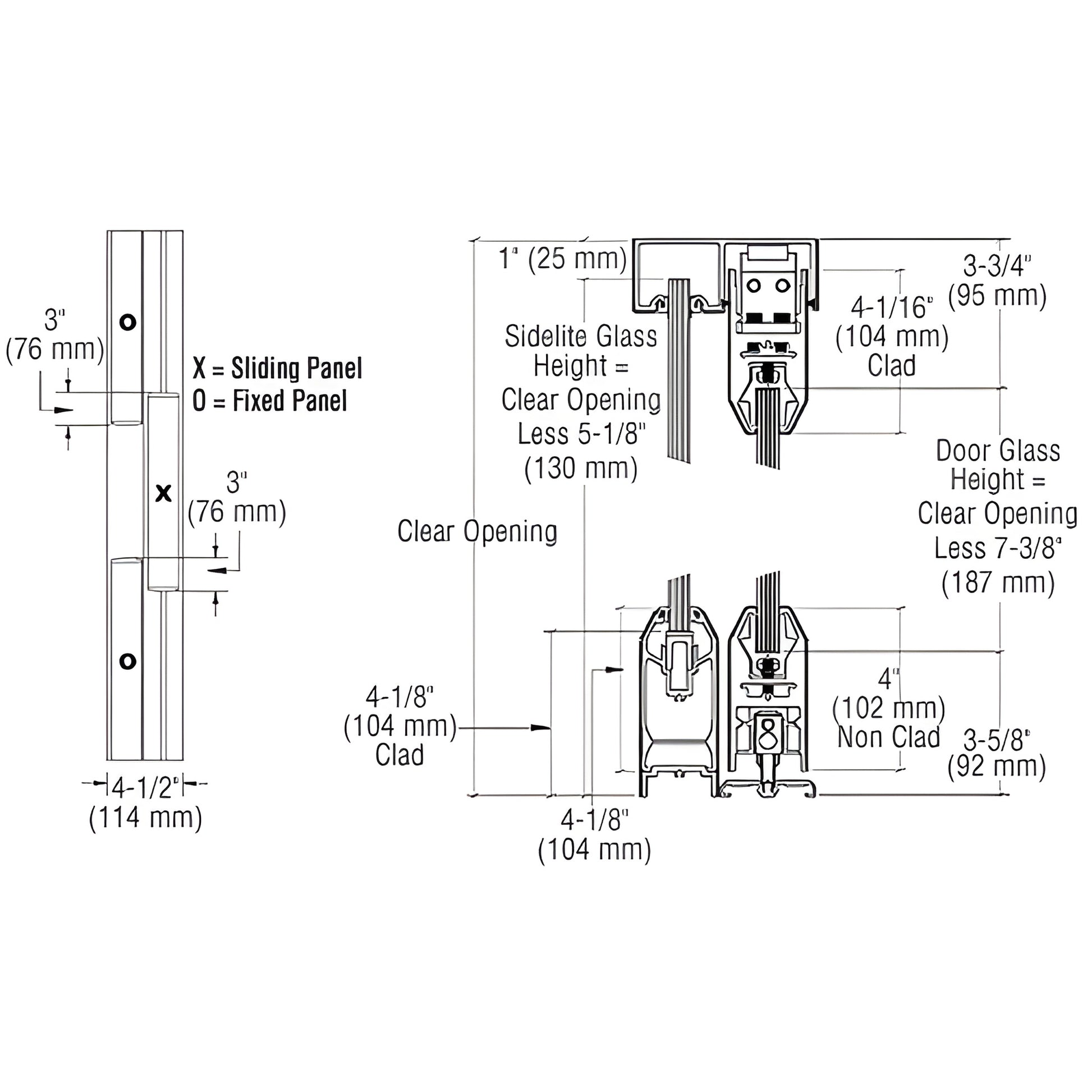

The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4T Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
The fixed panels utilize our popular SR4T Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 lbs. (106 kg). All panels are custom fabricated to your specifications.
