CRL Polished Stainless Steel SSR Bottom-Rolling Sliding Door Hardware

CRL Polished Stainless Steel SSR Bottom-Rolling Sliding Door Hardware

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SSR4FPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
OXXO
Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)

Overview

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

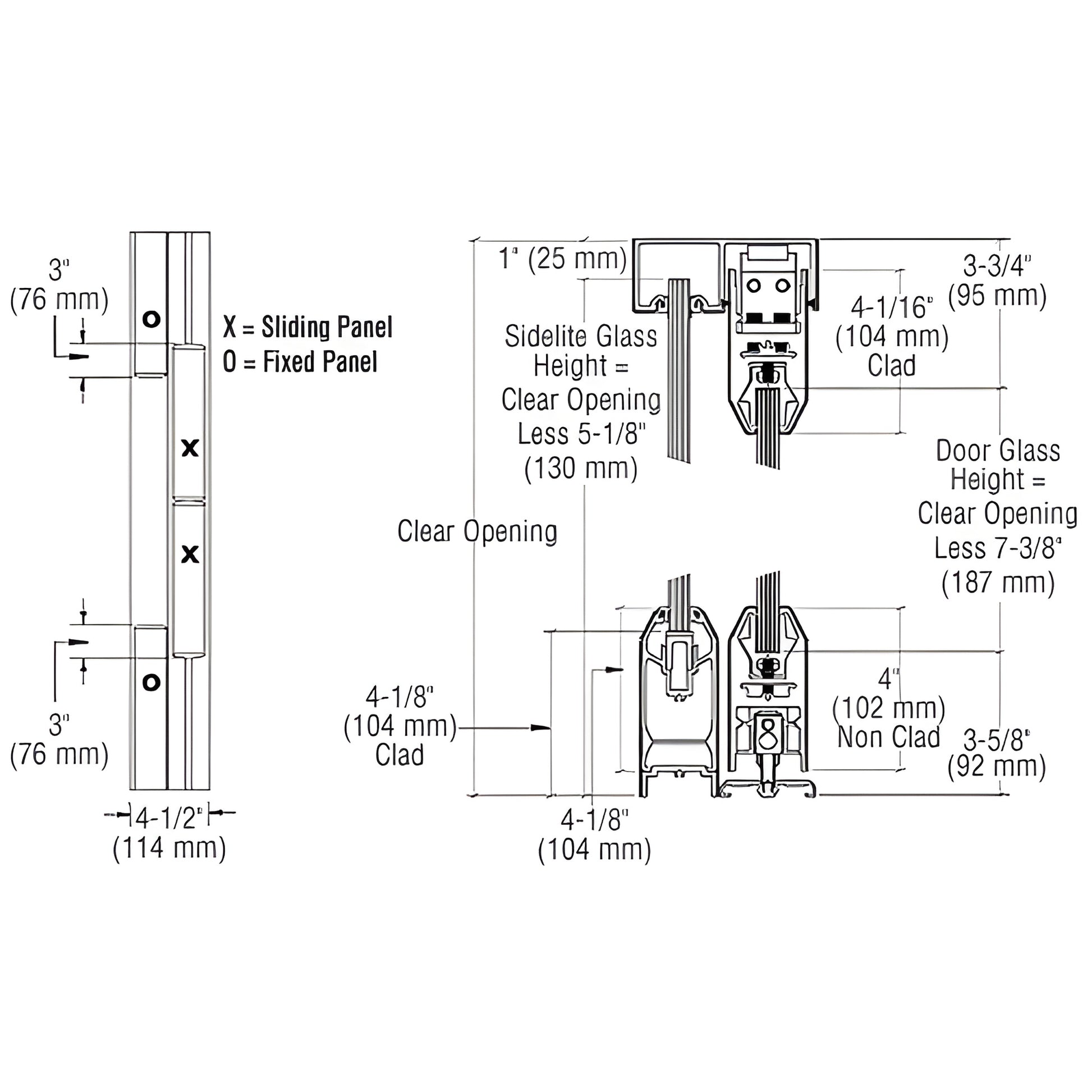

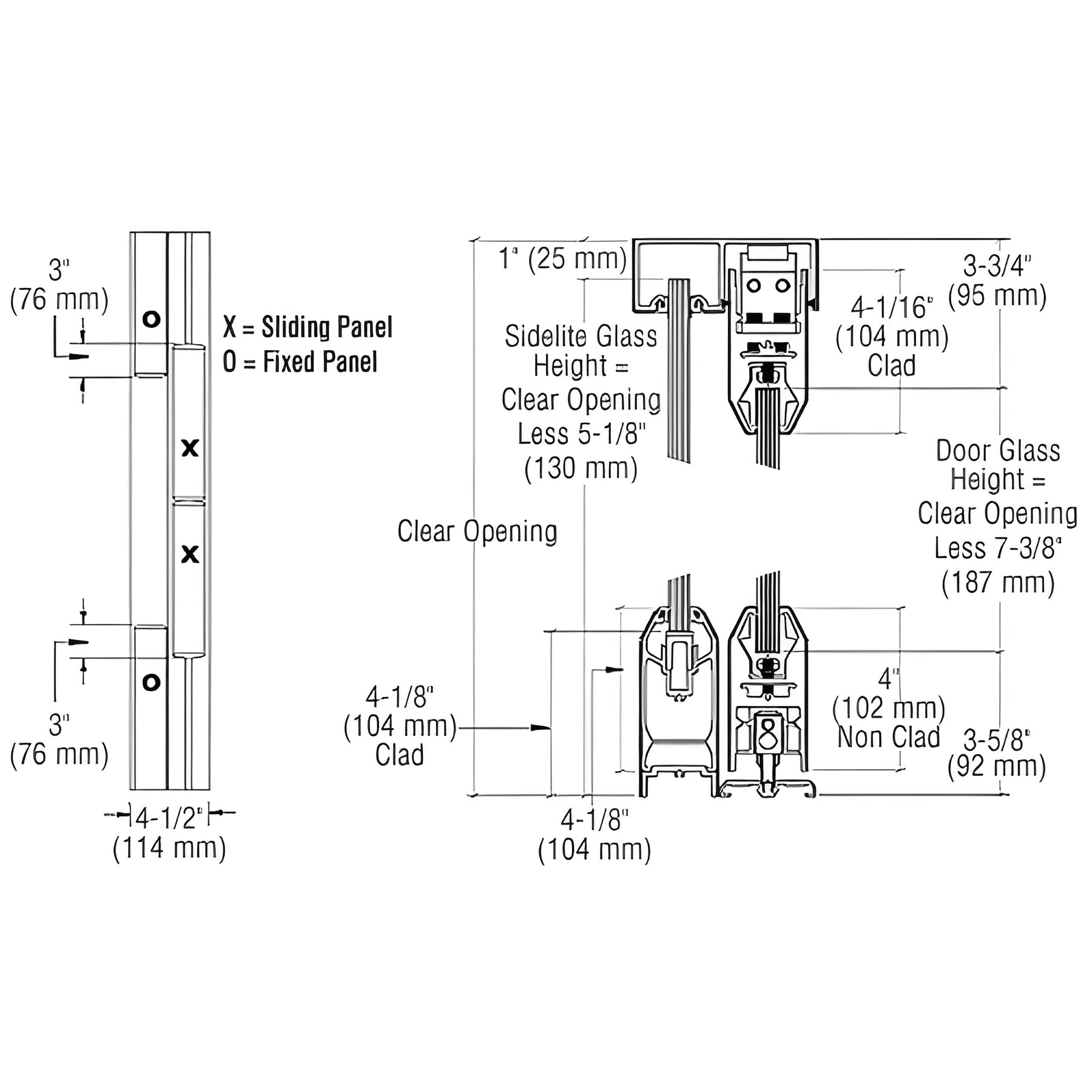

The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR4FPS) features 4" (102 mm) tapered rails and the Wedge-Lock® Glass Securing System used in the DR4T Series door rails on all sliding panels. Bottom rails are available with or without locks.


Fixed panels use SR4T Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications. Ideal for architects and contractors specifying a bottom rolling sliding door system with tapered rails and secure wedge-lock glazing.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order or request a quote for SSR4FPS from CRL Customer Service today.
