CRL SSR Polished Stainless Steel Bottom-Roll Sliding Door Hardware

CRL SSR Polished Stainless Steel Bottom-Roll Sliding Door Hardware

$0.00 CAD
$0.00 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SSR2CPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
XO/OX
Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Material
Aluminum
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Minimum Door Width
234 in. (5944 mm)

Overview

  • With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
  • Available in Seven Architectural Finishes

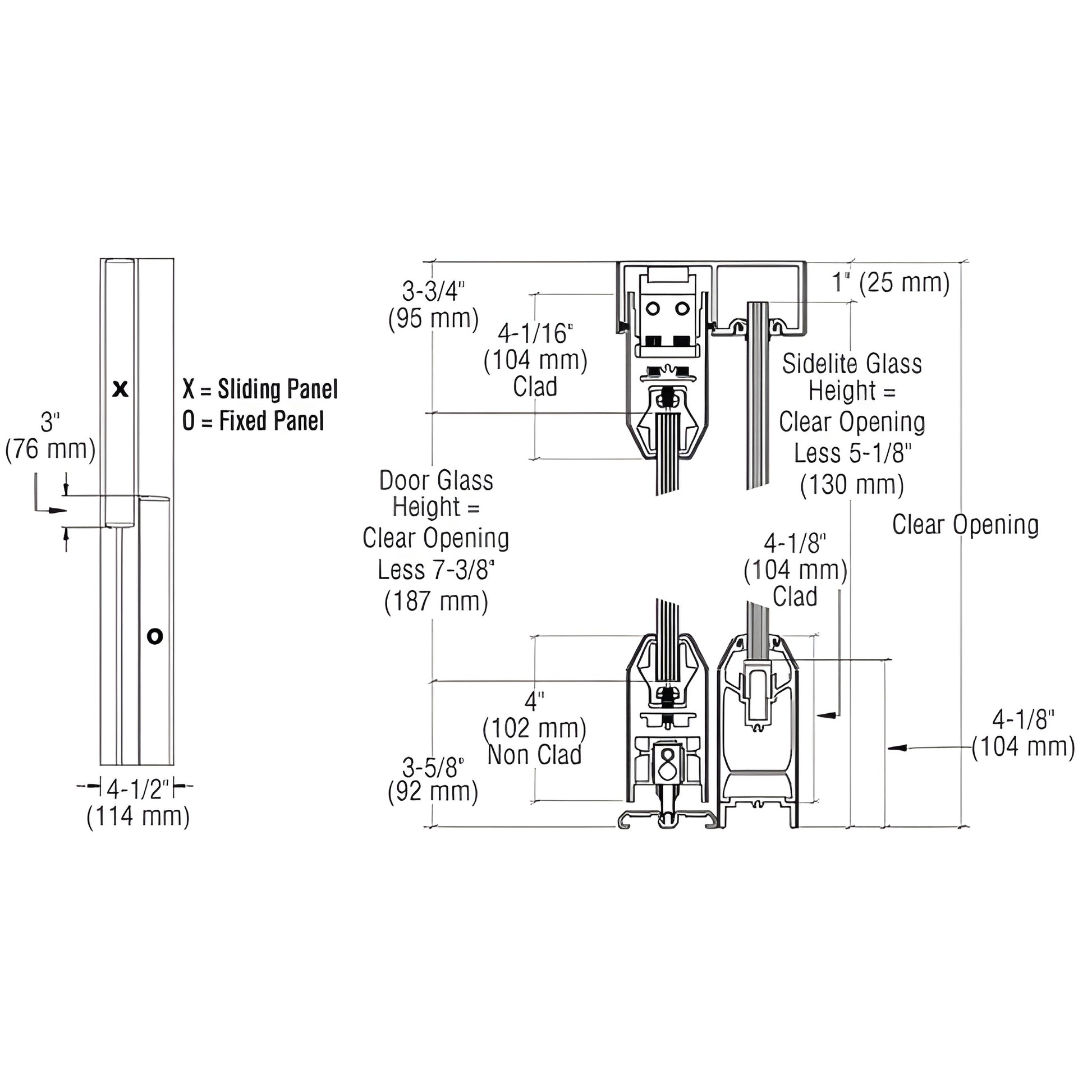

The CRL SSR Bottom Rolling Sliding Door System (SKU: SSR2CPS) features 4" (102 mm) tapered rails and the Wedge-Lock® Glass Securing System used on DR4T Series door rails for secure, tool-free glass retention. Bottom rails for sliding panels can be specified with or without locks.

Fixed sidelites use SR4T Series sidelite rails with roll-in vinyl at the bottom and an integrated glazing channel with roll-in vinyl in the top track for smooth operation and improved weather resistance. Maximum single door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum panel weight: 234 lb (106 kg). All panels are custom fabricated to your specifications for precise fit and finish.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.
