CRL Stainless Glass U-Channel w/ Top-Load Gasket 3/8–1/2" Custom
CRL Stainless Glass U-Channel w/ Top-Load Gasket 3/8–1/2" Custom
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH2PSCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

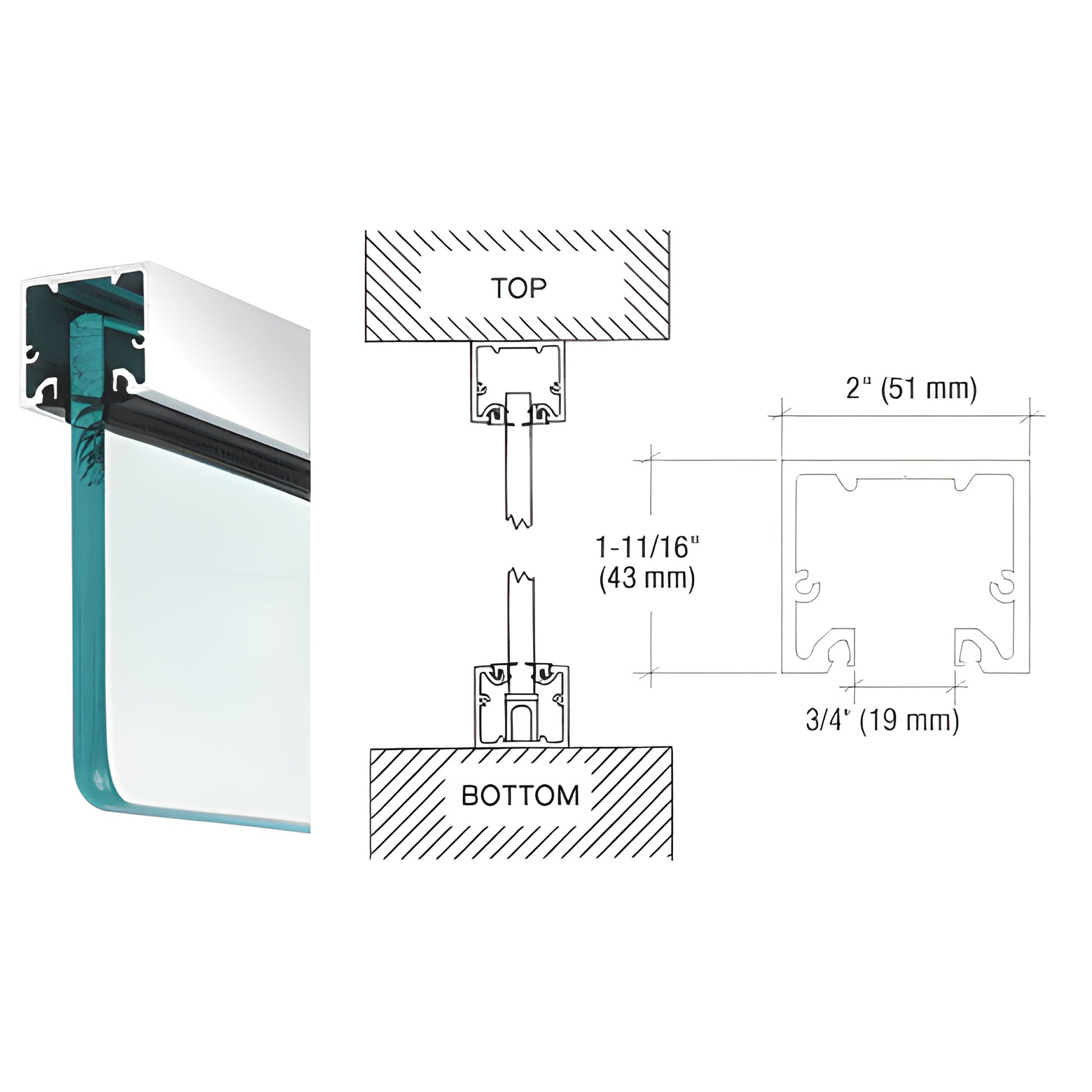

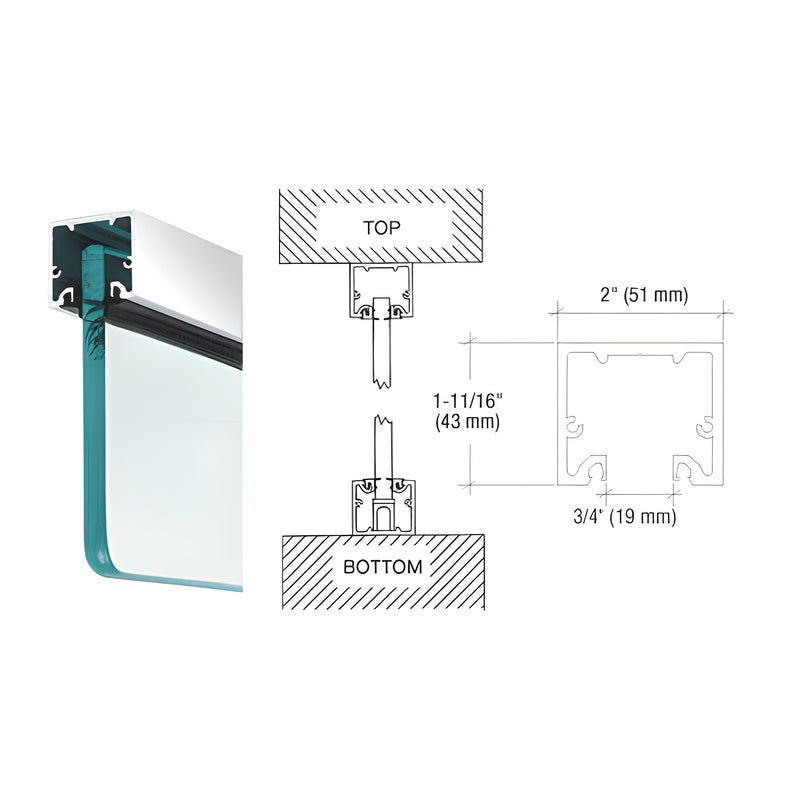

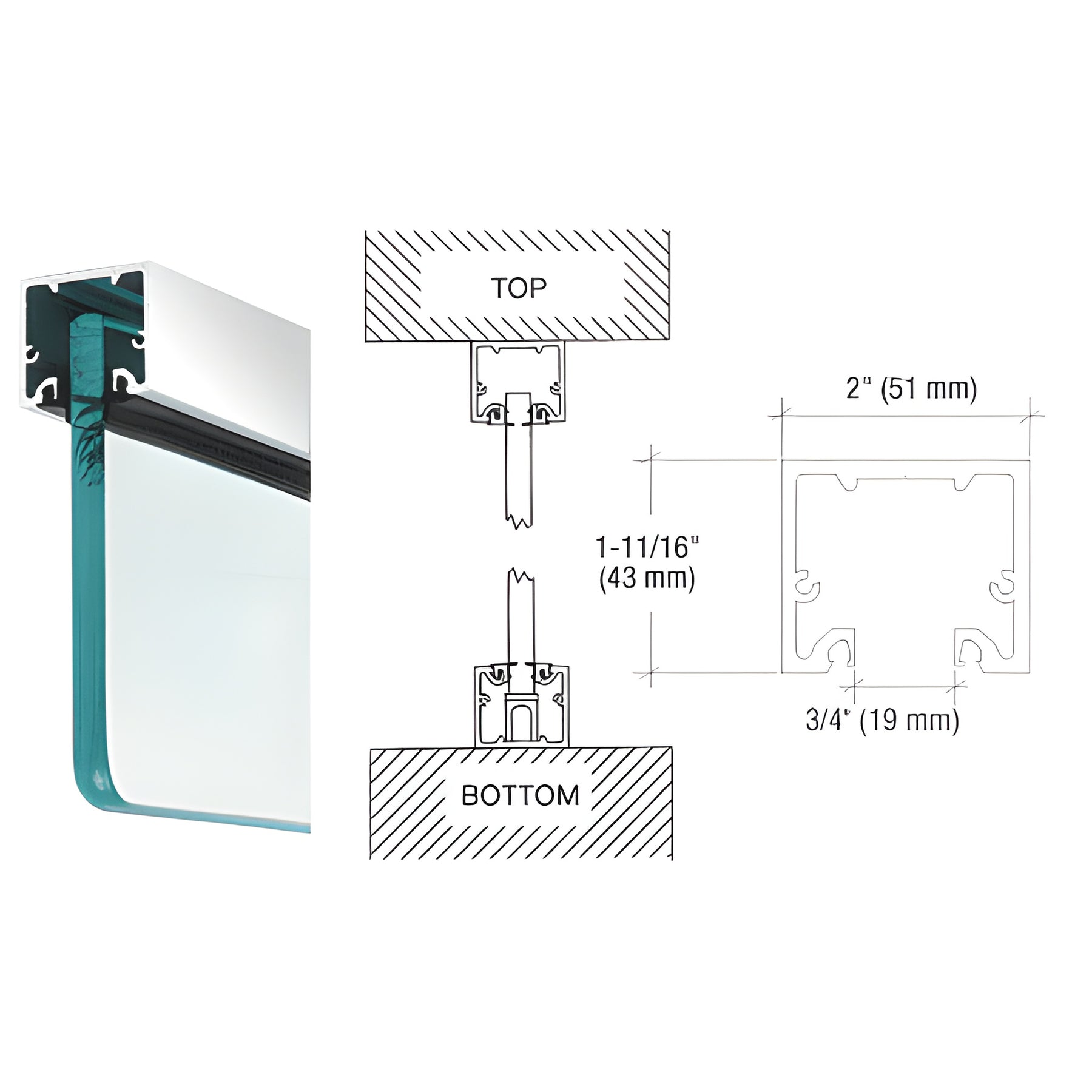

Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
1-11/16 in. (43 mm)
Length
Specify
Width
2 in. (51 mm)
Overview
- Matches the width of sidelite and door rails and accepts roll-in gasket, top pivot block, and flush snap-in insert
- Available in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when using the sidelite rail with the narrow header
CRL Wide U-Channel and Narrow Header (SKU: NH2PSCL) is engineered for three primary glazing applications: as a wide U-channel matching our Sidelite and Door Rails, as a narrow header that accepts a top free‑swinging pivot to secure door tops, and as an even sight line system by fastening the fabricated narrow header to the opening and attaching the sidelite rail with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate field fabrication. For technical assistance, contact the CRL Technical Sales Department.
Order the NH2PSCL narrow header and wide U-channel today or contact CRL for a quote and installation guidance.
Specifications
CAD Drawings - dwg
