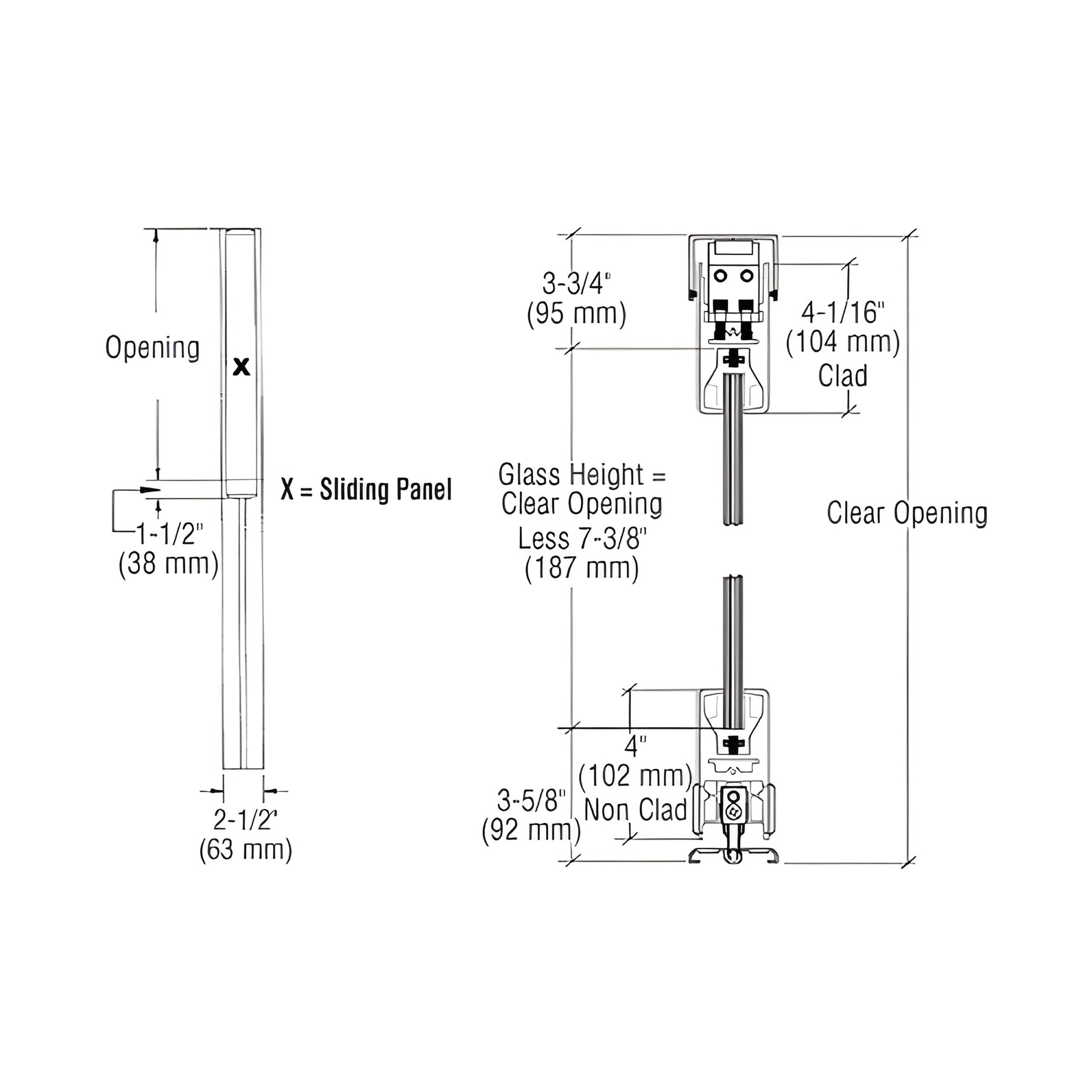

• CRL SDR bottom-rolling sliding door system technical drawing - 4" polished stainless steel square rails, dimensional specs.
1 1

CRL

CRL Polished Stainless Sliding Entrance System - 4 in Top/Bottom Rail

CRL Polished Stainless Sliding Entrance System - 4 in Top/Bottom Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR1APS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: 4SDR1APS) features 4" (102 mm) square top and bottom rails and the proven Wedge-Lock® Glass Securing System for secure, low-profile glass retention. DR4S Series rails are custom fabricated for door and fixed panels and can be supplied with or without a bottom-rail lock to suit commercial and residential sliding glass door applications. Maximum single door size: 48" (1.22 m) wide by 108" (2.74 m) high; maximum weight: 234 lb (106 kg). Ideal for projects specifying bottom-rolling sliding door hardware, custom square-rail sliding doors, or architectural finish options.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.

For custom quotes, finish options, or to request exact shipping weights, contact CRL Customer Service to order your CRL SDR Bottom Rolling Sliding Door System today.
