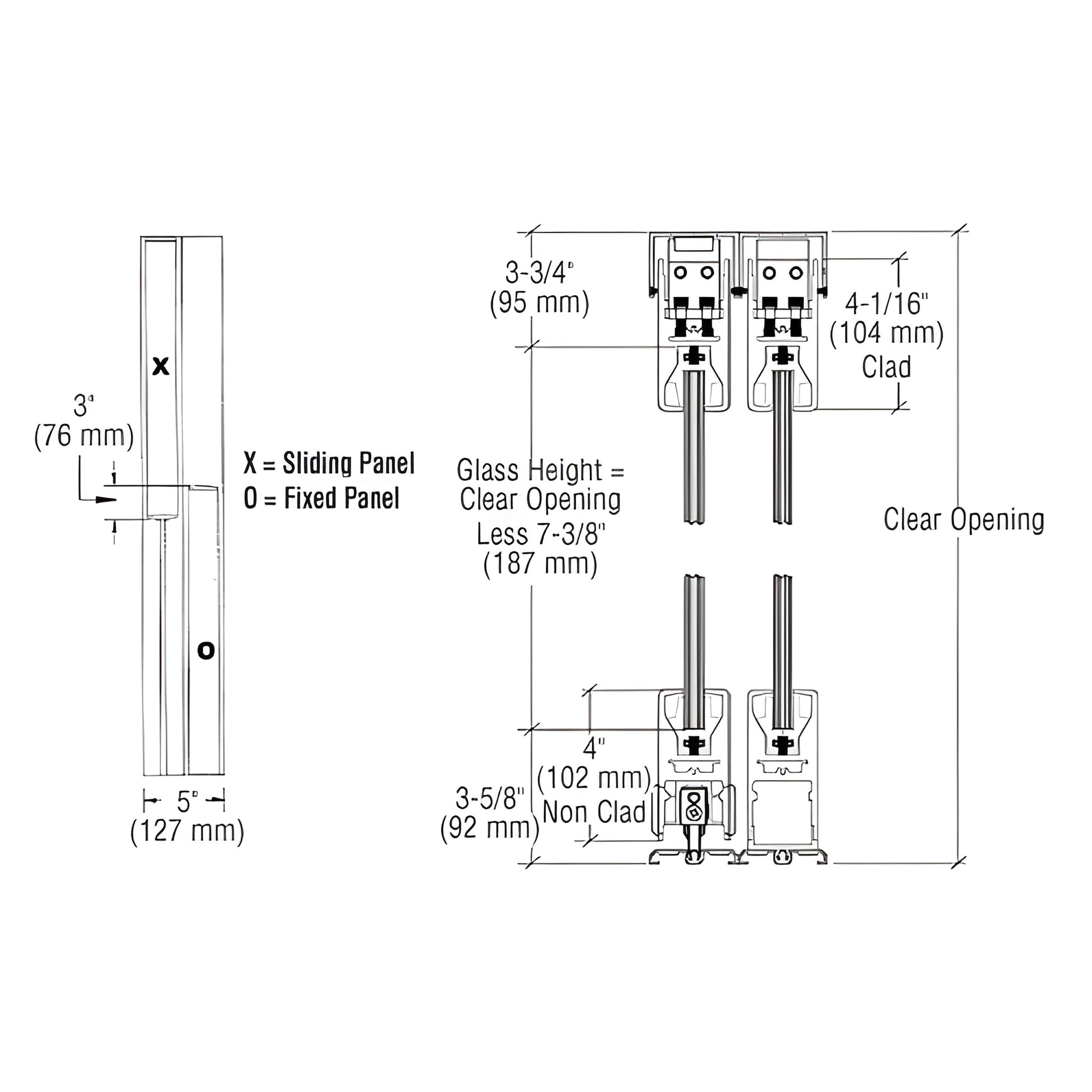

• CRL SDR bottom-rolling sliding door system diagram, polished stainless steel 4" square rails, max 48x108 in, SKU 4SDR2CPS
1 1

CRL

CRL Polished Stainless XO/OX Sliding Door System - 4" Square Rail

CRL Polished Stainless XO/OX Sliding Door System - 4" Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR2CPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • With 4" Square DR4S Series Door Rails — ideal for bottom rolling sliding door systems
  • Available in Seven Architectural Finishes for commercial and residential applications

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails top and bottom uses the Wedge-Lock® Glass Securing System for secure, tool-free glass retention. DR4S Series door rails are custom fabricated to your specifications for use on all door and fixed panels. Doors may be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m); maximum weight not to exceed 234 lb (106 kg). SKU: 4SDR2CPS.

Shipping weights are approximate and unverified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images represent the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidelines.

Call CRL Customer Service to confirm specifications or to place a custom order.
