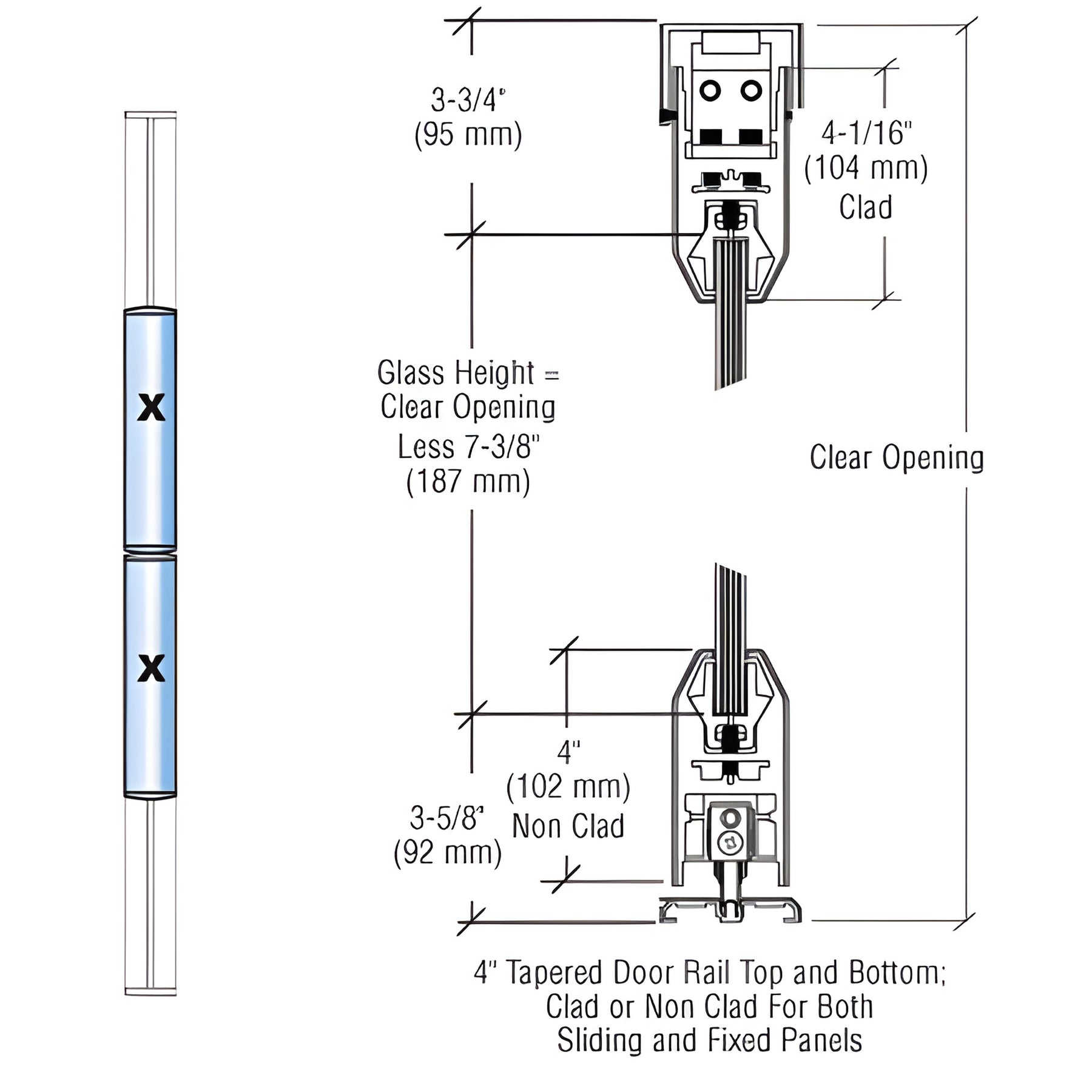

• CRL SDR21BPS bottom-rolling sliding door system drawing with 4" tapered rails, polished stainless finish
1 1

CRL

CRL Polished Stainless Bi-Part SDR Bottom-Rolling Sliding Door Hardware

CRL Polished Stainless Bi-Part SDR Bottom-Rolling Sliding Door Hardware

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SDR21BPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Door Configuration
X X
Door Type
Bi-Part Sliding
Finish/Color
Polished Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)

Overview

  • 4" Tapered DR4T Series door rails (top and bottom)
  • Available in seven architectural finishes

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR21BPS) features 4" (102 mm) tapered rails top and bottom and the proven Wedge-Lock® Glass Securing System for reliable, secure glass retention. DR4T Series door rails are used for all operable and fixed panels and are custom fabricated to your specifications. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum height: 108" (2.74 m); maximum weight: 234 lbs. (106 kg).

Product Warning:

* Clad finishes
* Brushed Stainless
* Polished Stainless
* Polished Brass
* Satin Brass

Most shipping weights are approximate and have not been verified. If exact weight or verified shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor and video card.

Discover the durable, custom-fabricated bottom rolling sliding door system designed for architectural and commercial applications — contact CRL to request a quote or specifications.
