CRL Polished Stainless Steel Bi-Parting Bottom-Rolling Sliding Door
Item# 4SDR21BPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
- With 4" Square DR4S Series Door Rails
- Available in Seven Architectural Finishes

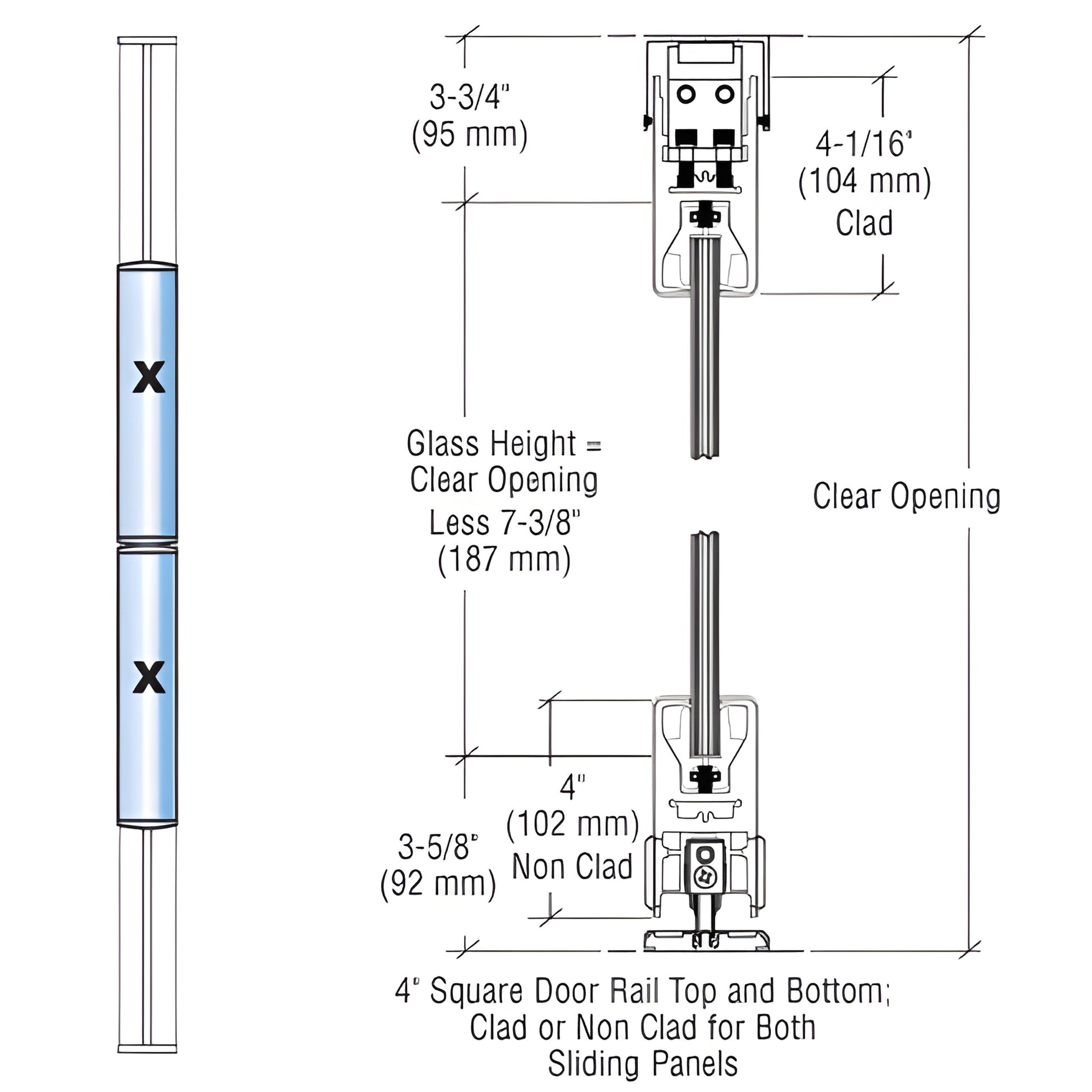

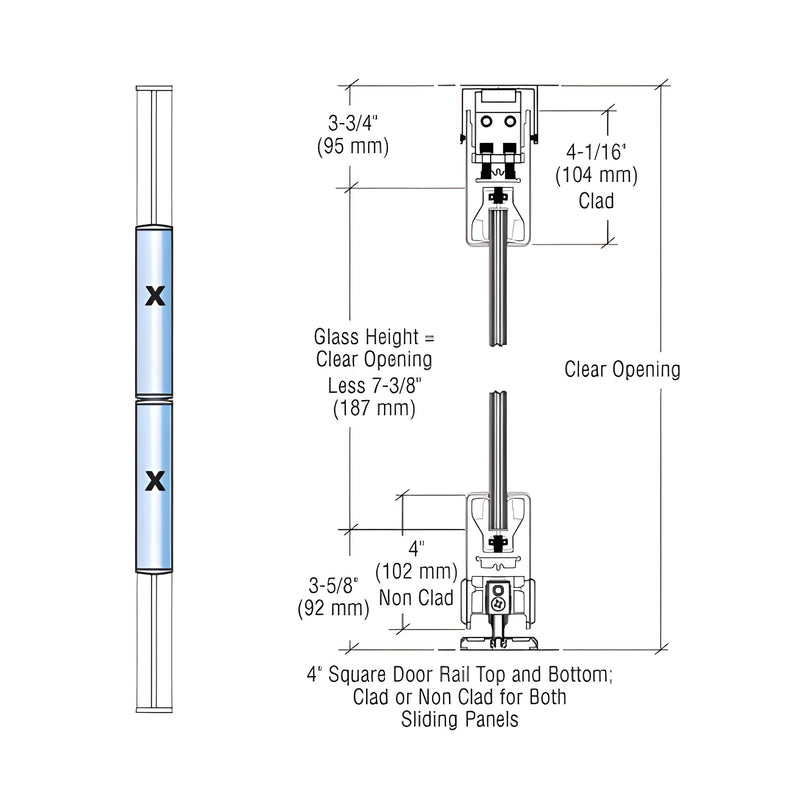

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) square top and bottom rails and our Wedge-Lock® Glass Securing System for reliable glass retention. DR4S Series rails are used for both door and fixed panels and are custom fabricated to your specifications. Doors are available with or without locks in the bottom rail. Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg).
Available Finishes / Product Warning:
- Clad finishes
- Brushed Stainless
- Polished Stainless
- Polished Brass
- Satin Brass
Most shipping weights are approximate. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images represent the actual product or a close approximation; actual colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
SKU: 4SDR21BPS
Order this bottom rolling sliding door system with 4" square rails for commercial or residential applications—contact CRL or your distributor to request a quote and lead time.
CAD Drawings - dwg
