CRL Polished Stainless XX Sliding Door System - 4" Tapered Rail
CRL Polished Stainless XX Sliding Door System - 4" Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR2BPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
X X
Door Type
Sliding
Finish/Color
Polished Stainless Steel
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes

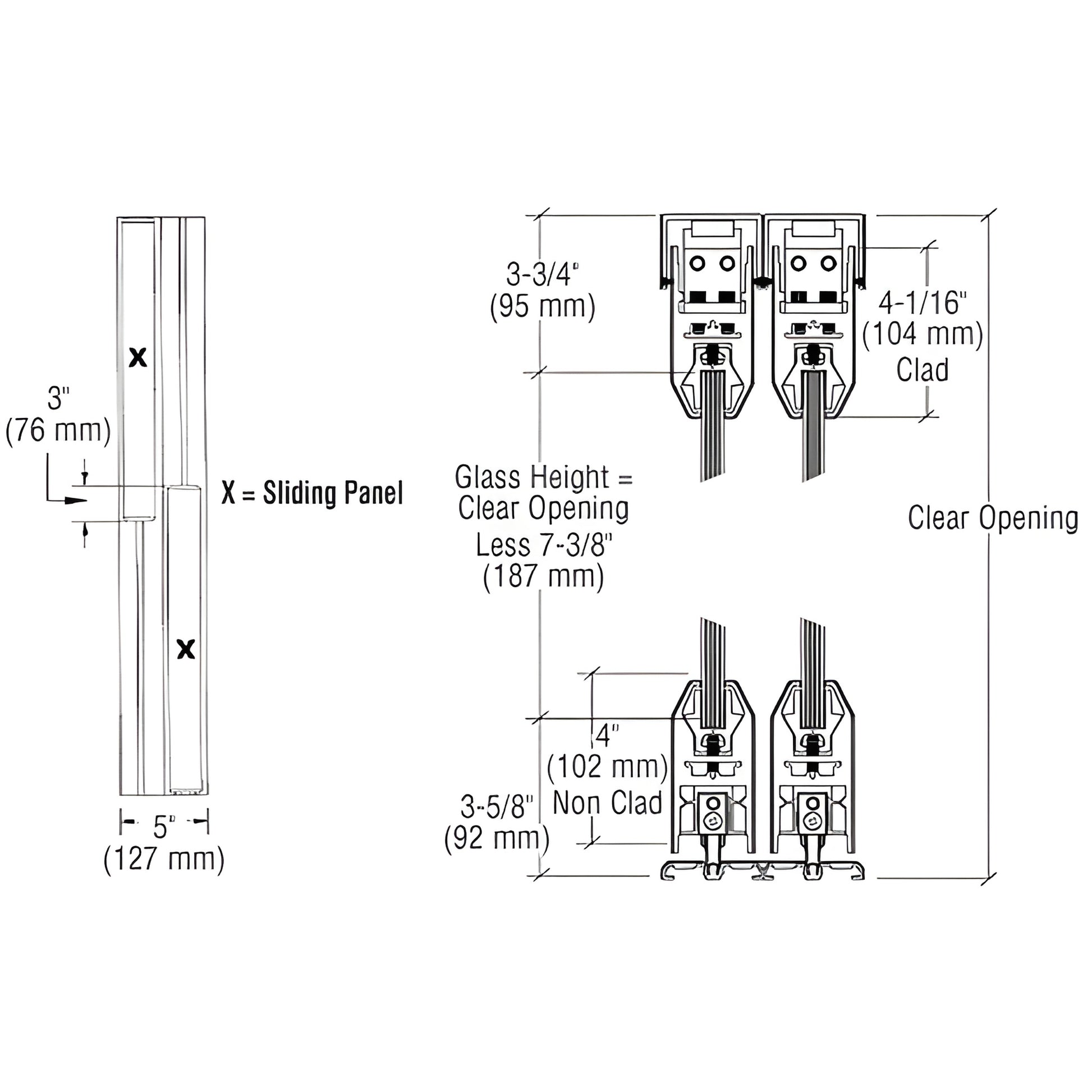

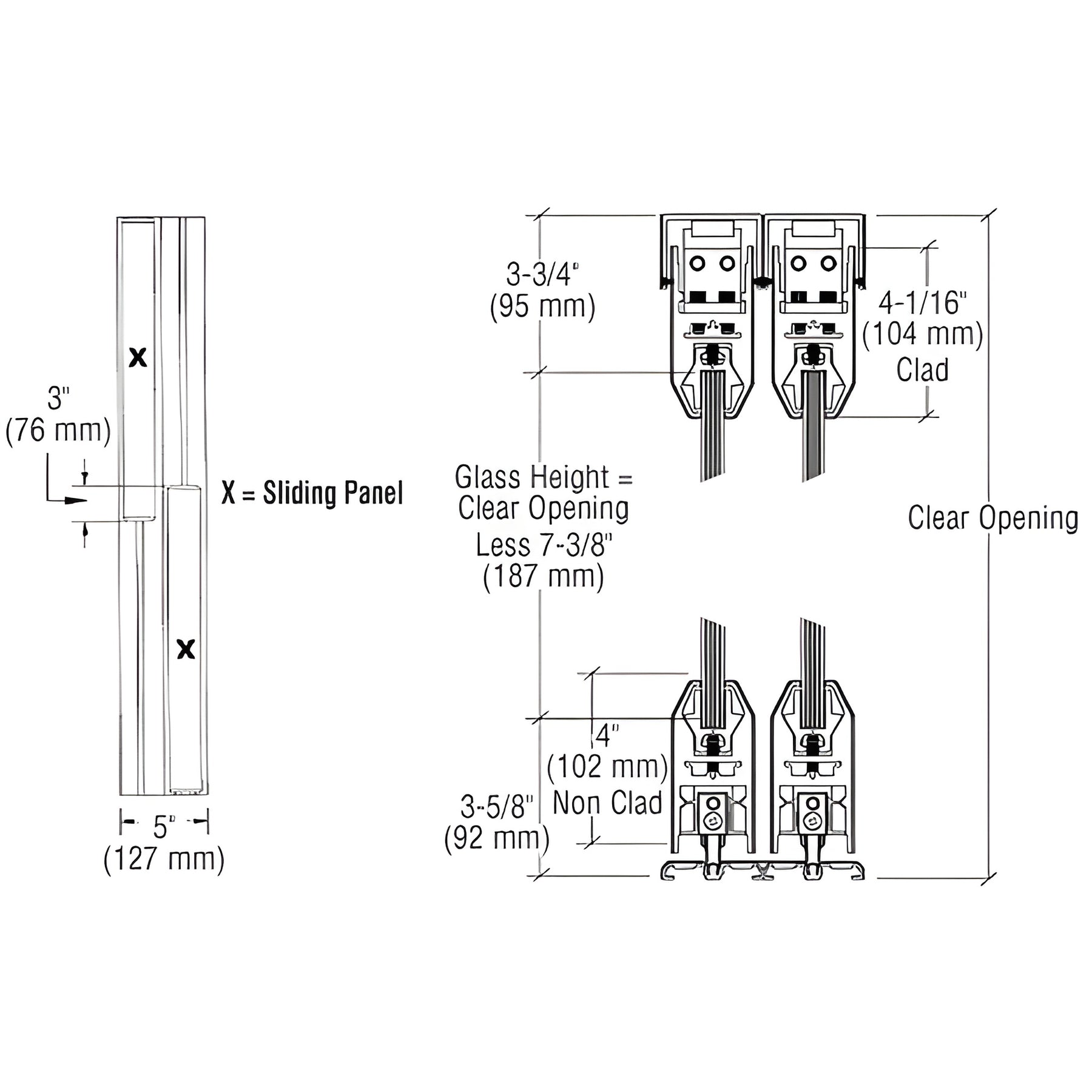

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) tapered DR4T series rails top and bottom and uses the Wedge-Lock® Glass Securing System for secure, clean glass retention. DR4T rails are custom fabricated to your specifications for both door and fixed panels, making this a reliable bottom rolling sliding door solution for commercial and residential applications. Doors are available with or without bottom-rail locks. Maximum door width is 48" (1.22 m); maximum height is 108" (2.74 m); maximum weight 234 lbs. (106 kg). SKU: SDR2BPS
Specifications
CAD Drawings - pdf
