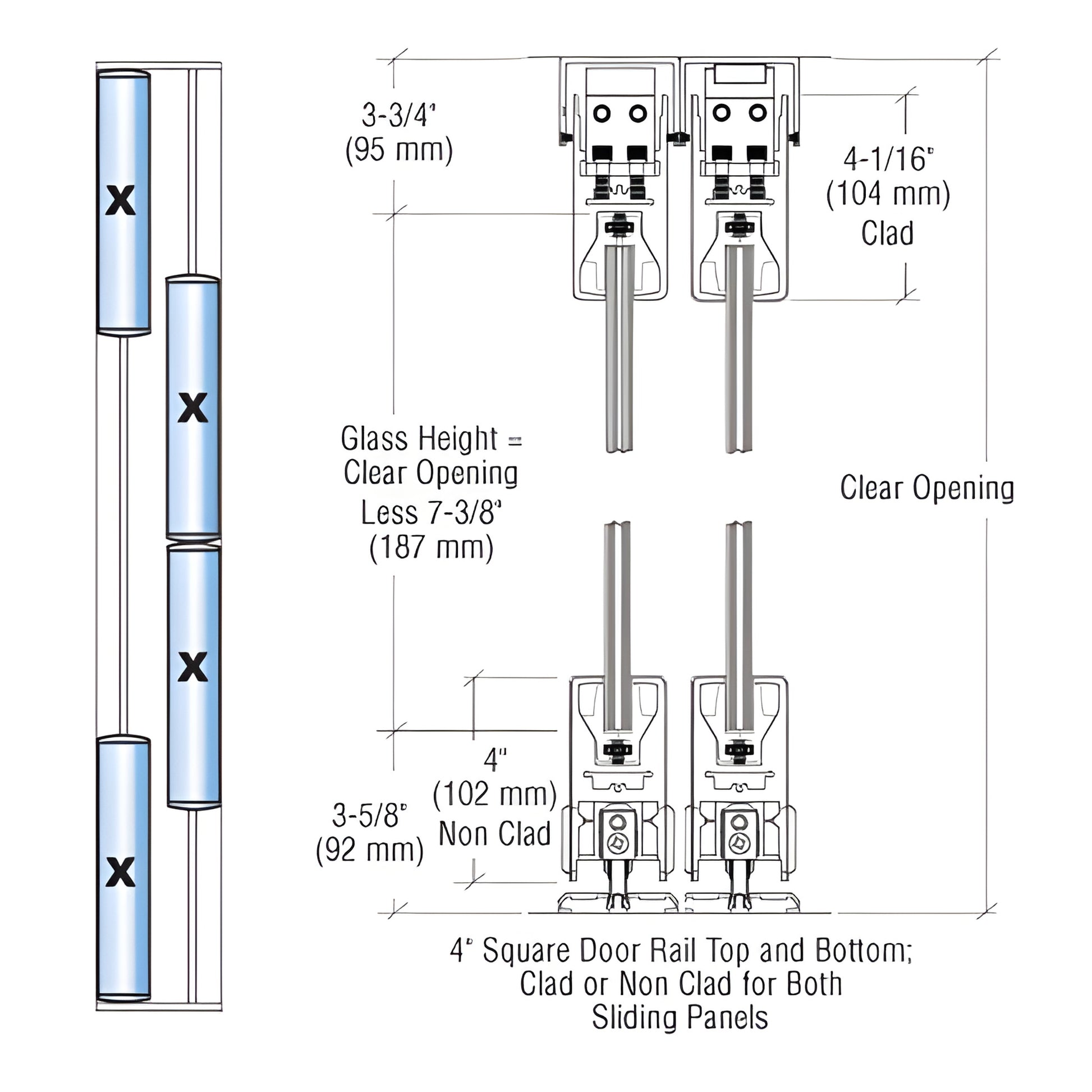

• CRL SDR bottom-rolling sliding door system SKU 4SDR42FPS, polished stainless 4" square rails, 4-panel
1 1

CRL

CRL Polished Stainless Steel Sliding Door System - 4 in Square Rail

CRL Polished Stainless Steel Sliding Door System - 4 in Square Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 4SDR42FPS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Height
4 in. (102 mm)
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Panel Count
4

Overview

  • With 4" Square DR4S Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System features 4" (102 mm) square rails top and bottom and uses the proven Wedge-Lock® Glass Securing System for secure, accurate glass retention. DR4S Series door rails are custom fabricated to your specifications for both door and fixed panels, making this a versatile choice for commercial and residential glass door projects. Doors are available with or without bottom-rail locks. Maximum door dimensions: width 48" (1.22 m), height 108" (2.74 m); maximum weight 234 lb (106 kg). This heavy-duty, bottom-rolling sliding door system pairs durable hardware with refined architectural finishes for a polished installation.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor color settings.

Stainless Steel Advisory:
Although stainless steel is highly corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section below.

Ready to specify your custom SDR bottom rolling sliding door system? Contact CRL Customer Service to get started.
