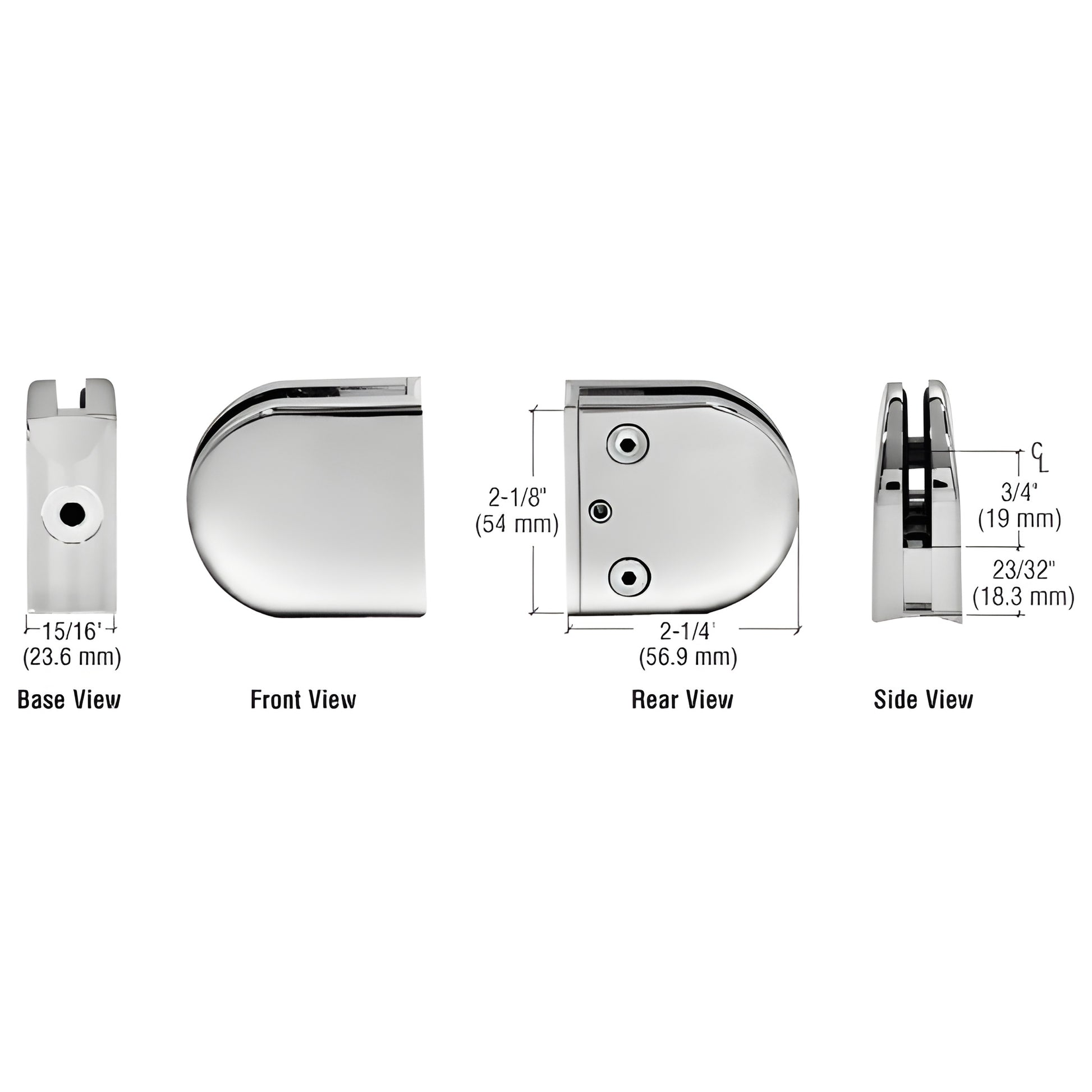

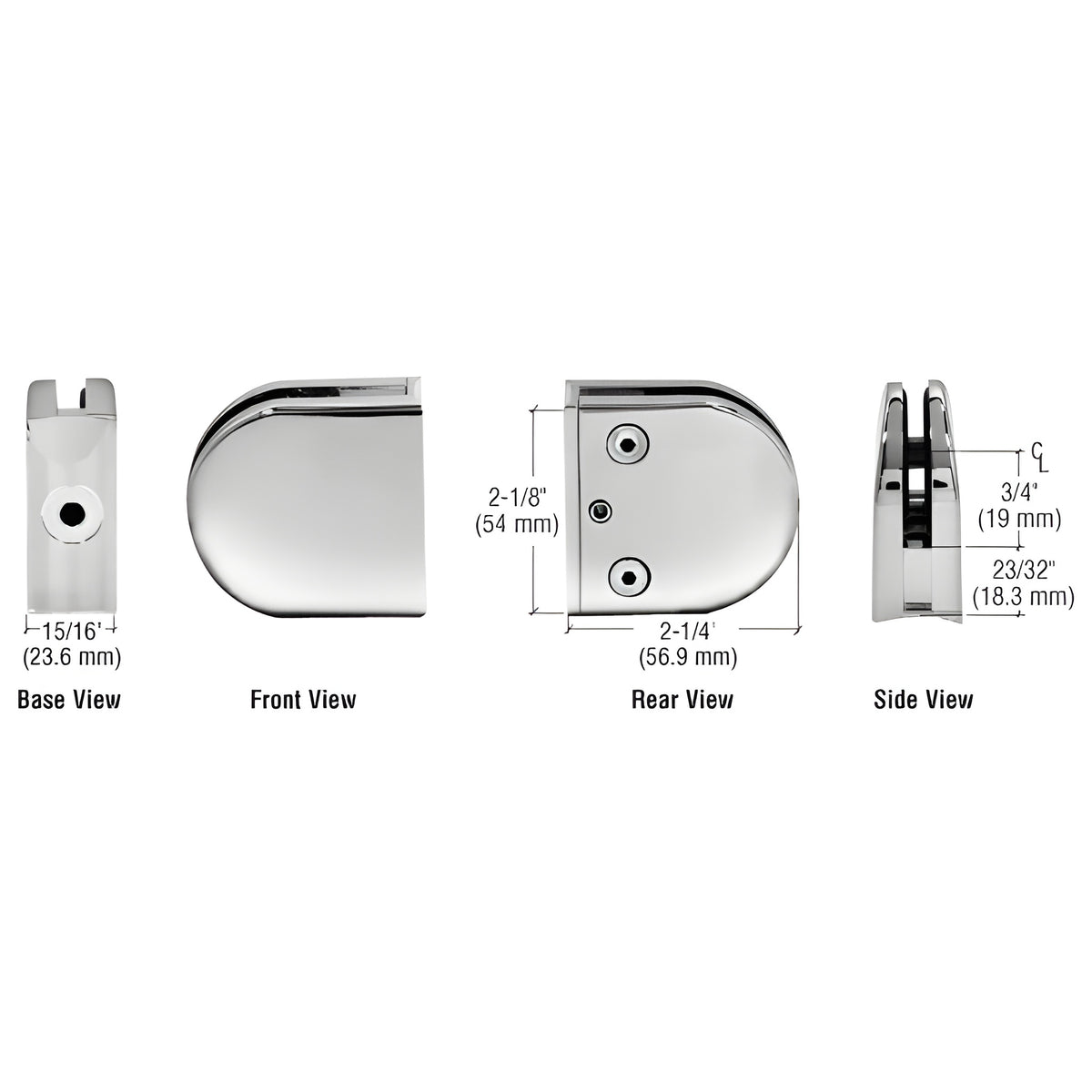

CRL Polished Stainless Glass Clamp 1-1/2" Base Fits 1/4" & 5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Use on mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin available for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Round Type Radius Base Glass Clamps (SKU: Z15306PS) fit 1/4"–5/16" (6–8 mm) glass and are offered in zinc or stainless steel. These radius-base glass clamps are ideal for partitions, railings, windbreaks and similar architectural applications where a round tubing attachment is required.

For fastening the Z-clamp to thin wall tubing (less than 1/8"), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

Note: A 1/2" (12 mm) notch is required when using the included steel pin for additional glass support. Replacement gaskets: CRL Cat. No. Z14RG.

Specifications:

• Glass thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
• Base design: Radius
• For use with: 1-1/2" or 2" (38 or 50.8 mm) diameter round tubing
• Material: Zinc construction or stainless steel. Stainless steel or powder-painted zinc recommended for exterior durability
• Glass fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) thick glass: 1/2" (12 mm) notch required if using the provided steel pin
  • For 1/2" (12 mm) thick glass: 9/16" (14 mm) diameter hole required if using the provided steel pin
• Includes: Rubber gaskets and steel pin (optional) with grommet
• Replacement hardware: CRL P612 for replacement screws

Product warning:
For interior and exterior applications, CRL recommends pinning each glass panel (when the bottom edge does not support the glass) to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
