CRL Z-Series Polished Stainless Round Glass Clamp 1/4 & 5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets available: Cat. No. Z14RG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use with monolithic tempered glass
• Steel pin available for additional glass support (included)
• Custom painted finishes available upon request

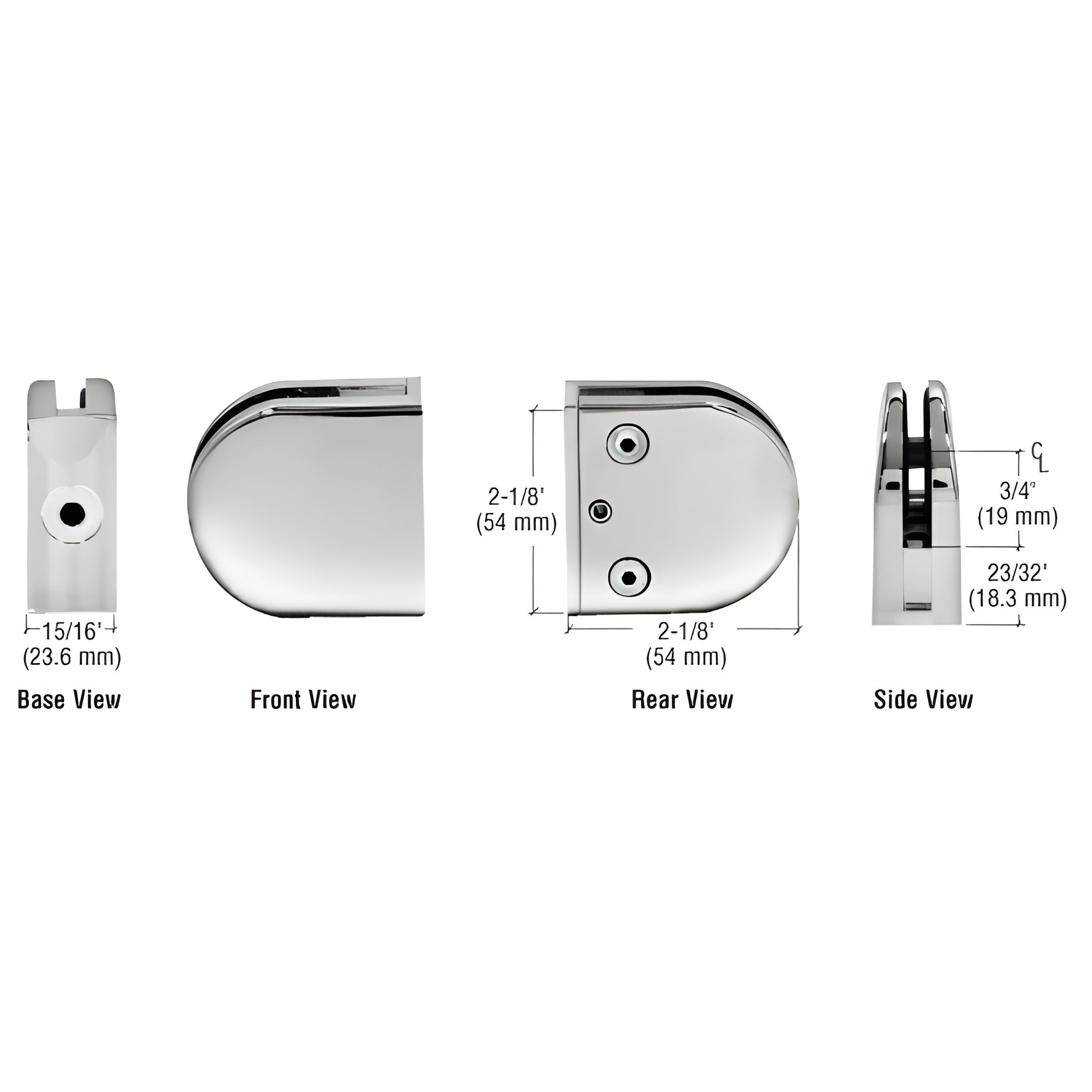

This CRL Z-Series Round Type Flat Base Glass Clamp (SKU: Z506PS) secures 1/4" to 5/16" (6–8 mm) glass. Available in zinc or stainless steel, this flat-base clamp is engineered for partitions, railings, windbreaks and other architectural glass projects where a low-profile, round-style clamp is required.

For mounting to thin-wall tubing (<1/8") use CRL’s ZB0LT Socket Head Cap Bolt with ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the rivet-nut with the 34604 Heavy-Duty Thread Insert tool using the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required when using the steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: 1/4" and 5/16" (6 and 8 mm)
• Base design: Flat, round-type clamp for edge mounting
• For use with: Square tubing or other flat surfaces
• Material: Zinc or stainless steel; stainless or powder-painted zinc recommended for exterior durability
• Glass fabrication:
  • For 6 mm, 8 mm, and 10 mm glass: 1/2" (12 mm) hole required when using the supplied steel pin
  • For 12 mm glass: 9/16" (14 mm) hole required when using the supplied steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement hardware: CRL ZCS5X15SS replacement screws

Product warning:

For interior and exterior applications CRL recommends pinning each unsupported glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each
