CRL Post-Mount Swing Gate - Top/Bottom Pivot, Full Bottom Rail

• Heavy-Duty Glass Gate with Cap Rail — SKU SGP7C
• Attractive design with commercial-grade operation
• Custom fabricated to your design and site requirements

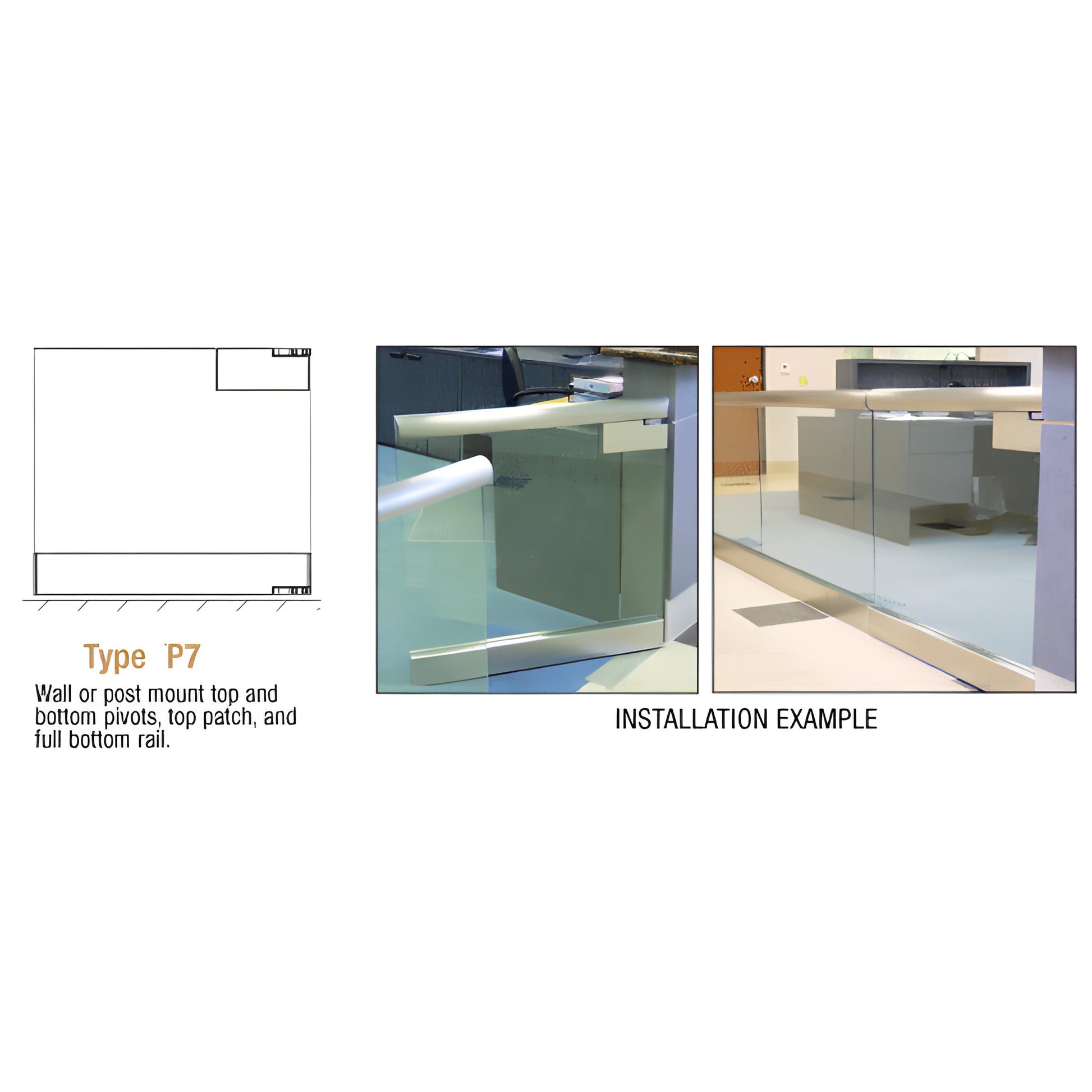

We offer the SGP7C heavy-duty glass swinging gate for commercial and residential applications — ideal as a standalone gate or integrated with the HRS Glass Rail System. Built from our Wedge-Lock® Door Rail System and HRS Cap Rails, this glass gate provides durable hardware and refined aesthetics. The bottom rail can be widened to match an adjacent fixed railing base shoe; the upper patch fitting is modified for mounting to a stainless steel bracket or to accommodate a cap rail. The gate pivots on a heavy-duty ball bearing at the top and a floor-mounted commercial door closer at the bottom. The floor closer always returns the gate to the closed position and includes an adjustable closing speed for site tuning.

NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. For technical questions or to place a custom SGP7C order, contact CRL Railing Products Technical Sales Department.

Contact CRL Railing Products Technical Sales to specify, quote, or order your custom SGP7C heavy-duty glass gate.
