CRL Powder-Coated Aluminum Interior Clamp-On Glazed Vision Window

• Clamp-On Frame Vision Window with Surround Sound System for Natural Voice Transmission — SKU: C0V1P
• Drawings and specifications available online

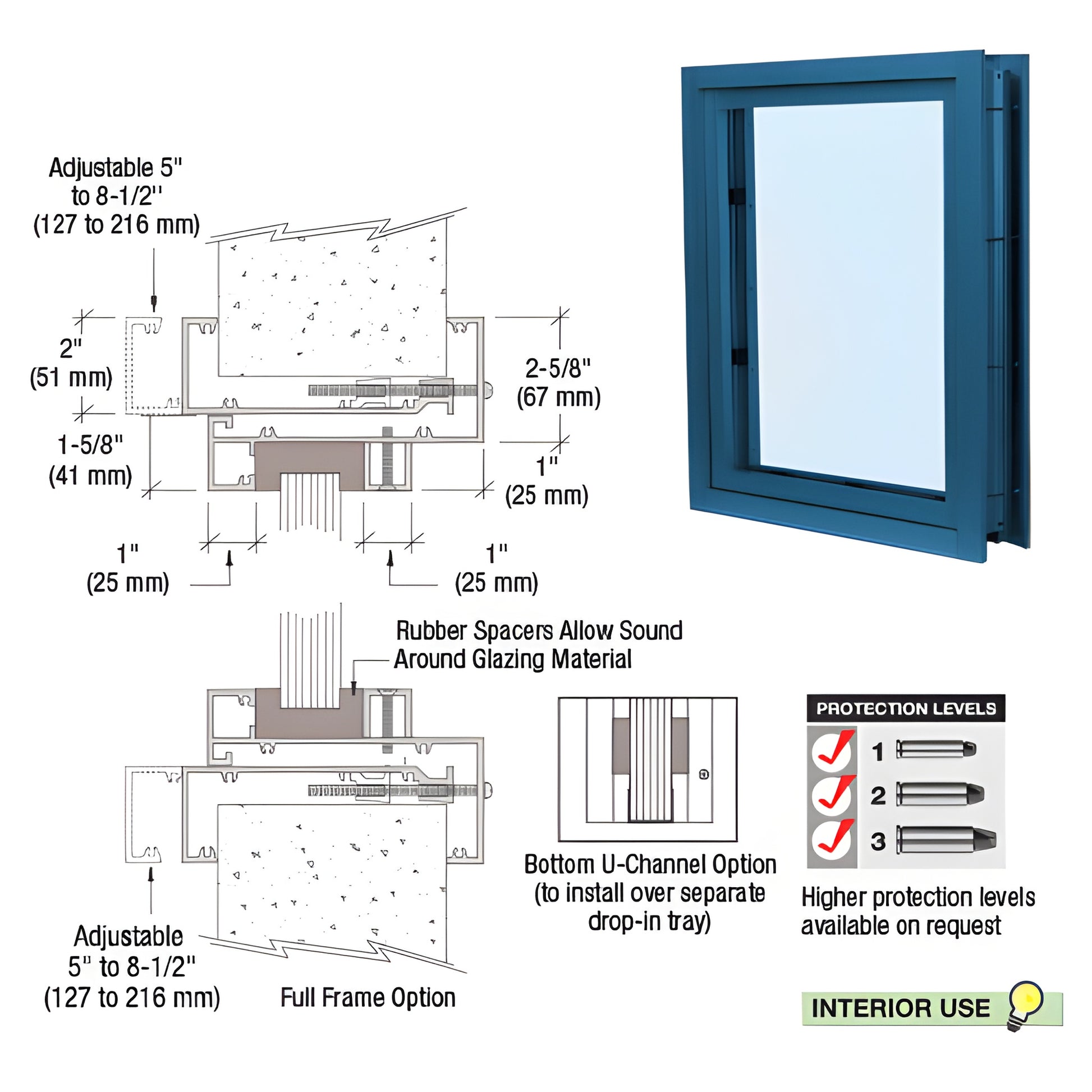

CRL Clamp-On Frame Vision Windows with surround sound provide natural voice transmission without a separate speak-thru device. Designed for interior openings 5" to 8-1/2" (127 to 216 mm) thick, the uniform four-sided frame clamps securely using interior tightening screws. These clamp-on vision windows are ideal for interior transaction and teller openings, typically installed above built-in exchange drawers, or ordered with U-Channel under the glazing to accommodate drop-in deal trays. Customer specifies overall width and height when ordering.


SPECIFICATIONS:
Materials: Glazing options: 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame finishes: Satin Anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions Included.


Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

Why choose CRL clamp-on vision windows: easy clamp installation, integrated surround sound for clear communication without a speak-thru device, multiple security glazing options, and customizable finishes for interior transaction counters. Order or request drawings and exact weights for shipping — contact CRL Customer Service to get started.
