CRL Powder-Coated Vertical Sliding Window w/ Sash Bal, 1/4" Glass

• For light-duty applications of 50 or fewer uses per day
• For windows exceeding 1050 square inches (width × height)
• Available pre-glazed or non‑glazed
• Available in vertical and horizontal formats
• Each unit is customized to fit your needs

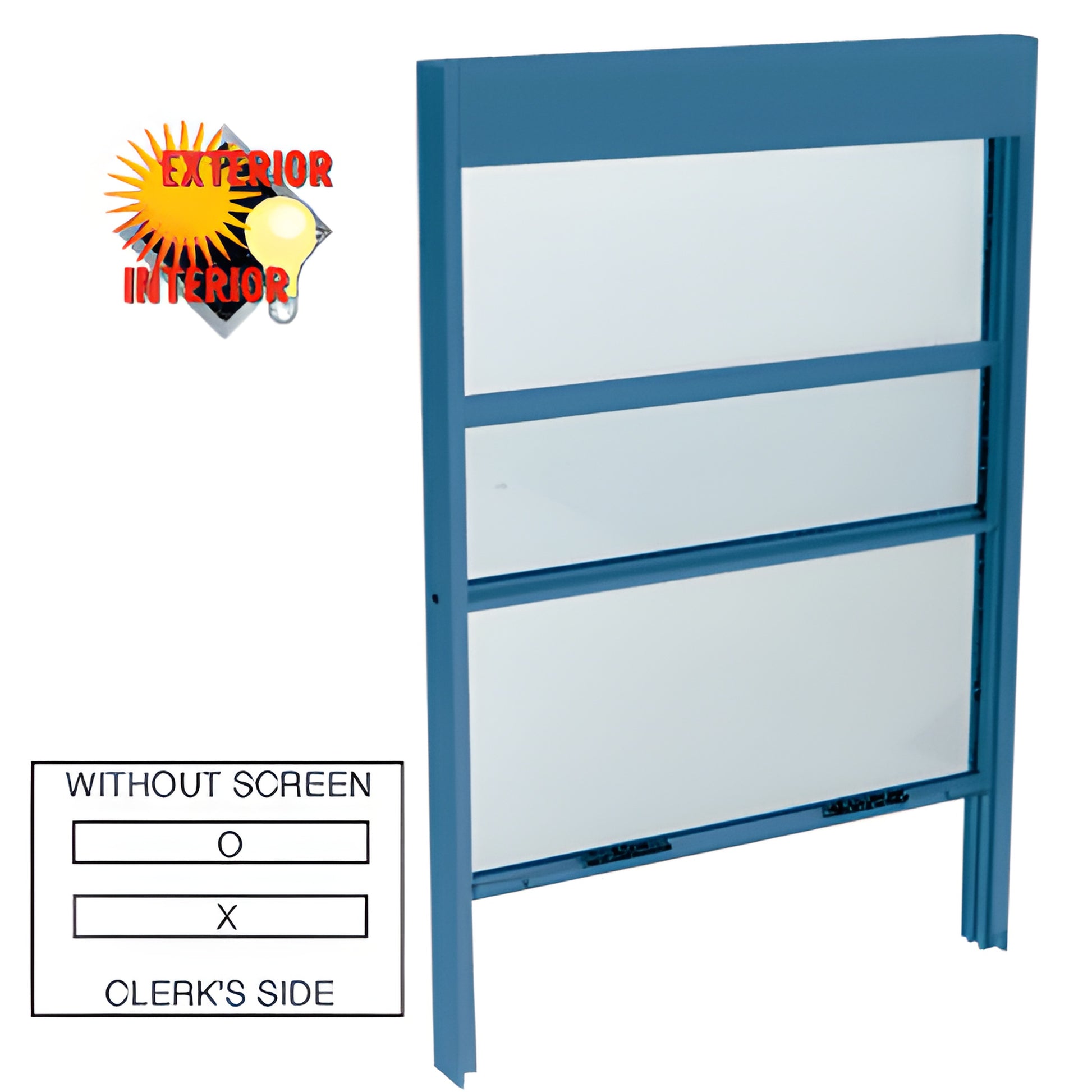

CRL "SW" Series Sliding Service Window — versatile sliding service window for interior or exterior use. Ideal for walk-up food service, receptionist counters, pharmacies, and other customer-facing openings. Choose vertical or horizontal formats with customizable sizes and options.

Vertical windows use nylon runners over coiled tension springs for smooth, reliable operation; larger vertical units require concealed sash balances behind a 4-5/8" (117 mm) header. Horizontal windows operate with top nylon guides; for larger horizontal openings, a full bottom track with rollers is recommended. Specify left- or right-hand fixed from clerk’s side when ordering.

Differentiators: Custom-sized sliding service window, pre-glazed or non-glazed options, concealed sash balances for larger vertical units, nylon runners and guides for smooth operation, and recommended overhang for exterior applications.

NOTE: Surround frame not available for insulating glass models. If ordered with a keyed lock, the screen panel will be installed in the center channel.

SPECIFICATIONS:

Materials: Extruded aluminum; tempered safety glass on some models; fiberglass screen on some models.

Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or Kynar paint. Painted units ship glazed only.

Glazing: 1/4" (6 mm) glass.

Installation: Installation instructions included.

Product Warning: All larger vertical format service windows which exceed 1050 square inches (width × height) require sash balances.

SKU: SWB1014P

Ready to specify your custom sliding service window? Contact CRL or add SKU SWB1014P to your quote.
