CRL
CRL Powder-Coated XXXX Format Sliding Door System - 4" Tapered Rail
CRL Powder-Coated XXXX Format Sliding Door System - 4" Tapered Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDR42FPT
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Door Configuration
XXXX
Door Type
Sliding
Finish/Color
Powder Coated
Maximum Door Height
108 in. (2743 mm)
Maximum Door Width
48 in. (1219 mm)
Maximum Panel Weight
234 lbs. (106.1 kg)
Overview
- With 4" Tapered DR4T Series Door Rails
- Available in Seven Architectural Finishes

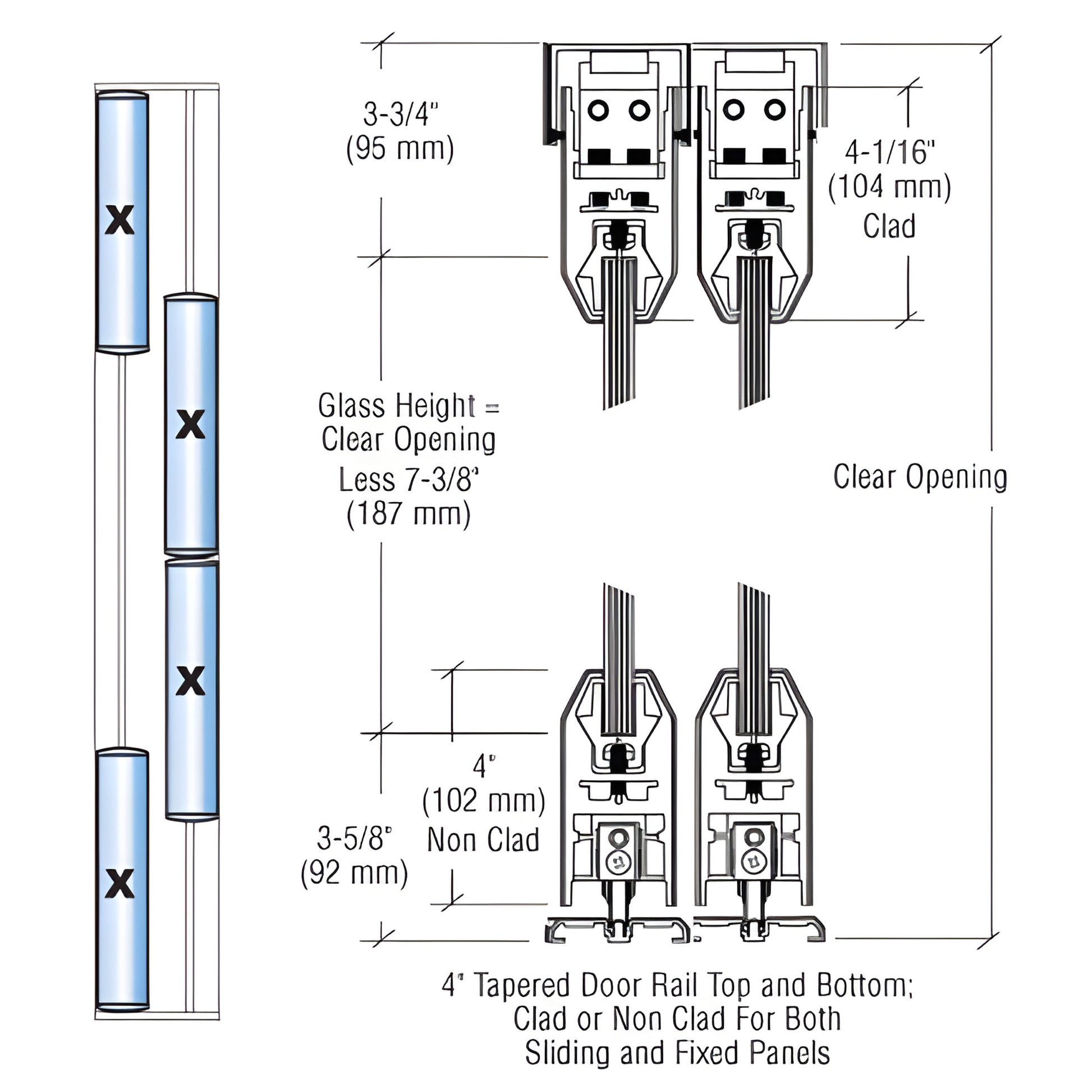

The CRL SDR Bottom Rolling Sliding Door System (SKU: SDR42FPT) features 4" (102 mm) tapered DR4T top and bottom rails and the proven Wedge-Lock® Glass Securing System for secure, reliable glass retention. DR4T Series rails are used for both door and fixed panels and are custom fabricated to your project specifications. Doors are available with or without bottom-rail locks.
Maximum door width: 48" (1.22 m); maximum door height: 108" (2.74 m); maximum door weight: 234 lb (106 kg). Ideal for commercial and high-end residential sliding glass door installations that require bottom-rolling hardware, tapered 4-inch rails, and multiple architectural finish options.
Start your build with CRL’s SDR42FPT bottom rolling sliding door system—contact CRL to request a quote or custom fabrication details.
Specifications
CAD Drawings - pdf
