CRL PP47 Brushed Stainless 18 in 1 in Square Partition Center Post w/ U-Channel
CRL PP47 Brushed Stainless 18 in 1 in Square Partition Center Post w/ U-Channel
Regular price
$294.58 CAD
Regular price
Sale price
$294.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PP47CBS
Shipping Weight: 1.915 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.915 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Air Gap
2 in. (50.8 mm)
Base Type
Square Flat - Welded
Cap Type
Flat
Configuration
Center Post
Finish/Color
Brushed Stainless Steel
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Stainless Steel
Series
Plaza
Tube Size
1 in. (25.4 mm)
Tube Type
Square
Overview
- Posts ready-to-ship from Los Angeles in 3–5 working days

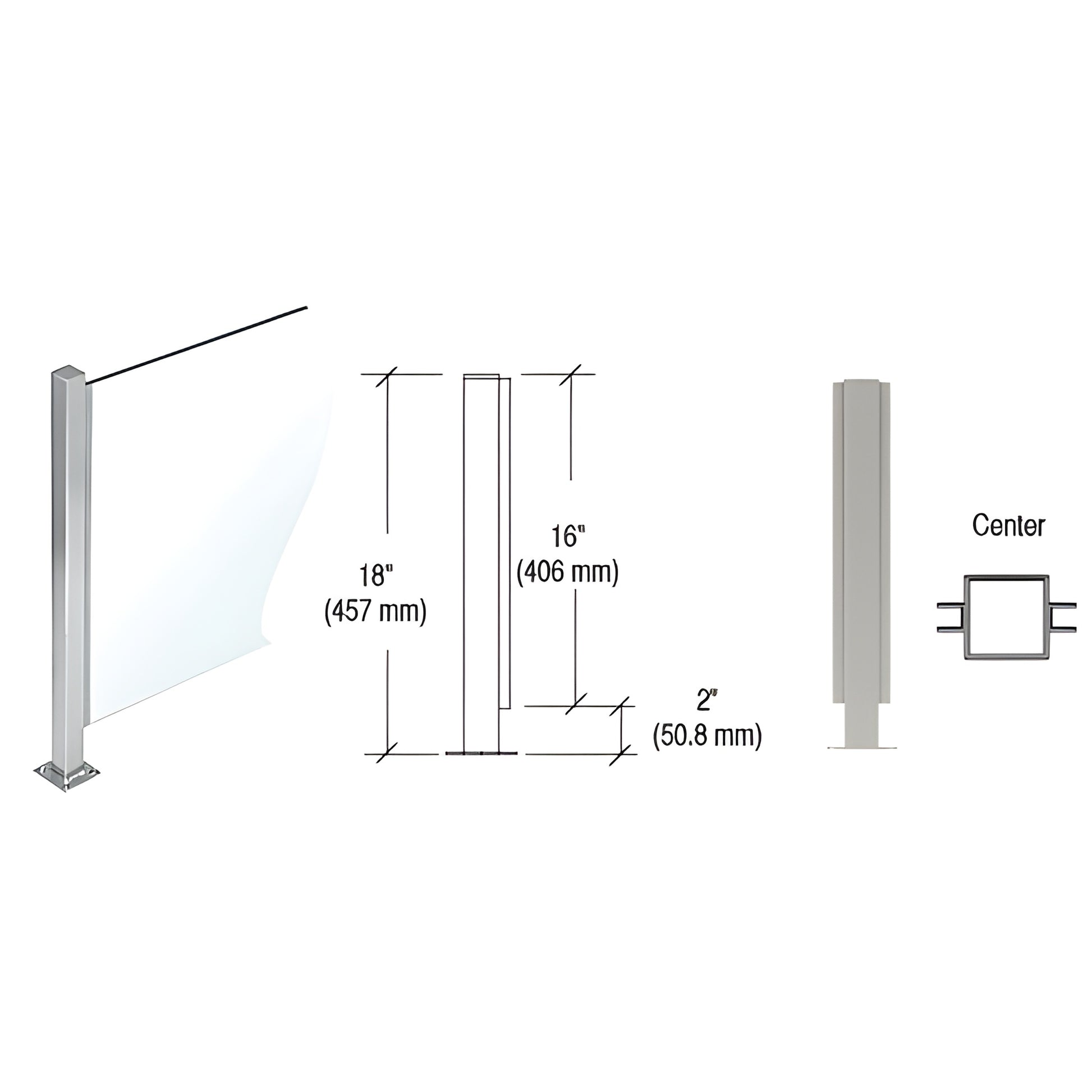

- 18" x 1" (457 x 25.4 mm) stainless steel square posts with full-length U-channel for 1/4" (6 mm) glass
- Supplied with flat cap and welded 3" (76.2 mm) base plate
- 2" (50.8 mm) air space at bottom
CRL Plaza Series glass partition and divider posts are made from 1-1/2" (38 mm) stainless steel square tubing and accept 1/4" (6 mm) glass in the full-length U-channel. Use Cat. No. 33SC clear silicone (meets CRL standards) for glazing. These stainless steel glass partition posts are designed for commercial and residential glass railing, divider, and countertop applications.
Model PP43 posts are available off the shelf in two stock sizes and two finishes and install easily into wood, marble, or vitreous countertops using the welded flange base and supplied screws. Each kit contains one post, one welded flange base, one flat top cap, and installation screws. For custom needs, CRL fabricates posts to ship from Los Angeles within three to five working days. DIY installers can order stock component parts to fabricate complete units in their own shop.
Dimensions: posts measure 1-1/2" (38 mm) square; welded base plates measure 3" (76.2 mm) square; 1/4" (6 mm) glazing channels run full length and rise 1/2" (12.7 mm) from the post surface.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
SKU: PP47CBS
Order glass partition posts ready-to-ship from Los Angeles — contact CRL to buy or request custom fabrication.
