CRL

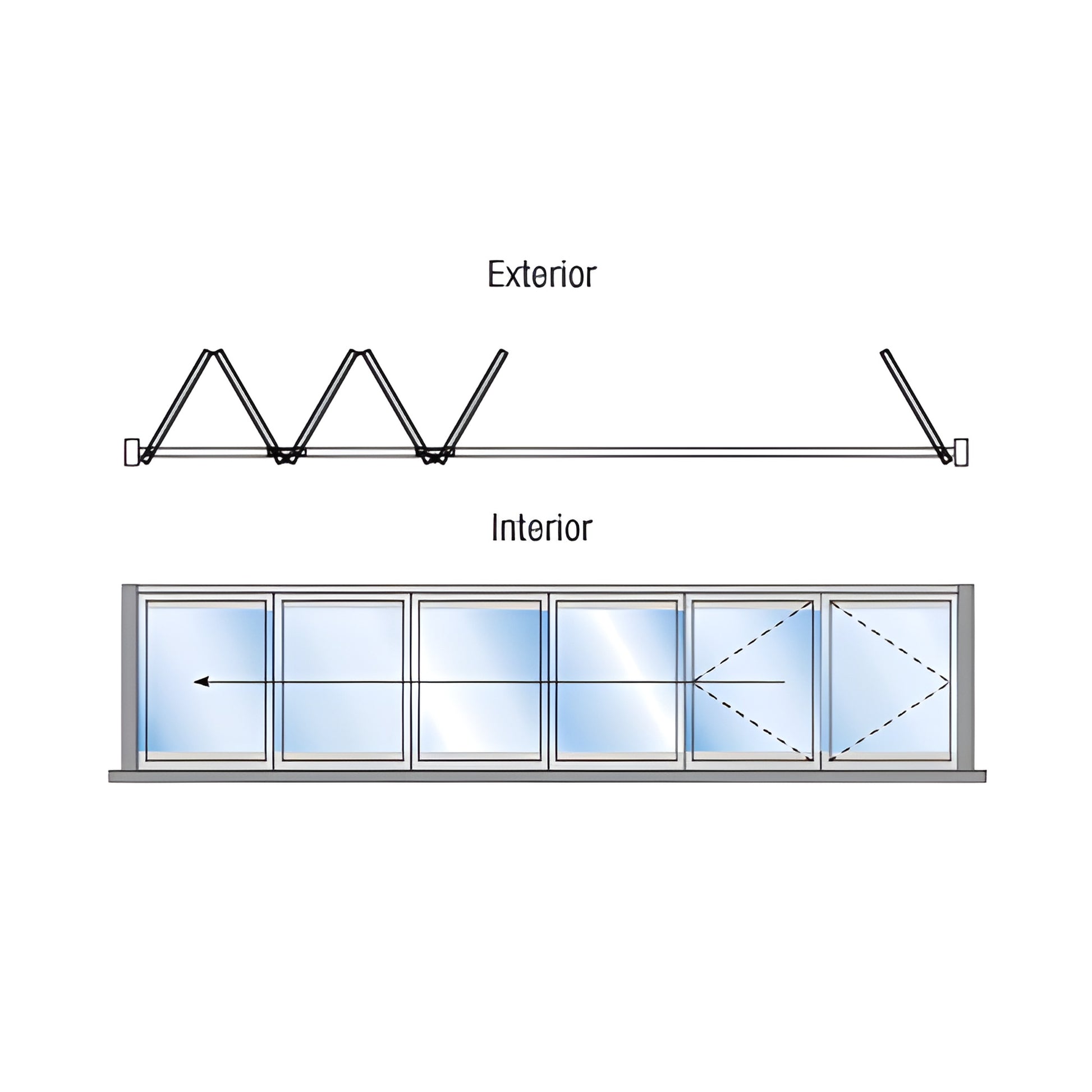

CRL S55 Monterey LH Ext Bi-Fold Door, Raised Sill & Black Lever Lock

CRL S55 Monterey LH Ext Bi-Fold Door, Raised Sill & Black Lever Lock

Shipping calculated at checkout.
Quantity
Item# M5C51R0BLL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

3 Point Keyed Lock
Yes
Door Configuration
Bi-Fold And Pivot 5+1 Left Hand
Door Type
Framed Bi-Folding Doors
Finish/Color
Gloss Black
Glazing Thickness
1/4 in. To 1-1/4 in. (6 mm To 32 mm)
Material
Aluminum
Panel Count
6
Swing
Exterior

Overview

  • Weather resistant exterior bi-folding glass wall system
  • Thermally broken option available for improved energy performance
  • Suitable for new construction or retrofit in commercial and residential projects
  • Fully assembled, ready for glazing
  • Easy-to-operate panels slide and fold effortlessly
  • Standard finishes: white, black, wood grain powder coat; satin and black bronze anodized. Custom colors available

Monterey Bi-Folding Glass Wall System brings the outdoors in while resisting weather and wind. Precision-engineered rollers and guides allow smooth operation and support multiple panels in a single opening, enabling expansive, uninterrupted sightlines. Standard two-point interior lever latches provide security; three-point keyed locks are available on select configurations.

Designed for flexibility, the Monterey Series accommodates 2 to 26 panels and stacks to one or both sides for a wide open space. Many configurations accept a pivoting door that folds with the system. Slim, sturdy frames maximize glass area and minimize metal sightlines. Glazing range: 1/4" to 1-1/4" (6 to 32 mm). Standard finishes include powder coat and anodized options; custom finishes available for matching design palettes.

Most shipping weights are approximate. If you need an exact weight to calculate shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor settings.

SKU: M5C51R0BLL — Request a quote or contact us to discuss custom sizes, thermal options, and finish choices.

Specifications

BIM Objects - rvt
