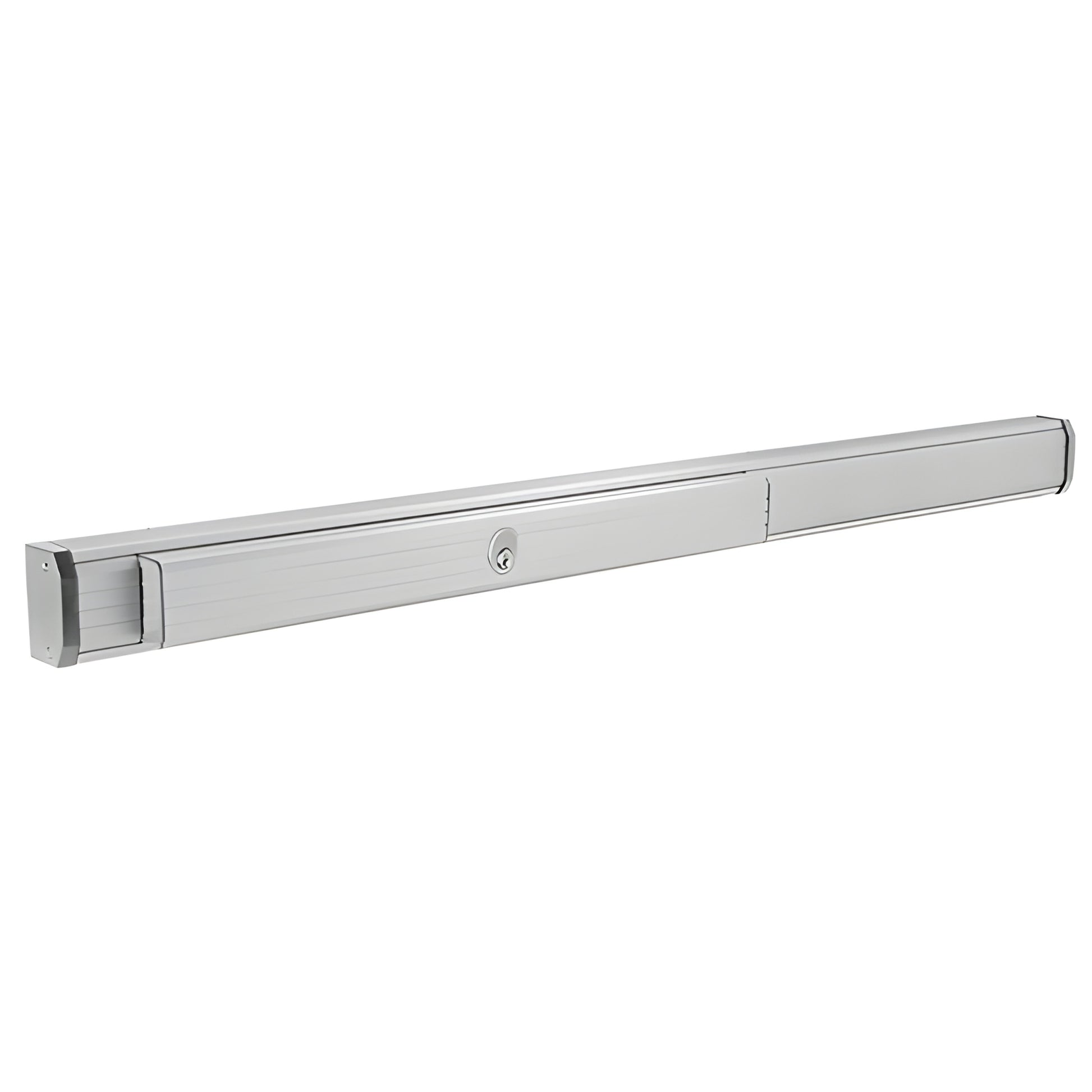

CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Item# 311285CL4628
Shipping Weight: 10.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Jackson
Certification
ANSI/BHMA 156.3
Door Height
84 in. (2133.6 mm)
Door Thickness
1-3/4 in. (44.5 mm)
Door Width
48 in. (1219.2 mm)
Finish/Color
Aluminum
Handing
Left Hand Reverse Bevel (LHR)
Includes
Mounting Hardware
Material - End Cap
Aluminum
Material - Housing
Aluminum
Material - Latch & Strike
Sintered Steel
Material - Mechanical Components
Stainless and Hardened Plated Steel
Minimum Stile Width
1-3/4 in. (44.5 mm)
Model
1285
Panic Bar Base Height
3-3/16 in. (81 mm)
Panic Bar Projection
2-7/8 in. (73 mm)
Panic Bar Width Net
46-1/2 in. (1181.1 mm)
Panic Dogging
Prepped For Cylinder Dogging
Panic Type
Concealed Vertical Rods
Push Pad Width
24 in. (609.6 mm)
Recommended Door Type
Aluminum Narrow, Medium, Wide Stile, Hollow Metal
Series
1200
Tall Door Extention Rods
301347 & 301348
UL Listed
Yes
- Suitable for use with narrow, medium and wide stile doors
- Sleek, contemporary style
- UL Listed for panic exit hardware
This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is engineered for 1-3/4" (44 mm) narrow stile aluminum doors and also fits medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings and may be trimmed for narrower conditions. Features trigger-action locking release and a positive 5/8" (16 mm) top and bottom bolt throw for reliable emergency egress. Ideal long-tail search keywords: concealed vertical rod panic exit device for aluminum doors, 48-inch panic exit device, UL listed concealed vertical rod hardware.
REPLACEMENT PARTS:
- DC7205SCKADU
- DC7205SCKDDU
- 1CHDU
- 1C01
- 302630313
- 302861
- 30821J313
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual product or close representations; colors may vary by monitor settings.
SKU: 311285CL4628 — Order now to ensure code-compliant, concealed vertical rod panic hardware for aluminum doors.
