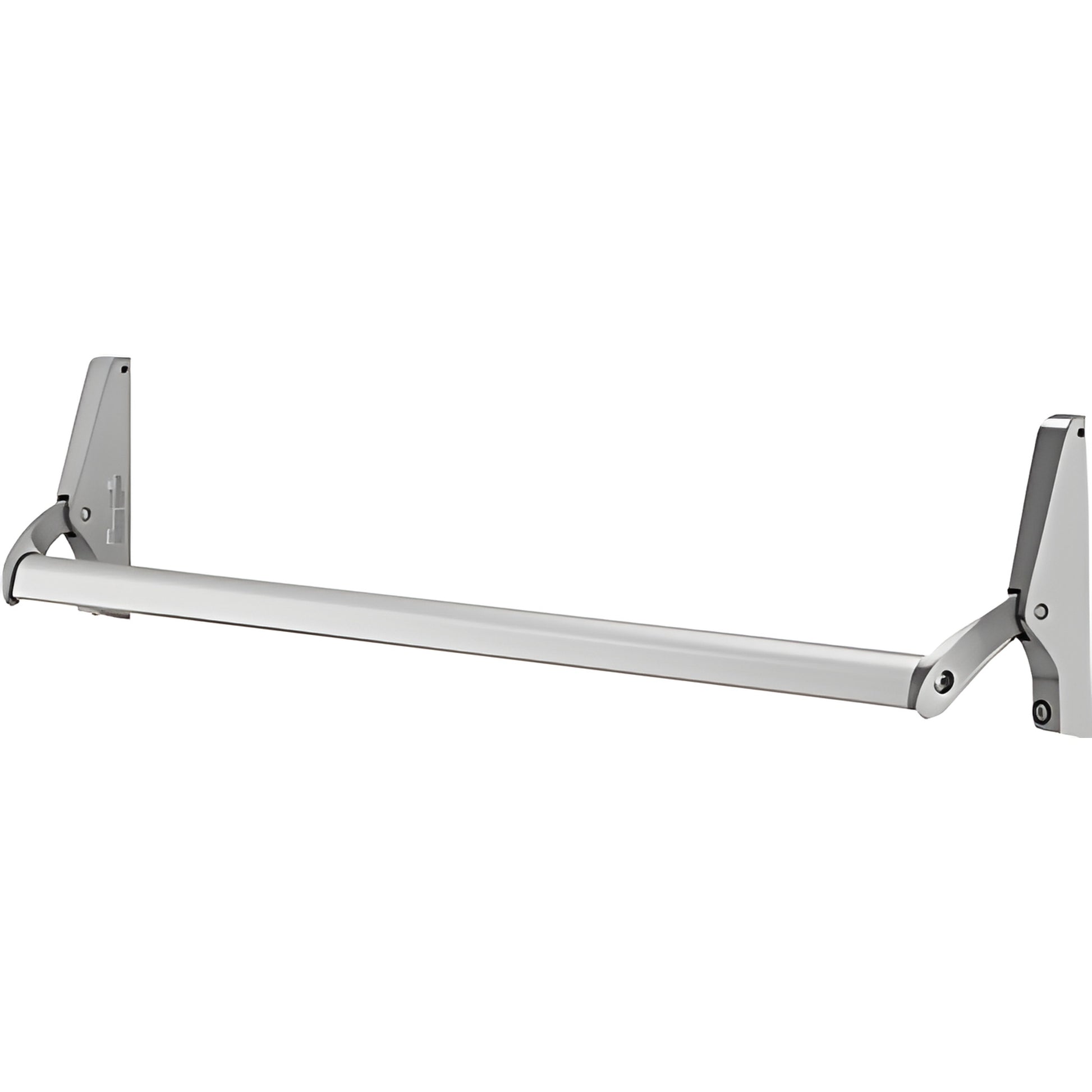

CRL Satin Aluminum Concealed Vertical Rod Panic Exit Device
CRL Satin Aluminum Concealed Vertical Rod Panic Exit Device
Regular price
$213.06 CAD
Regular price
Sale price
$213.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL1180A
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Certification ANSI A | 156.3 Grade 1 |
| Door Height | 84 |
| Door Thickness | 1-3/4 |
| Finish/Color | Satin Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | Aluminum |
| Minimum Stile Width | 1-3/4 |
| Model DL | 1180 |
| Panic Bar Base Height | 2 |
| Panic Bar Projection | 4-5/8 |
| Panic Bar Width Net | 48 |
| Panic | Dogging Screw Driver |
| Panic Head Base Width | 1-1/4 |
| Panic Head Height | 7-5/16 |
| Panic Type Concealed Vertical Rods | (CVR) |
| Recommended | Door Type Aluminum, Wood, Hollow Metal |
| Replacement Parts DL | 2170SCKDA, DL2070SCKAA, 30821J628 |
| Similar | 31180547628 |
| U | L Listed Yes |
Overview
CRL's DL1180 Series Cross Bar Panic Exit Devices offer a reliable and cost-effective solution for security and life safety needs.
Available in Concealed Vertical Rod and Rim Exit Device options, these devices cater to narrow, medium, and wide stile aluminum or hollow metal doors.
The 42" crossbar can be easily cut to size, ensuring a perfect fit for your specific door dimensions.
Featuring two standard architectural finishes, the DL1180 Series is designed for 1-3/4" thick doors and provides independent top and bottom bolt action with a 1/2" bolt throw for added security.
For detailed specifications and shipping information, contact CRL Customer Service.
Available in Concealed Vertical Rod and Rim Exit Device options, these devices cater to narrow, medium, and wide stile aluminum or hollow metal doors.
The 42" crossbar can be easily cut to size, ensuring a perfect fit for your specific door dimensions.
Featuring two standard architectural finishes, the DL1180 Series is designed for 1-3/4" thick doors and provides independent top and bottom bolt action with a 1/2" bolt throw for added security.
For detailed specifications and shipping information, contact CRL Customer Service.
Specifications
Installation Instructions
