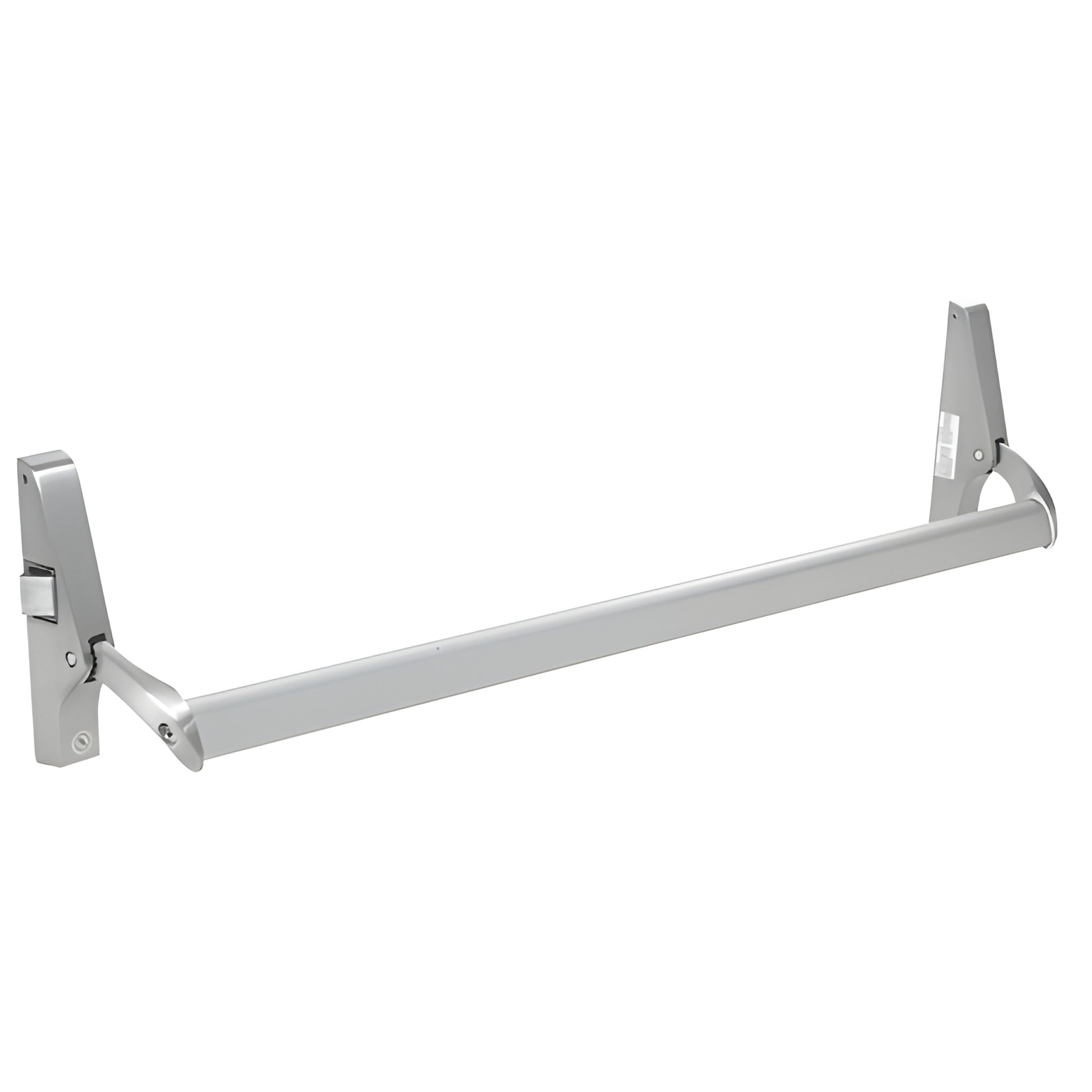

CRL Satin Aluminum Cross Bar Panic Push Bar, LH Reverse Bevel Rim

• Available as Concealed Vertical Rod and Rim Exit Devices
• 42" (1.07 m) crossbar can be cut-to-size for custom door widths
• Compatible with narrow, medium, and wide stile aluminum doors and hollow metal doors
• Two standard architectural finishes

CRL DL1190 Series Cross Bar Panic Exit Devices (SKU: DL1190LHRA) deliver a durable, economical solution for commercial panic and life-safety applications. Offered in both Rim and Concealed Vertical Rod configurations, the unit’s 42" crossbar is field-cuttable to fit exact door sizes—ideal for retrofit and new-construction aluminum and hollow metal doors.


DL1190 Series Rim Panics
• Handed, non-reversible for consistent field installation
• Designed for aluminum or hollow metal doors in commercial settings
• Standard surface-mounted roller-type rim strike supplied
• Keyed entry requires optional CRL DL911SC series rim cylinder (no mounting pad required)

Product Warning:

This Rim Exit Device is handed. Handing is determined from the OUTSIDE (lock side) of the door. If, from outside, the hinge is on the left and the door swings out toward you, order LHRB (Left Hand Reverse Bevel). If the hinge is on the right and the door swings out toward you, order RHRB (Right Hand Reverse Bevel).

For help selecting the correct handing, finish, or optional rim cylinder for your commercial panic exit application, contact CRL or add DL1190LHRA to your cart now.
