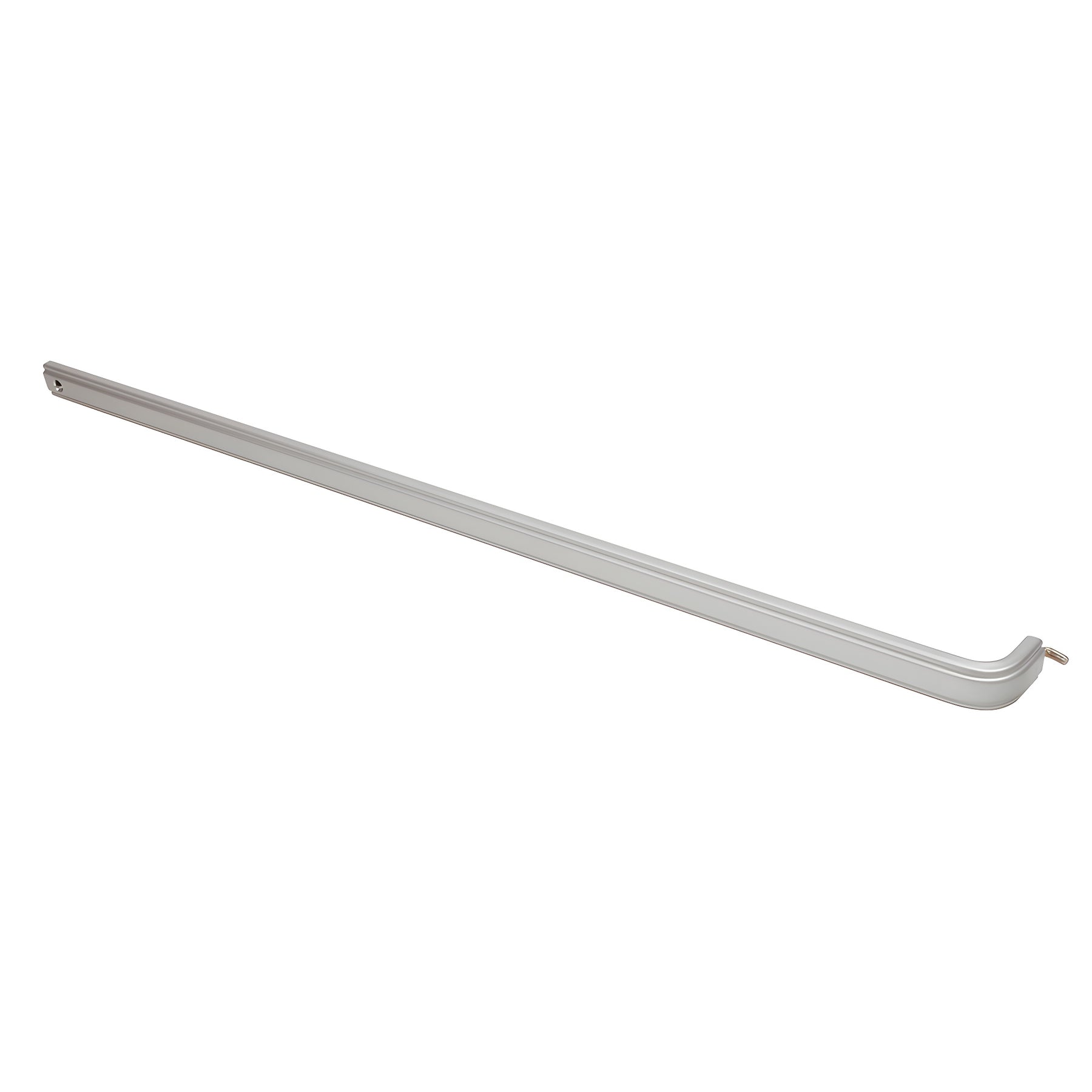

CRL Satin Aluminum Extruded Push Bar 48" Doors - Exit Panic Bar
Item# DL9540A
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Bar Size
1/2 x 1-1/4 in. (12 x 32 mm)
Door Type
Doors up to 48 in. (1220 mm)
Finish/Color
Satin Aluminum
Material
Aluminum
Projection
2-1/4 in. (57 mm)
- For up to 48" (1.22 m) wide aluminum narrow stile storefront doors
- Available in three lengths and two finishes
- Predrilled attachment hole for fast installation
- Attachment hardware not included

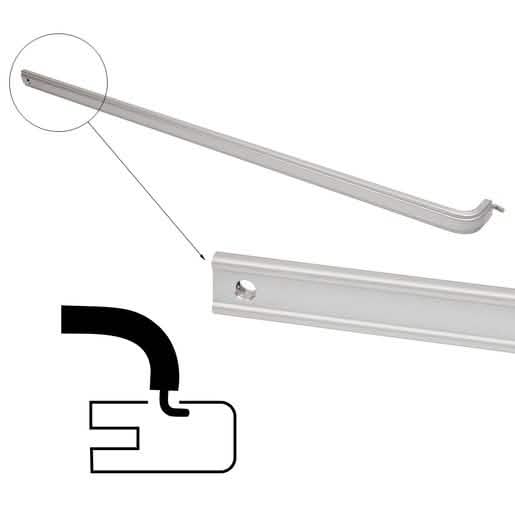

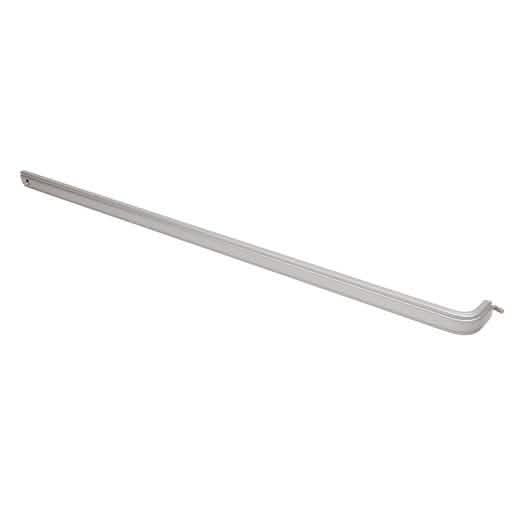

CRL Extruded Aluminum Push Bars (SKU: DL9540A) are designed for aluminum narrow stile storefront doors and feature a formed "J" hook on one end plus a predrilled hole on the opposite end to accept attachment hardware (not included). Bars can be trimmed and redrilled on site for a custom fit. Cross-section measures 1/2" x 1-1/4" (13 x 32 mm) with a 2-1/4" (57 mm) projection from the lock stile—ideal when specifying an aluminum push bar for narrow stile storefront applications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs for your order, please contact CRL Customer Service prior to ordering. Product images are the actual product or a close representation; colors may vary by monitor and video card settings.
Order the DL9540A aluminum push bar for a durable, easy-to-install solution—contact us to confirm length and finish options.
