CRL Satin Anod. Horizontal Sliding Service Window XOX 1/2in IG Screen

• Glass and screen panels on either end open as required
• Designed for light-duty use — up to 50 operations per day
• Available in vertical and horizontal formats
• Each unit is customized to your size and glazing requirements

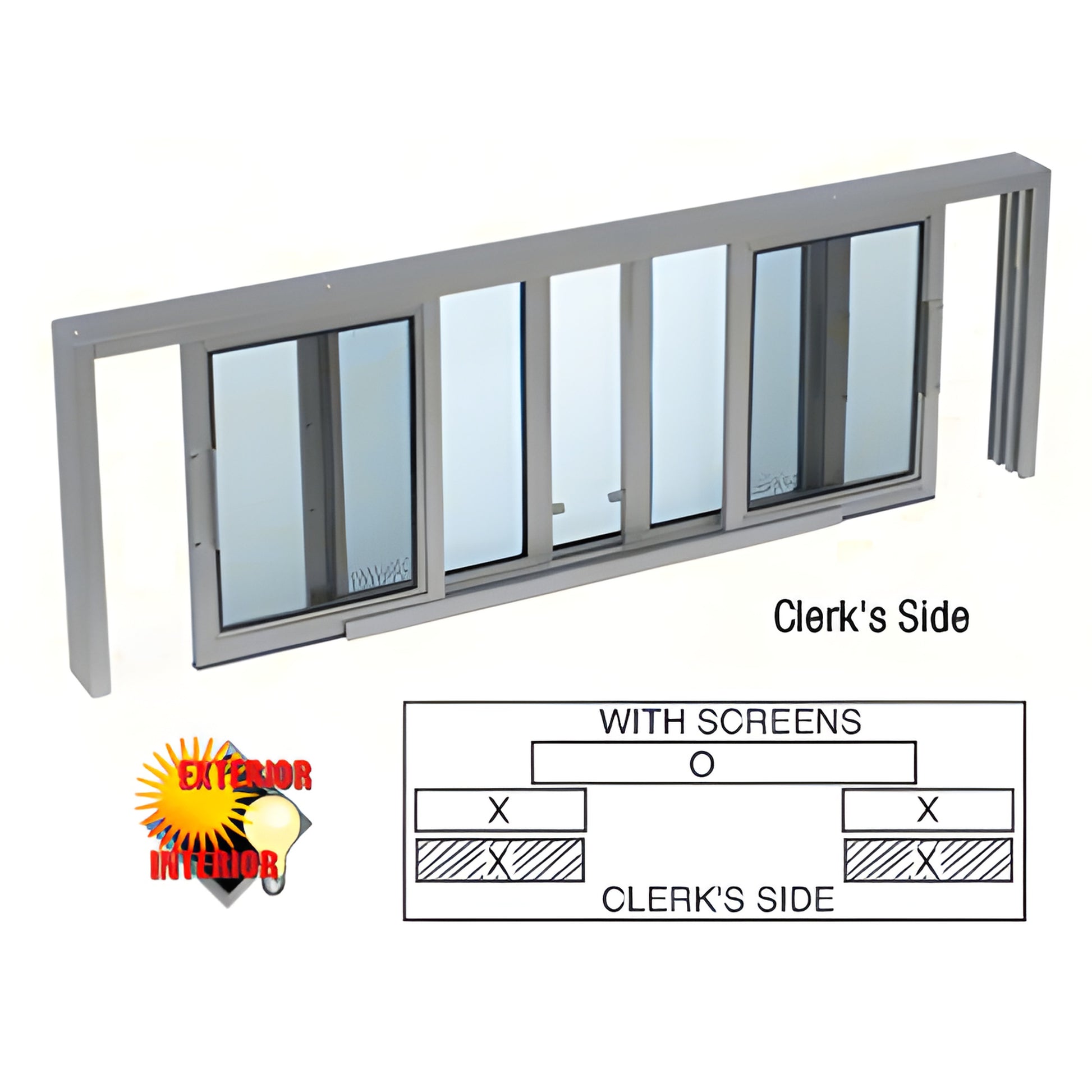

This CRL Horizontal Sliding Service Window features two sliding side panels plus a fixed center panel. The center panel is twice the width of each sliding panel so both sliding panels can be opened simultaneously. Units ship with vinyl for 1/8" (3 mm) or 1/4" (6 mm) glazing; windows may also be ordered pre-glazed with 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass. SKU: SW5612A.

NOTE: If ordered with keyed locks the sliding screens will be installed in the center channel. Surround frame is not available for insulating glass models. An overhang is recommended for exterior installations.

SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, Duranodic bronze, RAL powder coat or Kynar paint
Glazing: 1/8" (3 mm) or 1/4" (6 mm) tempered glass; 1/2" (12 mm) insulating glass (on some models); vinyl supplied on all models
Instructions included.

Product Warning:

Horizontal Service Window Series SW1600 THRU SW5200 — Maximum Sizes:

144" (3.66 m) wide x 36" (914 mm) high (with restrictions). Example: a 144" (3.66 m) wide window has a maximum height of 24" (610 mm).

Series SW1600 through SW5200 are intended as pass-through windows only; they are not constructed with storefront extrusions and are not intended for other structural uses.

No keyed lock is available for series SW4200 through SW4800
