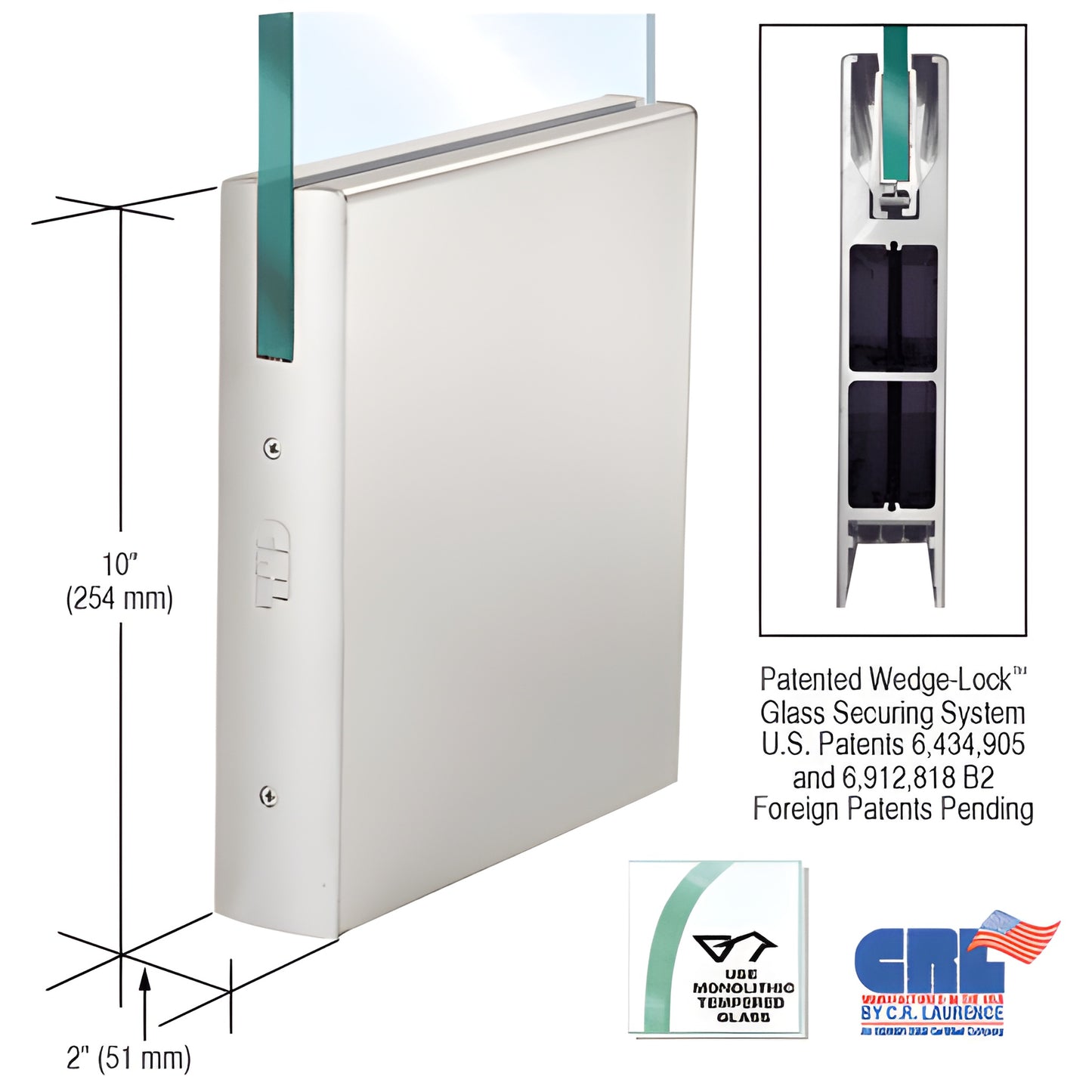

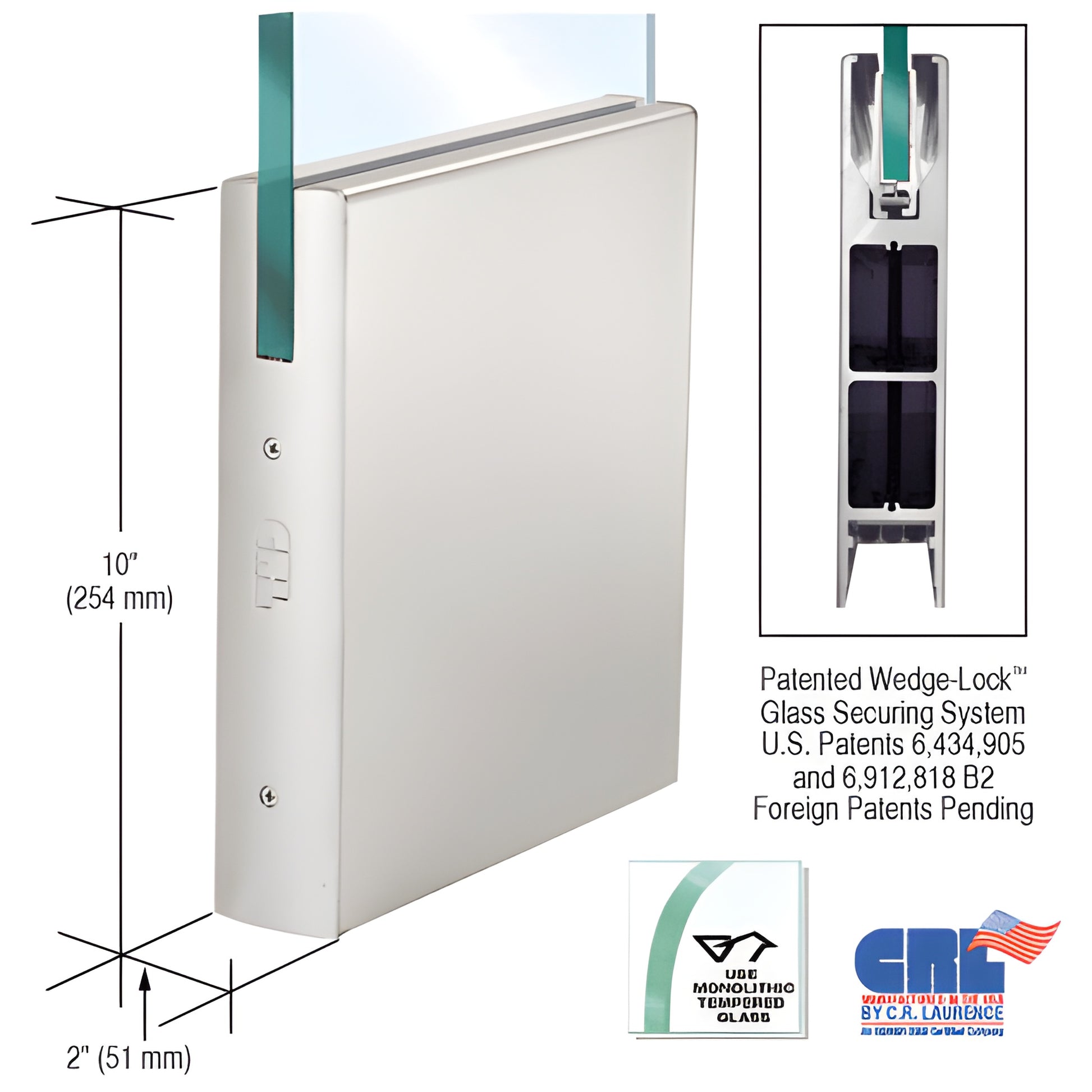

CRL Satin Anodized Glass Door Rail 1/2 in 10 in Square Custom No Lock

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SSA12C), uses the patented Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure monolithic tempered glass in door rails with unmatched strength and speed. The system applies downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. Angled extrusion faces engage an angled groove in the door rail, creating a powerful wedging action and, with the specialized door retaining gasket, generating very high retention force (more than 900 lbs. in the 9" / 228.6 mm Corner Rail).

NOTE: Actual Product Height: 10" (254 mm)

Key benefits for glass door and storefront installers:

• Fast installation—experienced installers can prepare a door in under ten minutes.
• Ships ready-to-install with End Caps installed; only pivot or door arm (not included) must be attached to the pre-assembled Adjustable Door Alignment Slide.
• Adjustable Door Alignment System (standard top and bottom) allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door.
• Low-profile adjustable slide lets pivots with slotted grooves be positioned off the American Standard Setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.
• Models accept 3/8" to 3/4" (10 to 19 mm) glass; rigid single-component housing resists shifting; internal components remain installed during installation; durable glass securing pads perform in extreme environments.
• Built-in Jamb Alignment Block included; arms and pivots must be ordered separately.

After installation, remove the End Cap to access three socket head cap bolts: the center bolt locks the adjustable slide, and the two outer bolts fine-tune the slide 1/8" (3 mm) in or out.

Finishes & ordering: CRL Wedge-Lock® Door Rails are available in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware
