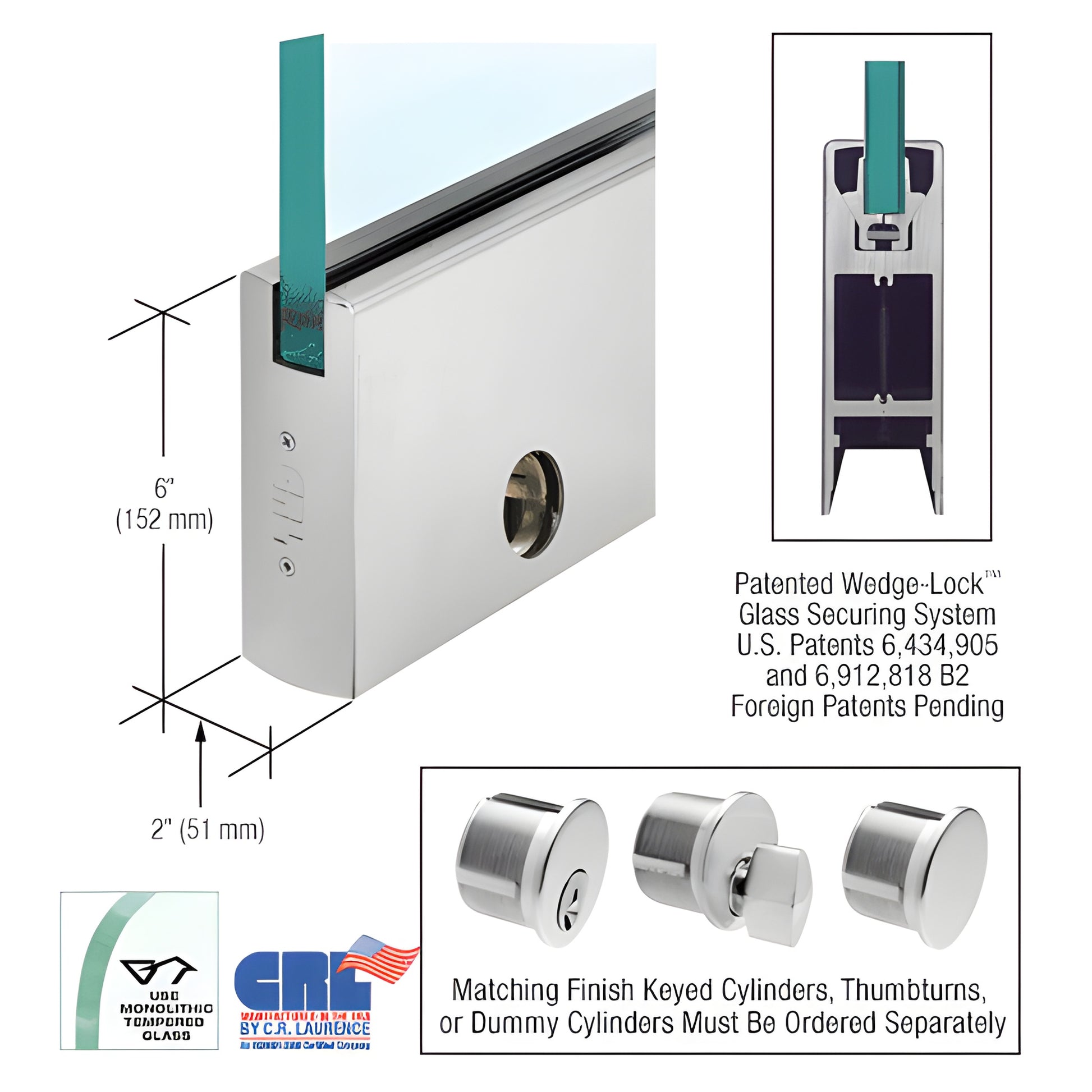

CRL Satin Anodized 6" Square Door Rail w/ Lock for 1/2" Glass - Custom

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (high-retention wedge action)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System uses the exclusive U.S., Canadian and European patented Wedge-Lock® Securing System to clamp the glass from the bottom using two aluminum retaining extrusions and a flat stainless steel bar. As the bar is tightened, angled extrusions engage an angled groove in the rail and draw together, producing high clamping force (over 900 lbs. in the 9" / 228.6 mm corner rail). This design secures monolithic tempered glass firmly and reliably for commercial storefronts and interior glass doors.

The Wedge-Lock® system delivers faster installation and easier field adjustment than conventional door rails. Rails arrive completely fabricated with end caps installed; installers attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide. The Adjustable Door Alignment System provides ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide allows pivots with slotted grooves to be positioned away from the standard American setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other product highlights:

• Models accept 3/8" or 1/2" (10 or 12 mm) glass
• Rigid single-piece housing resists shift and long-term misalignment
• Internal components remain installed during fitting—no disassembly required
• Durable glass securing pads for longevity in extreme environments

NOTE: All Wedge-Lock® door rails include the built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted for custom finishes and widths. Rail specifications, templates and hardware packages are available from our Technical Sales Department.

ORDERING INFORMATION:

• All door rails are supplied with the standard Kwik-Adjust
