CRL Satin Anodized 1/2 in Low-Profile Glass Door Rail 35-3/4 no lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) tempered monolithic glass
• Patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)

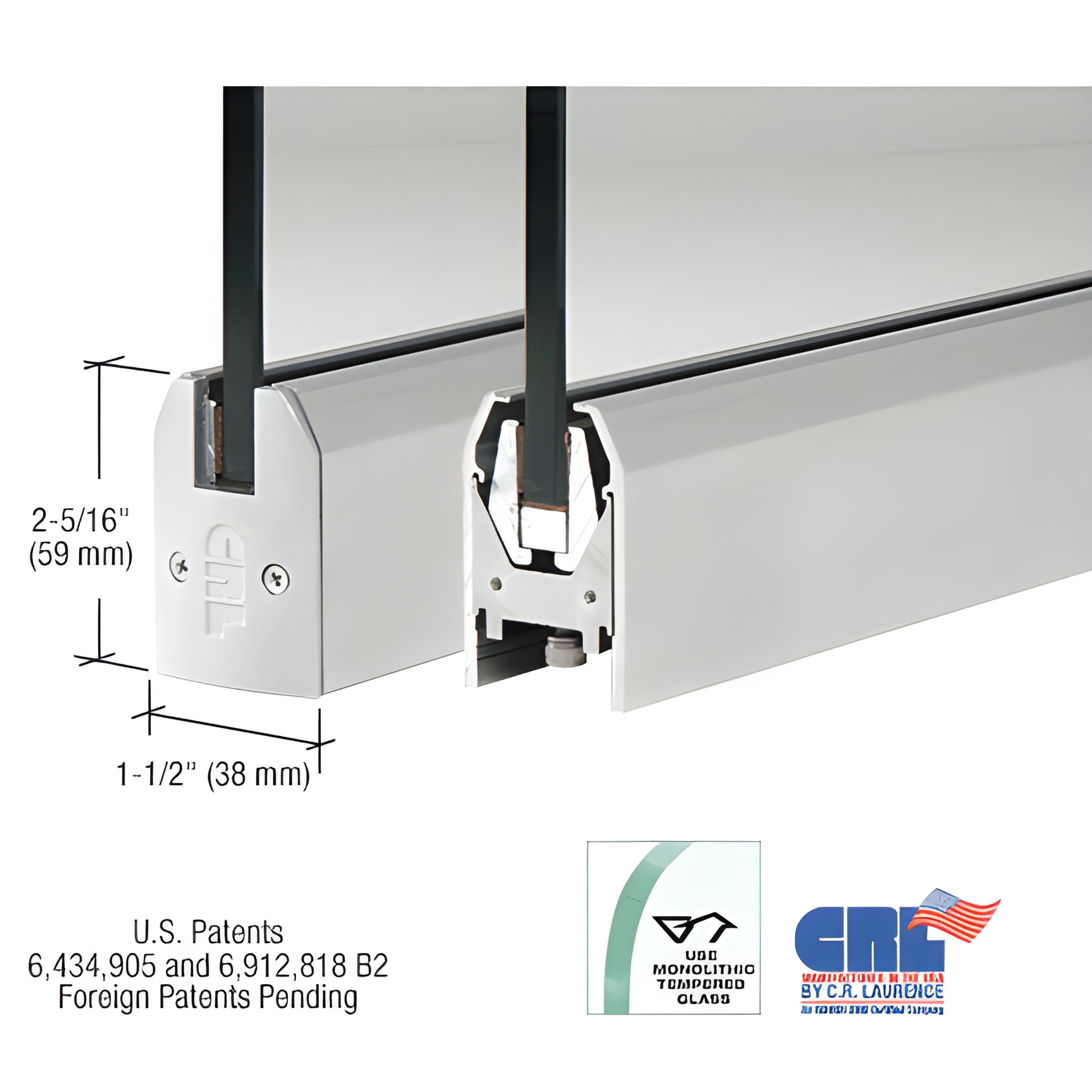

• Low profile rails — only 2-5/16" (59 mm) tall, 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks; matching sidelite rails available

SKU: DR2TSA12S

CRL Low Profile Door Rail combines a slim 2-5/16" (59 mm) profile with the industry-leading Wedge-Lock® Glass Securing System for fast, secure installation. Rails ship complete with end caps, installation instructions and adjustment wrenches — ready to install for frameless glass doors and low profile commercial glass door applications.

Quick-install advantage: The Wedge-Lock® system provides faster installation times than conventional door rails; experienced installers can prepare a door in under ten minutes. Internal components stay in place during installation — no disassembly required.

Adjustability: Integrated Adjustable Door Alignment System (standard on top and bottom rails) permits 1/8" (3 mm) in/out adjustment without removing the door. Adjustment access is through the end cap, revealing three socket head cap bolts: center secures the slide; outer bolts provide the 1/8" (3 mm) in/out travel. Low-profile slide allows pivot placement other than the American Standard setback for vertically out-of-square openings.

Durability & compatibility: Rigid single-component housing resists shift and long-term misalignment. Models accept 3/8" to 3/4" (10 to 19 mm) glass. Glass securing pads are engineered for longevity in extreme environments. Built-in jamb alignment block is standard; arms and pivots sold separately.

Included / Ordering notes:

• End caps included in stock rail lengths — specify total rail length (including end caps) for custom lengths.
• Rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots ordered separately.
• Models with locks ship with lock mechanism installed; keyed cylinders or thumbturns ordered separately.
• Pivot inserts 1NT701, 1NT703, 1NT704 sold separately for overhead or floor closers.
• Rail specifications, templates and hardware packages available from CRL Technical Sales via e-mail.

Ideal use: Low profile door rail for 1/2" tempered glass doors, commercial frameless glass doors, and
