CRL Satin Anodized 1/4" Aluminum U-Channel for Glass (Single)
Item# D631A
Shipping Weight: 14.592 Ounces
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.592 Ounces
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
50
Case Quantity
50
Finish/Color
Satin Anodized
Finish/Color
Satin Anodized
Glazing Thickness
1/4 in. (6 mm)
Glazing Thickness
1/4 in. (6 mm)
Height
1/2 in. (12.7 mm)
Height
1/2 in. (12.7 mm)
Length
144 in. (3657.6 mm)
Length
144 in. (3657.6 mm)
Material
Aluminum
Material
Aluminum
Width
0.467 in. (11.9 mm)
Width
0.467 in. (11.9 mm)
- Fits 1/4" (6 mm) glass
- Extruded 6463-T5 aluminum U-channel
- Finishes match our Sculptured Series posts for seamless design integration
- Covers rough cuts and exposed glass edges
- Wet-glaze installation with clear, mildew-resistant silicone (CRL 33SMRC recommended)
- Use with monolithic tempered glass
- Available in several finishes
SKU: D631A

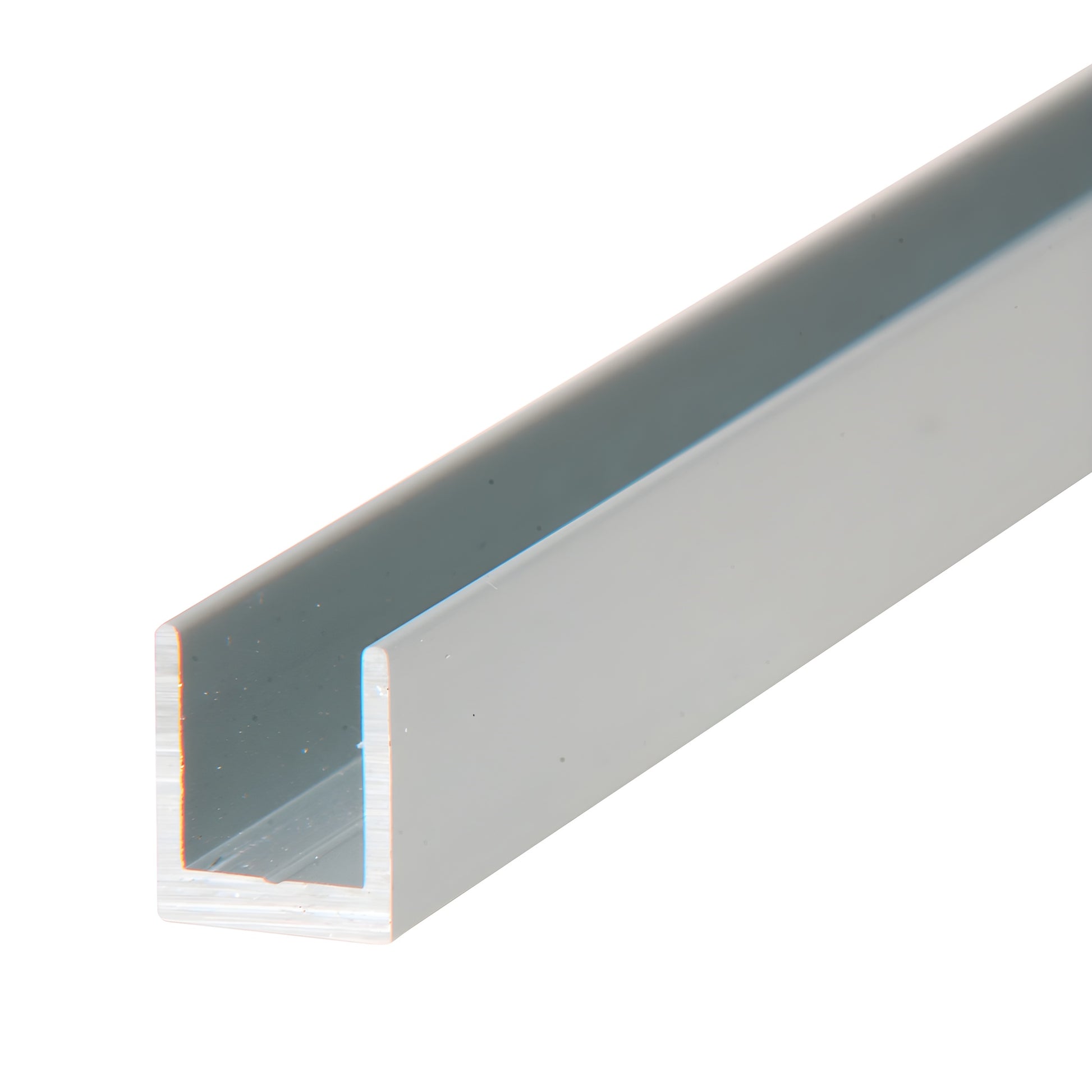

These aluminum U-channels are versatile extrusions for securing fixed glass panels in showers or glass partition systems. Designed specifically for 1/4" glass, the channel conceals cut edges while providing a clean, contemporary finish that matches our Sculptured Series posts. For a durable, mildew-resistant seal use CRL 33SMRC clear silicone.
SPECIFICATIONS:Material: 6463-T5 extruded aluminum
PRODUCT WARNING:- Stock lengths must ship via common carrier unless cut for UPS shipment.
- For 3/8" (10 mm) glass use D321 or D604 channels; those channels require wet-glazing.

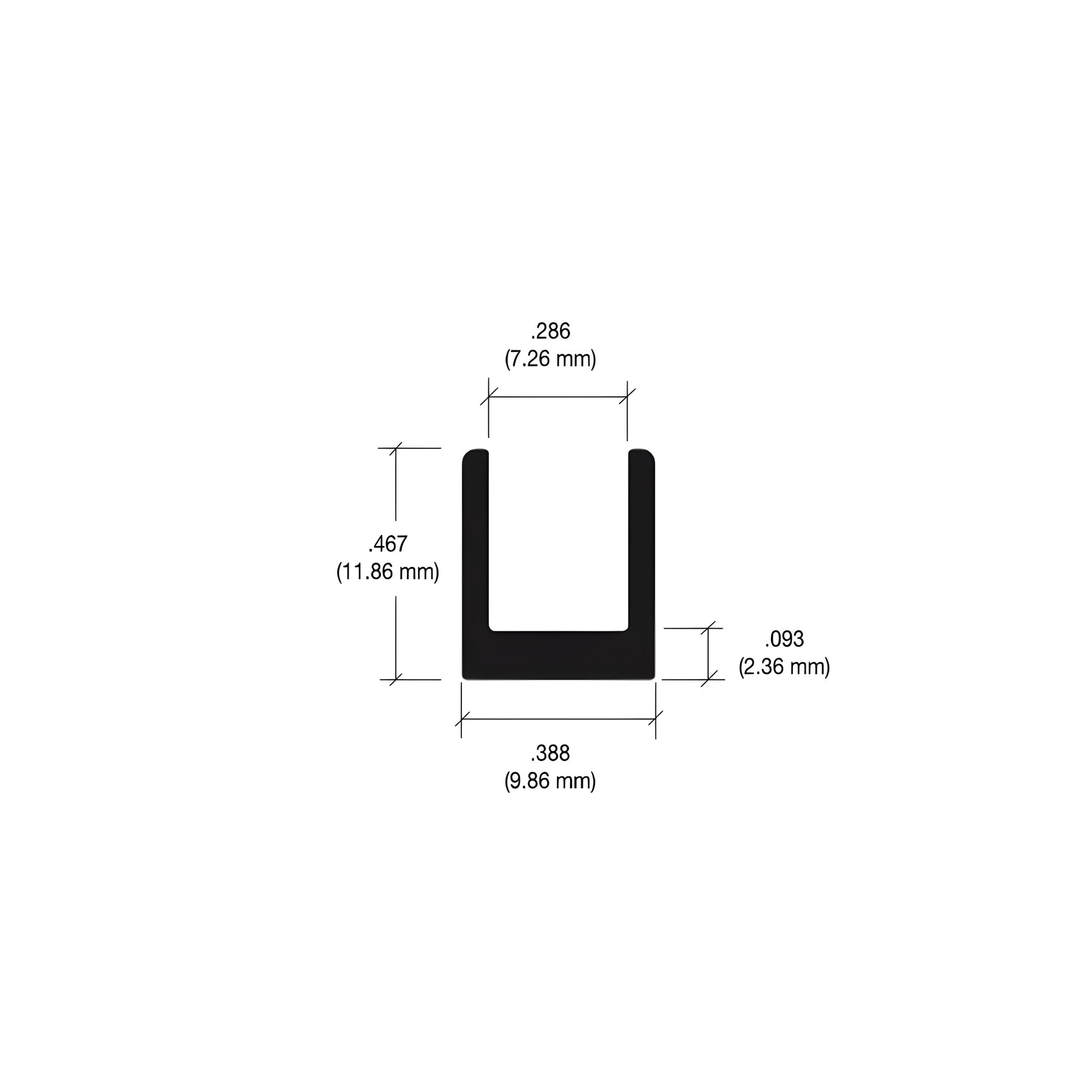

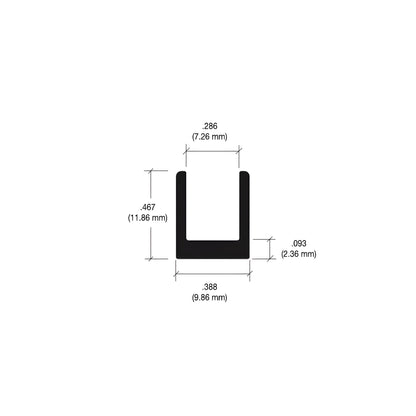

- Exact inside channel dimensions for specific glass thicknesses are available—contact Customer Service for details.
Most shipping weights are approximate and may not be verified. If exact weight is required to determine shipping costs prior to order placement, contact CRL Customer Service. Product images are representative; colors may vary with monitor settings.
Shop now to get the D631A aluminum U-channel that matches your Sculptured Series posts—contact us for custom cuts and finish options.
