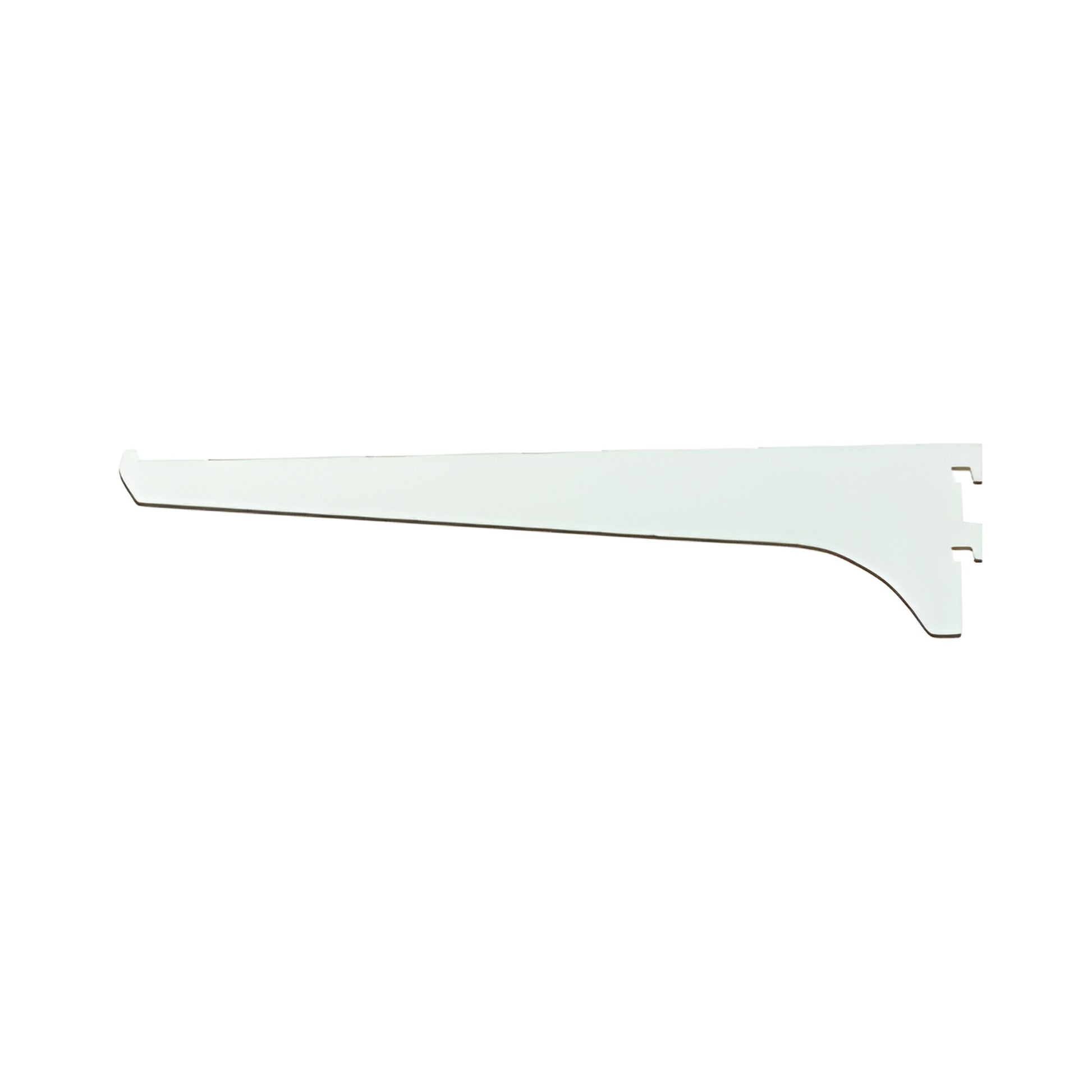

CRL 10 in Satin Anodized Aluminum Mounting Bracket

• Available in Several Finishes
• Available in Five Finishes and Five Lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Fits Our Series 22 and Series 322 Aluminum Standards

CRL Aluminum Brackets (SKU: 122A10) are precision slip-in shelf brackets designed for Series 22 and Series 322 aluminum standards. These hidden-slot brackets have no back flange—each bracket securely slips into the standard and is seated by tapping down. Ideal for glass and wood floating shelf installations where a clean, concealed support is required. Long-tail keywords: CRL Series 22 aluminum shelf brackets, hidden slot floating shelf brackets, aluminum glass shelf supports.

Aluminum Bracket Weight Capacities
Based on two Series 22/322 standards mounted 16" (406 mm) apart with screws into wall studs:

• 4" (102 mm) — 75 lbs (34 kg)
• 6" (152 mm) — 65 lbs (29 kg)
• 8" (203 mm) — 55 lbs (25 kg)
• 10" (254 mm) — 45 lbs (20 kg)
• 12" (305 mm) — 35 lbs (16 kg)

Product Warning:
These Aluminum Brackets are not interchangeable with steel standards or bracket systems from other manufacturers. When using aluminum brackets, deduct 1/16" from the depth of the glass shelf to ensure proper fit.

Choose CRL aluminum hidden-slot brackets for a slim, secure support solution — order now or contact us for installation guidance.
