CRL Satin Anodized 10" x 240" Length Square Sidelite Rail for 5/8" or 3/4" Glass
CRL Satin Anodized 10" x 240" Length Square Sidelite Rail for 5/8" or 3/4" Glass
Regular price
$3,945.40 CAD
Regular price
Sale price
$3,945.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR10SSA34240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Floor Mount Saddle Included FMS | 3SA |
| Glazing Thickness | 3/4 in. (19 mm) |
| Length 240 in. | (6096 mm) |
| Material | Aluminum |
| Nominal Height 10 in. | (254 mm) |
| Profile | Square |
| Width 2-1/4 in. | (57 mm) |
Overview

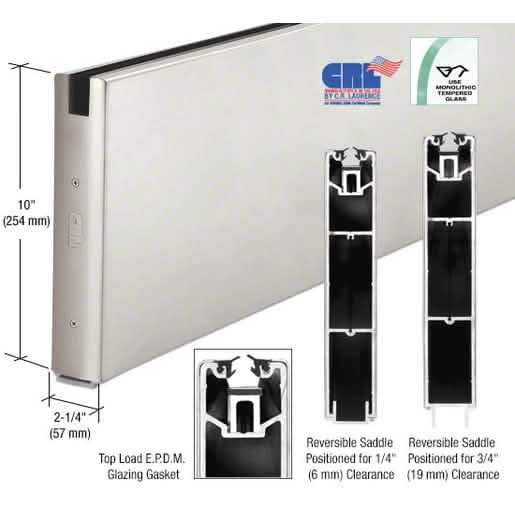

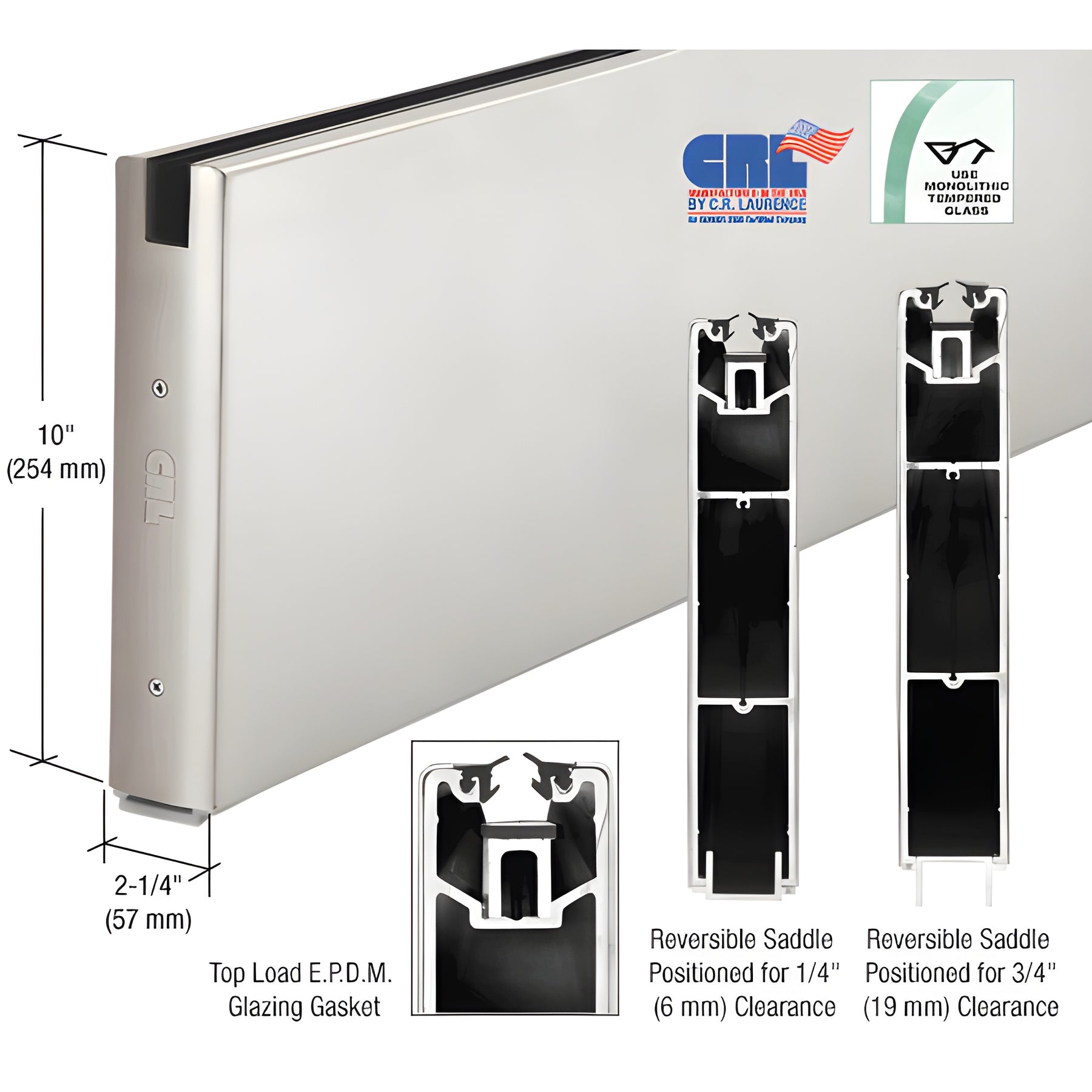

The CRL 10" (254 mm) Square Sidelite Rail is an ideal solution for office and storefront applications, designed to secure fixed glass panels seamlessly.
This product features a reversible extruded saddle to match 1/4" or 3/4" (6 or 19 mm) door clearances and provides an even sightline with our door rails.
Ready-to-ship models are available from CRL inventory and are compatible with monolithic tempered glass.
To ensure a clean, professional installation, the sidelite rail uses a 'lift and drop' method with aluminum and neoprene setting blocks, and secures the glass with a top load EPDM roll-in glazing gasket, eliminating the need for silicone sealant.
For optimal results, pair with matching door rails for a cohesive look, and customize with available lengths and finishes.
This product features a reversible extruded saddle to match 1/4" or 3/4" (6 or 19 mm) door clearances and provides an even sightline with our door rails.
Ready-to-ship models are available from CRL inventory and are compatible with monolithic tempered glass.
To ensure a clean, professional installation, the sidelite rail uses a 'lift and drop' method with aluminum and neoprene setting blocks, and secures the glass with a top load EPDM roll-in glazing gasket, eliminating the need for silicone sealant.
For optimal results, pair with matching door rails for a cohesive look, and customize with available lengths and finishes.
Specifications
Engineering & Test Reports
