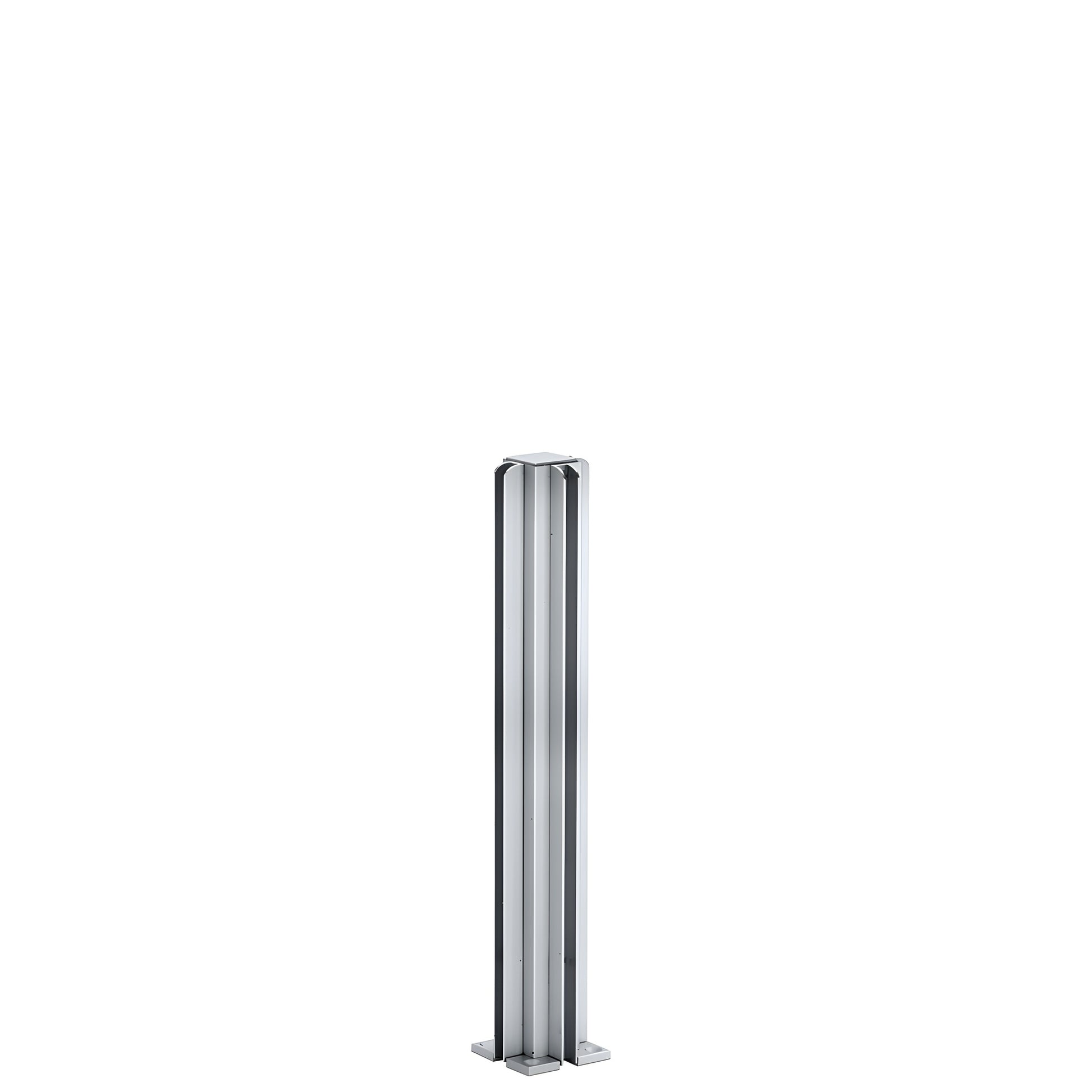

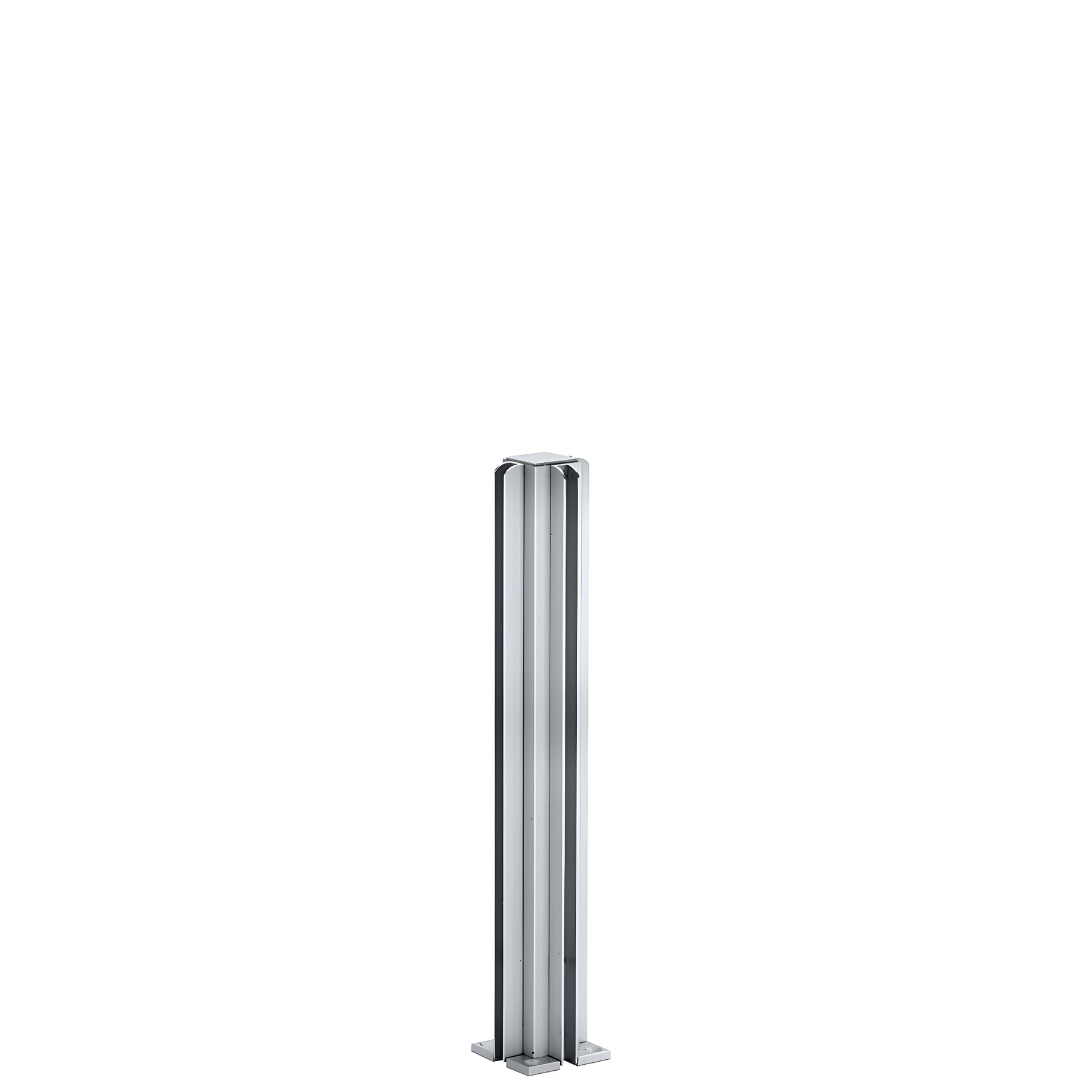

CRL 12-inch Satin Anodized 4-Way Partition Post, Aluminum

• Stock post sizes, RED-E to ship — SKU D990A124W
• Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
• Five standard configurations: End, Center, Corner, 3-Way, 4-Way
• Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
• Top cap and mounting base included; use with monolithic tempered glass

CRL Design Series partition posts are a slim-profile aluminum solution for glass partitions, widely used in banks, offices, restaurants, and commercial interiors. Ready-to-ship stock sizes and an easy-to-install mounting base make these posts ideal for fast retrofit and new construction projects. The full-length glazing channels secure 1/4" (6 mm) glass; use Cat. No. 33SC Clear Silicone to set the glass. Custom 135° posts are available in some finishes and sizes. Each assembled post includes one attached top cap, one attached mounting base, and four wood screws for mounting.

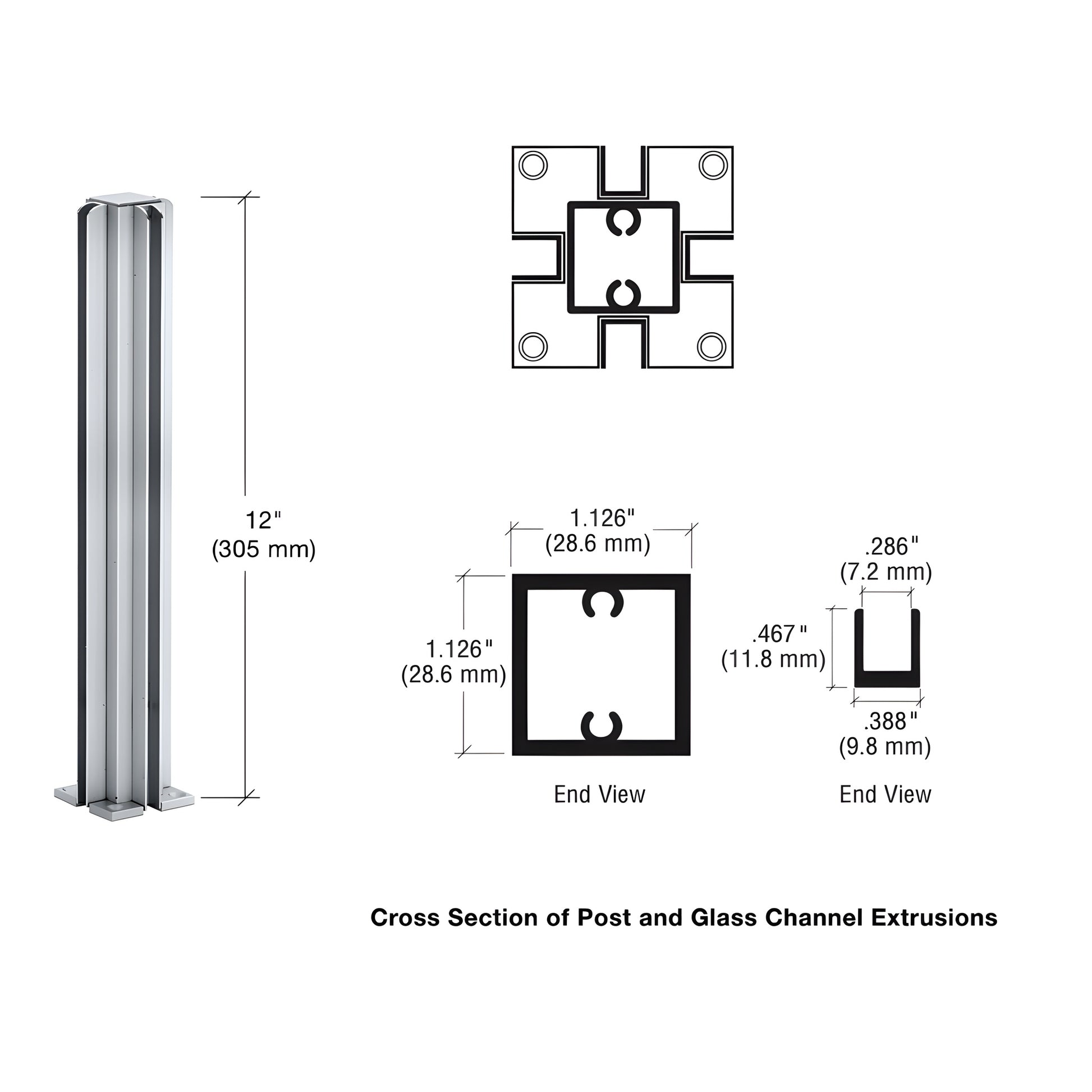

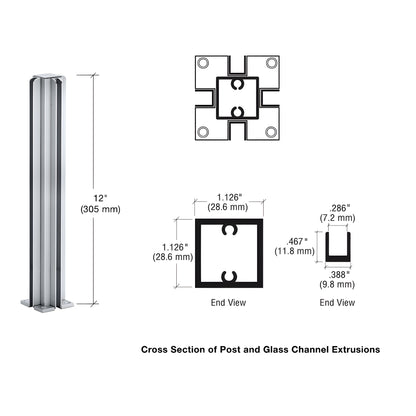

These fully assembled Design Series posts measure 1-1/8" (28.6 mm) square. Post mounting base plates measure 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the channel.

You can also build custom Design Series partition posts using CRL components — see instructions and requirements and the parts page.

Product Warning:

The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.

Order stock Design Series partition posts (SKU D990A124W) for fast delivery and reliable aluminum glazing support — contact CRL Customer Service to place your order or request finish/size availability.
