CRL 120" Satin Anodized Bottom Guide for OT Top-Hung Sliders & Bifold

• Featuring 4" (102 mm) Square DR4S Series Door Rails
• Panels hung from end point to minimize obstruction and maximize clear sightlines
• Custom built to your specifications for precise fit and finish
• Designed for use with monolithic tempered glass panels

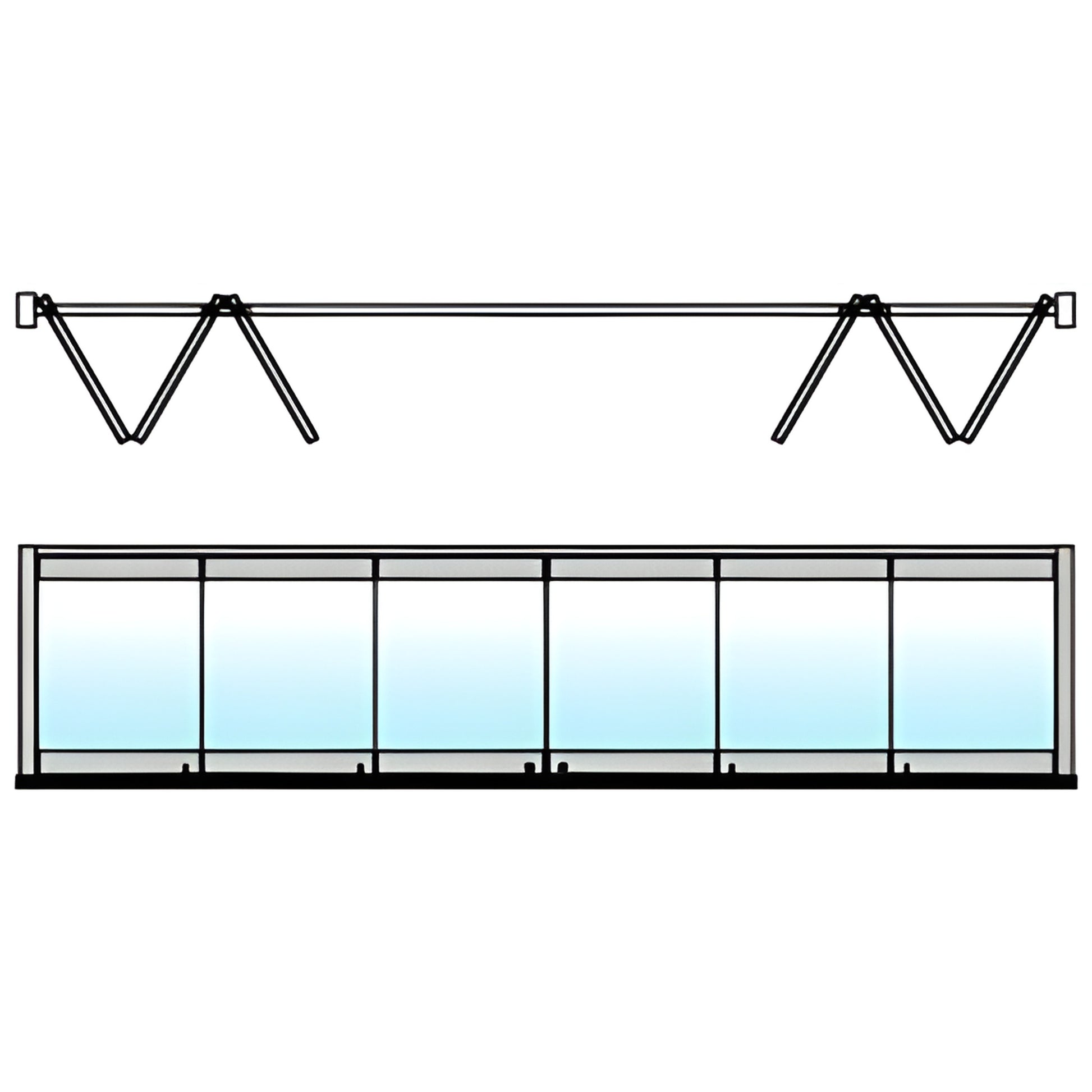

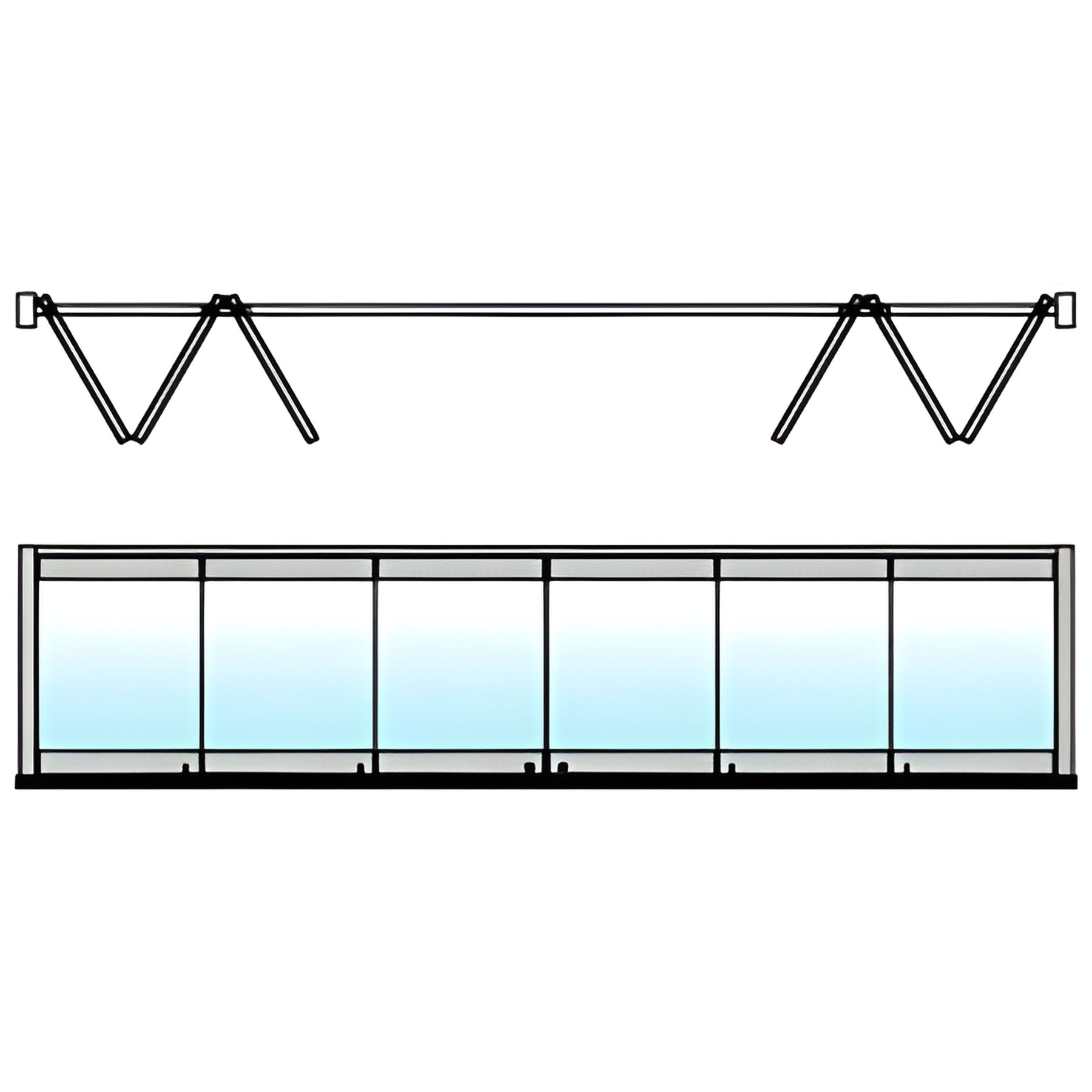

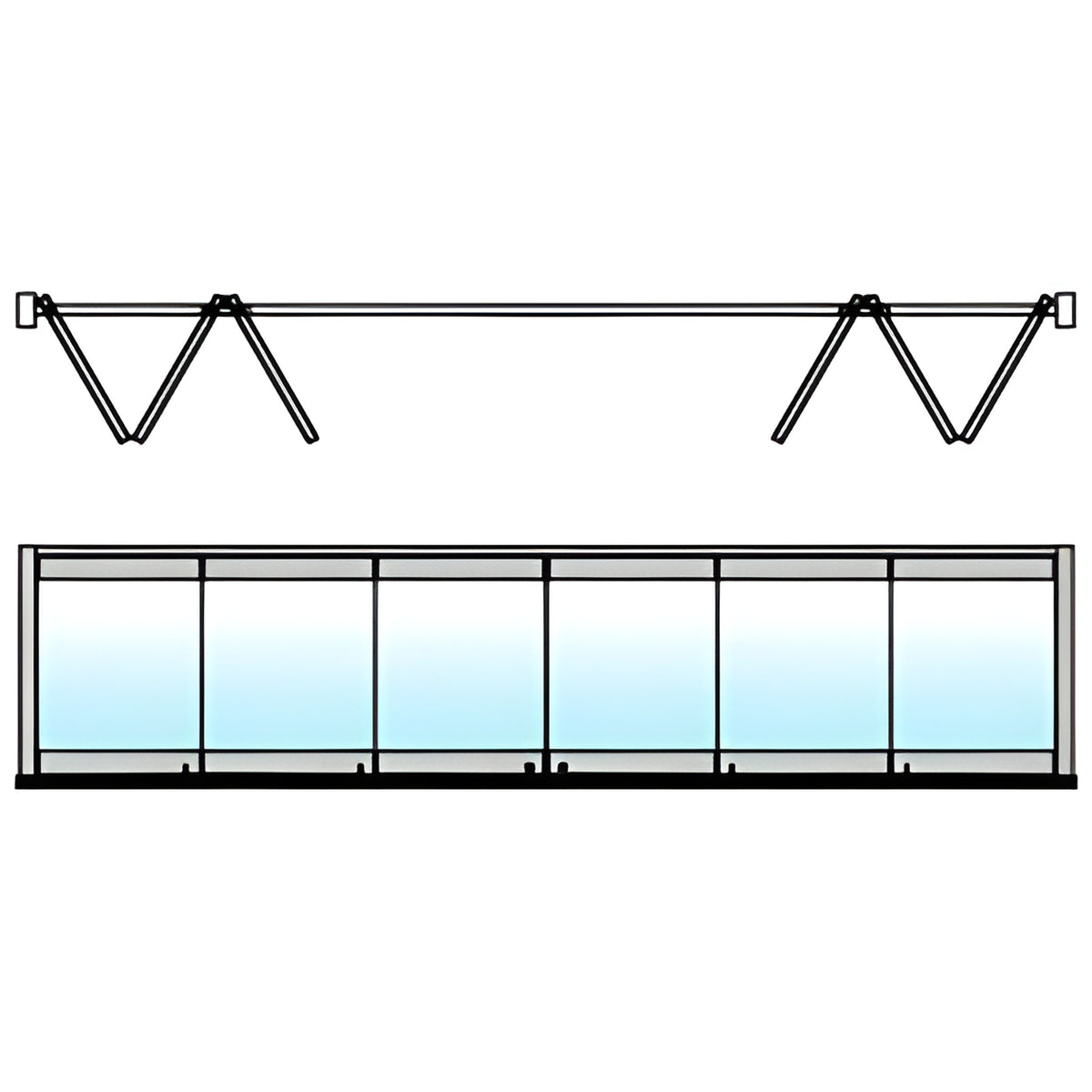

Product overview (SKU 0TB6BPSA): CRL Overhead Track Full Panel Bi-Fold Door Systems are available in four configurations, supporting up to three panels per side. Panels join with hinged end caps and are supported by a single Cat. No. 0TCA Carriage Assembly at each panel end for smooth operation.

Use the Cat. No. 0TBR Series Guide Channel supplied with each order to prevent panel dragging during operation. Maximum panel weight: 170 lbs. (77 kg). Maximum panel width (general): 39" (990 mm). Minimum panel width: 15" (381 mm).

Important system limitation for 0TB6BP / SKU 0TB6BPSA: Maximum panel width allowed for this system is 34" (864 mm) — not 39" as noted in some catalogs. To comply with the 34" maximum panel width, overall opening widths cannot exceed 205-1/8" (5.21 m).

Available with 4" (102 mm) square rails by custom order only. Most orders can be fabricated in five business days at our Los Angeles, CA manufacturing facility. Contact our Technical Sales Department for lead times and custom sizing.

IMPORTANT: Verify maximum panel width and overall opening limits before ordering to ensure system compliance and safe operation.

Need a quote or custom configuration for SKU 0TB6BPSA? Contact our Technical Sales Department or CRL Customer Service to order or request exact weights and lead times.
