CRL Satin Anodized 2-5/16" x 120" Length Low Profile Tapered Sidelite Rail With Saddle
CRL Satin Anodized 2-5/16" x 120" Length Low Profile Tapered Sidelite Rail With Saddle
Regular price
$540.73 CAD
Regular price
Sale price
$540.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR2TSA12SL
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 18.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Floor Mount Saddle Included FMS | 2SA |
| Glazing Thickness | 3/8 in. or 1/2 in. (10 mm or 12 mm) |
| Height 2-5/16 in. | (59 mm) |
| Length 120 in. | (3048 mm) |
| Width 2 in. | (51 mm) |
Overview
The CRL Low Profile Sidelite Rails are expertly designed to complement our DR2S Series Low Profile Door Rails, measuring a sleek 2-5/16" (59 mm) in height.

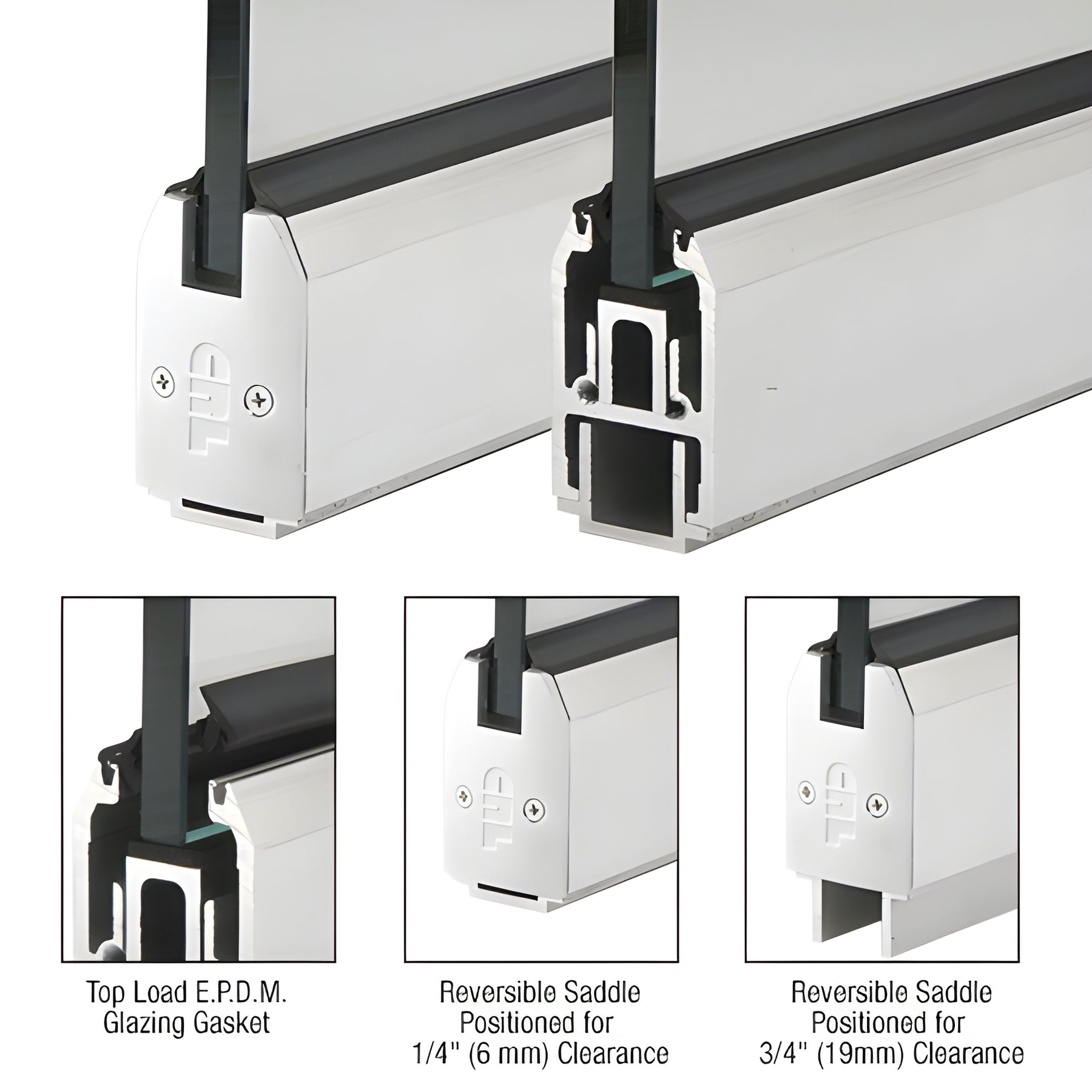

These rails feature a reversible extruded saddle to accommodate both 1/4" (6 mm) and 3/4" (19 mm) door clearances, ensuring an even sight line.
Available in eight architectural finishes and customizable options, these rails also include vinyl for 1/2" (12 mm) tempered glass.
Ready-to-ship models are stocked in the CRL inventory, and for more details, you can reach out to our Commercial Hardware Technical Sales team.
For seamless integration, SREC2T Series End Caps and UCSB4 Setting Blocks should be ordered separately, and for different glass sizes, additional vinyl options are available.
These rails feature a reversible extruded saddle to accommodate both 1/4" (6 mm) and 3/4" (19 mm) door clearances, ensuring an even sight line.
Available in eight architectural finishes and customizable options, these rails also include vinyl for 1/2" (12 mm) tempered glass.
Ready-to-ship models are stocked in the CRL inventory, and for more details, you can reach out to our Commercial Hardware Technical Sales team.
For seamless integration, SREC2T Series End Caps and UCSB4 Setting Blocks should be ordered separately, and for different glass sizes, additional vinyl options are available.
Specifications
Engineering & Test Reports
