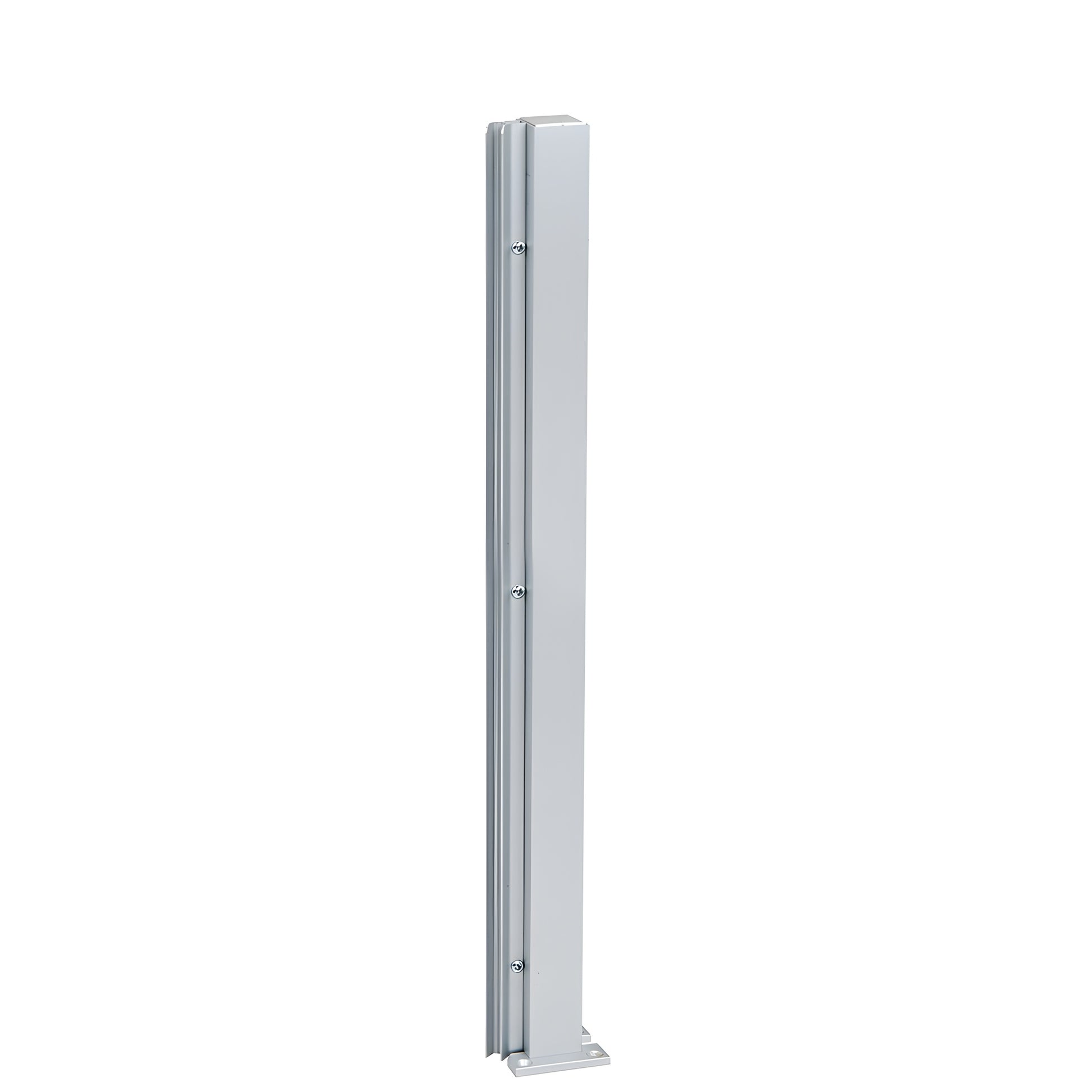

CRL 24" Satin Anodized 135° RH Center Glass Partition Post
CRL 24" Satin Anodized 135° RH Center Glass Partition Post
Regular price
$137.56 CAD
Regular price
Sale price
$137.56 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990A24135R
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
135 Degree Center Post
Finish/Color
Satin Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Handing
Right Hand
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship — SKU: D990A24135R
- Standard heights: 12", 18", 24" (305, 457, 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) tempered glass
- Top cap and mounting base included; mounting hardware supplied
- Use monolithic tempered glass; glazing vinyl provided for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series partition posts are popular, ready-to-ship aluminum partition posts for glass installations used in banks, offices, and restaurants. The slim-line profile, full-length glazing channels, and easy-to-install mounting base make these durable partition posts a favored choice for interior glass partition systems. Glass is secured with Cat. No. 33SC Clear Silicone. Select finishes and sizes may include custom 135° posts.

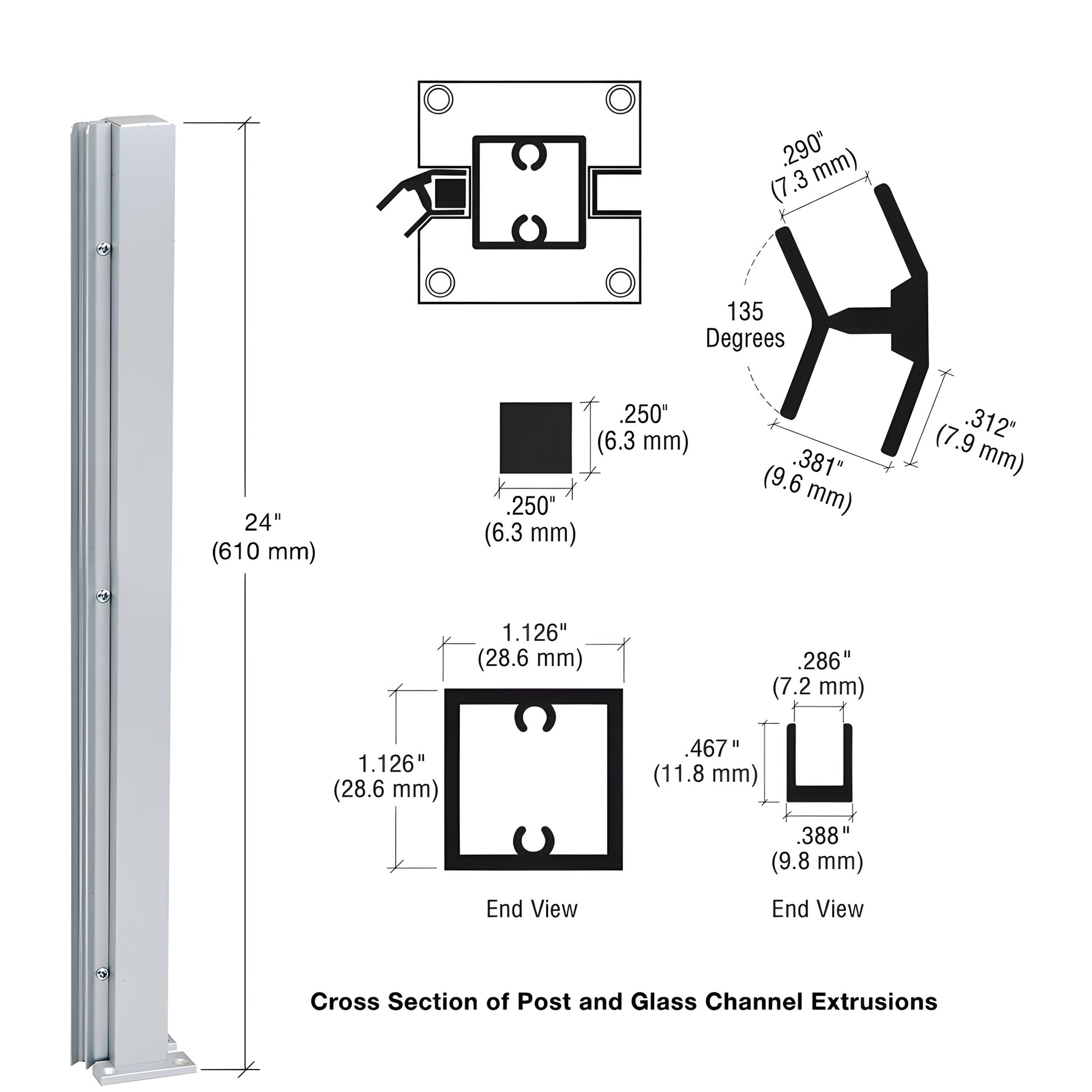

Each fully assembled post measures 1-1/8" (28.6 mm) square with a 2" (51 mm) square mounting base plate. Glazing channels rise 15/32" (12 mm) from the post surface. Posts ship with one attached top cap, one attached mounting base, and four wood screws.
You can also build custom Design Series partition posts with CRL components — instructions and requirements, parts page.
Product Warning: Secure glass into glazing channels using Cat. No. 33SC Clear Silicone.
Order CRL Design Series partition posts (SKU D990A24135R) today — in-stock and ready to ship.
