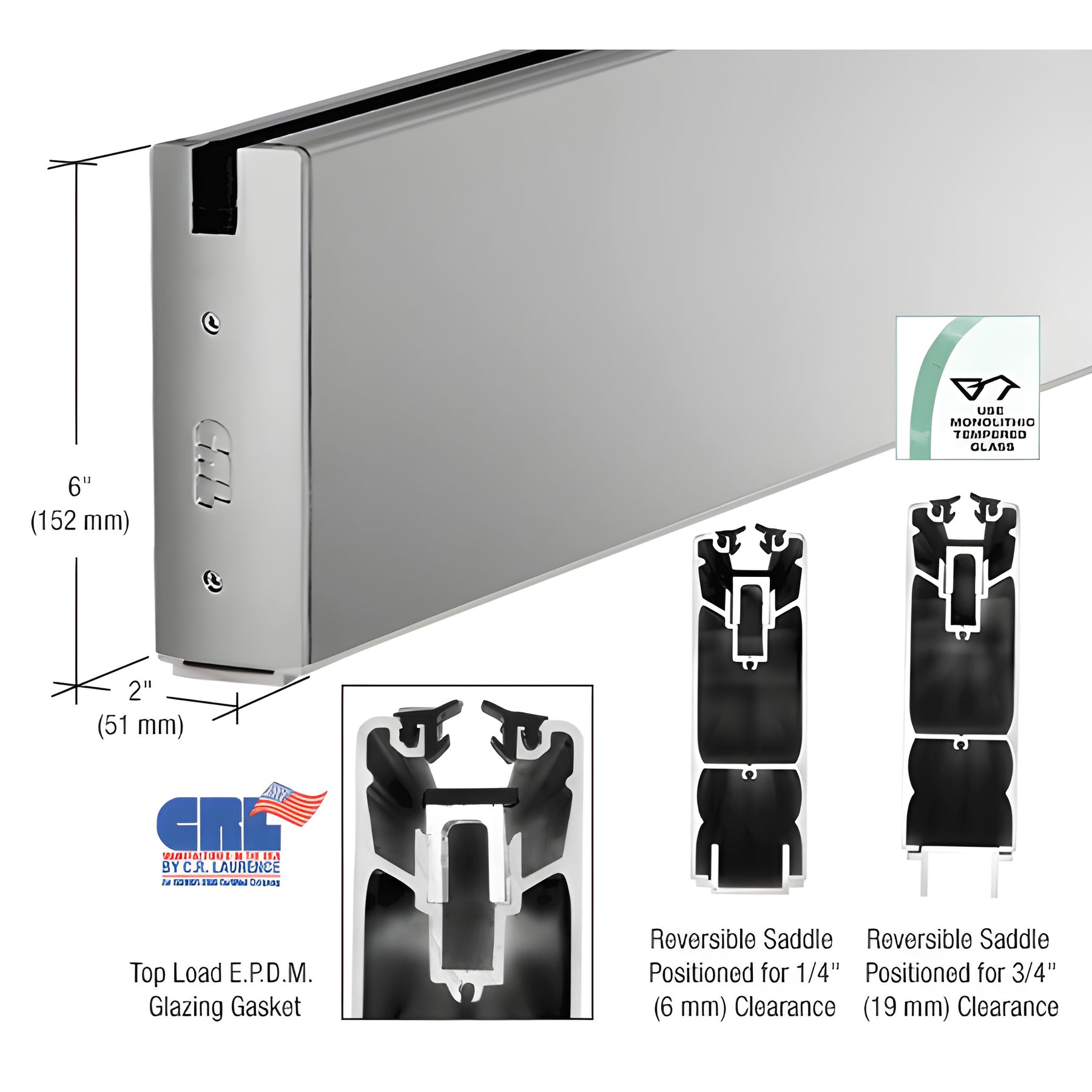

CRL Satin Anodized 240" x 6" Square Sidelite Rail

The CRL 6" (152 mm) Square Sidelite Rail is an ideal choice for office and storefront applications, providing secure support for fixed glass panels.
This versatile product features a reversible extruded saddle to match 1/4" or 3/4" door clearances, ensuring an even sightline with matching door rails.
The sidelite rail is compatible with 1/2" (12 mm) glass using the included vinyl, while vinyl for 3/8" (10 mm) glass can be ordered separately.
Ready-to-ship models are available from CRL's inventory, and custom lengths and finishes can be requested for tailored solutions.
For optimal results, use monolithic tempered glass and CRL's top load EPDM roll-in glazing gasket, which simplifies installation by eliminating messy silicone sealant.
Note that end caps and specific accessories must be ordered separately, and cutting stainless steel cladded aluminum requires a cold saw to avoid damaging the finish.
For further assistance, please contact CRL's Technical Sales team.
