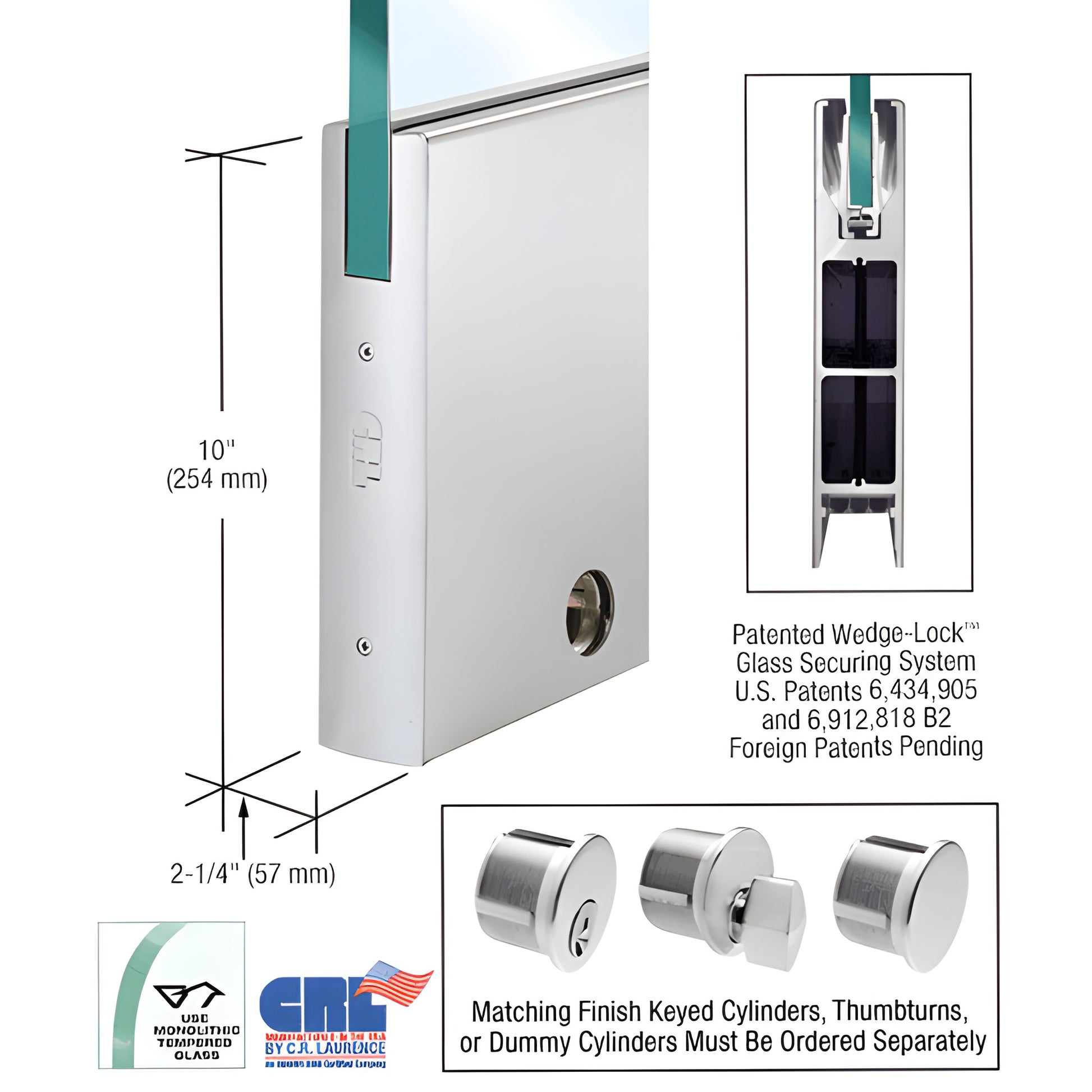

CRL 10" Square Door Rail w/ Lock, Anodized, 3/4" Glass, Custom Length

• Custom length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (high-retention wedge action)
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a frameless glass door rail system engineered for secure, long-lasting attachment to monolithic tempered glass. The exclusive CRL Wedge-Lock® Securing System (U.S. Pat. 6,434,905; U.S. Pat. 6,912,818 B2; Canadian Pat. 2,419,706; European Pat. EP 1 404 939 B1) applies angled wedge pressure from the bottom of the door rail using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, the extrusions are pulled together inside an angled groove to create exceptional gripping force — more than 900 lbs. in the 9" (228.6 mm) corner rail — delivering heavy-duty retention across full-length rails up to 35-3/4" (908 mm).

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® system provides industry-leading installation speed for glass door rails. Experienced installers can prepare a door for installation in under ten minutes. Rails come completely fabricated and ready-to-install with end caps installed. After rail installation, simply attach the door arm or pivot (not included) to the adjustable door alignment slide pre-assembled in the rail.

The adjustable door alignment slide allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door — standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts provide the ±1/8" adjustment. The low-profile slide permits pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) and supports fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing that resists shifting and long-term adjustment loss
• Internal components remain in-place during installation
• Durable glass-securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail
