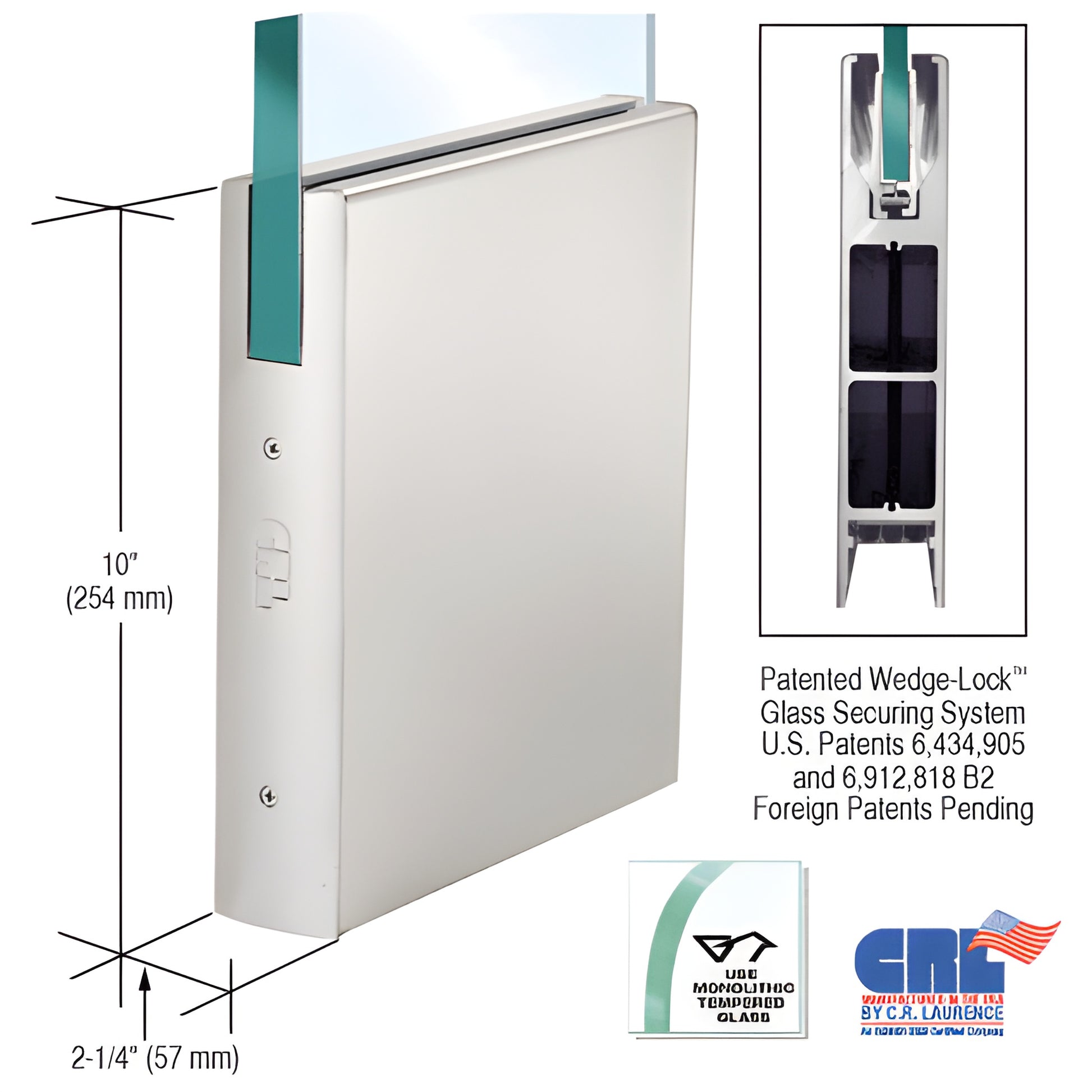

CRL Satin Anodized 3/4" Glass 10" Square Door Pull Rail - No Lock

• Custom Length for 3/4" (19 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian, EU patents)
• Models to Fit from 1/2" to 3/4" (12 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a purpose-built glass door rail system for commercial and architectural tempered glass doors. The exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures the glass by applying downward pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar. Tightening socket head cap bolts pulls the extrusions into the angled rail groove, creating exceptional clamping force (over 900 lbs. in the 9" corner rail) for a durable, long-lasting attachment.

NOTE: Actual Product Height: 10" (254 mm)

The Wedge-Lock® system delivers the fastest installation time among door rail systems. CRL rails ship completely fabricated and ready-to-install with end caps fitted. Installers simply attach a door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door — standard on top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the outer bolts provide the 1/8" (3 mm) in/out adjustment. The low-profile slide and slotted pivot grooves enable non-standard setback positioning and fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing that resists shifting or loss of adjustment
• Internal components remain installed during fitting — faster install
• Durable glass securing pads engineered for extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

Rails come in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL
