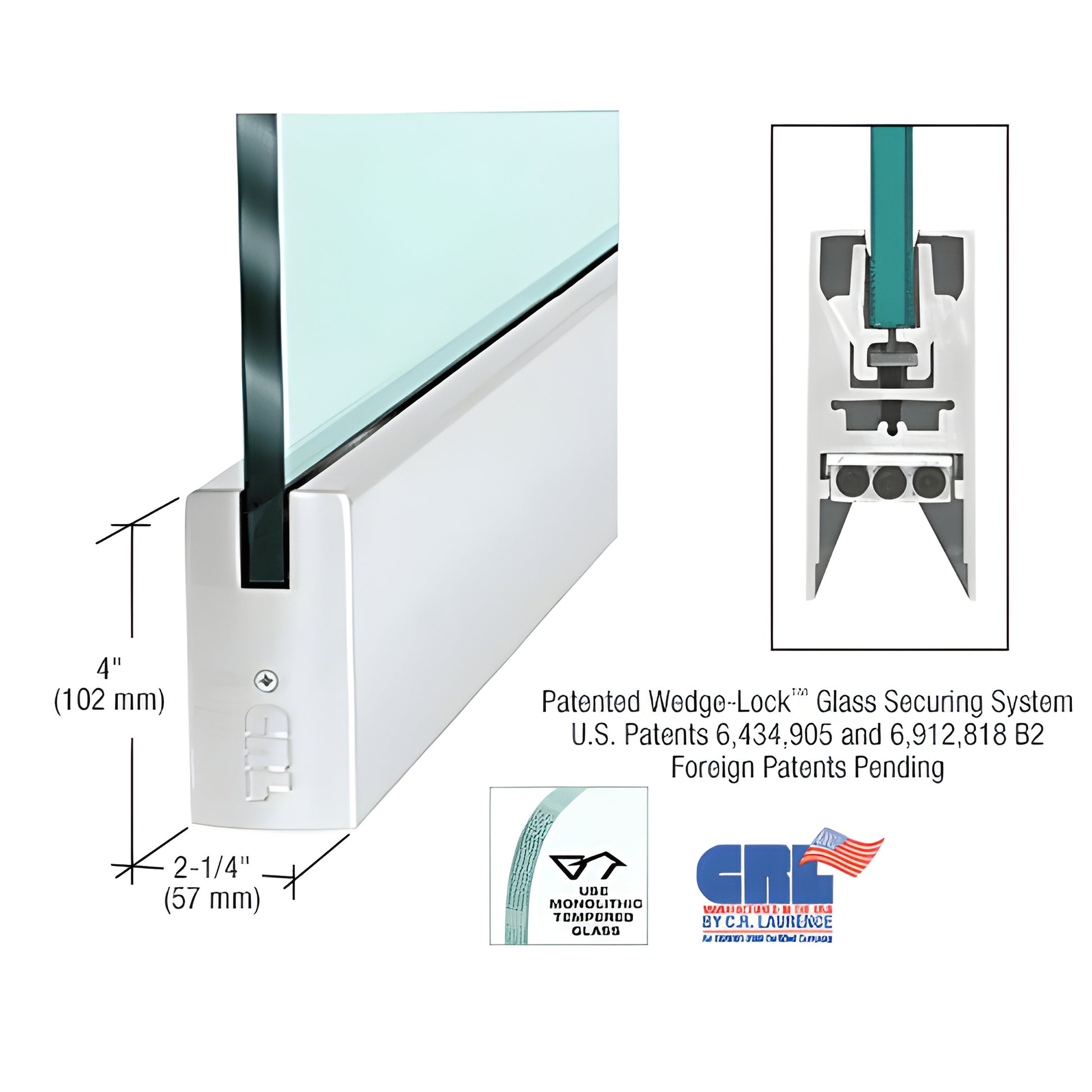

CRL Satin Anodized 3/4" Glass 4" Square Door Rail 35-3/4" No Lock

• 35-3/4" (908 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to deliver fast, secure installation for commercial tempered glass doors. The system applies downward pressure via two glass-retaining aluminum extrusions and a stainless steel bar tightened with socket head cap bolts. Angled extrusions engage an internal wedge groove, producing very high clamping force (over 900 lbs. in the 9" corner rail) for reliable glass retention in full-length 35-3/4" door rails.

NOTE: Actual product height: 4-1/16" (103 mm).

Key advantages and differentiators:

• Fast installation: experienced installers can prepare a door in under ten minutes — lowers labor cost for storefront and commercial glass door installs.
• Pre-fabricated, ready-to-install rails: End caps installed; only attach door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.
• Adjustable Door Alignment System: ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door — useful for out-of-square openings.
• Low-profile adjustable slide: allows pivot placement other than the American Standard setback of 2-3/4" (69.8 mm).
• Durable single-component housing: won’t shift or fall out of adjustment over time.
• Internal components remain assembled for installation — no disassembly required.
• Glass securing pads designed for longevity in extreme environments.

After installation, remove the end cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts adjust the slide ±1/8" (3.2 mm).

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

Finishes and ordering: CRL W
