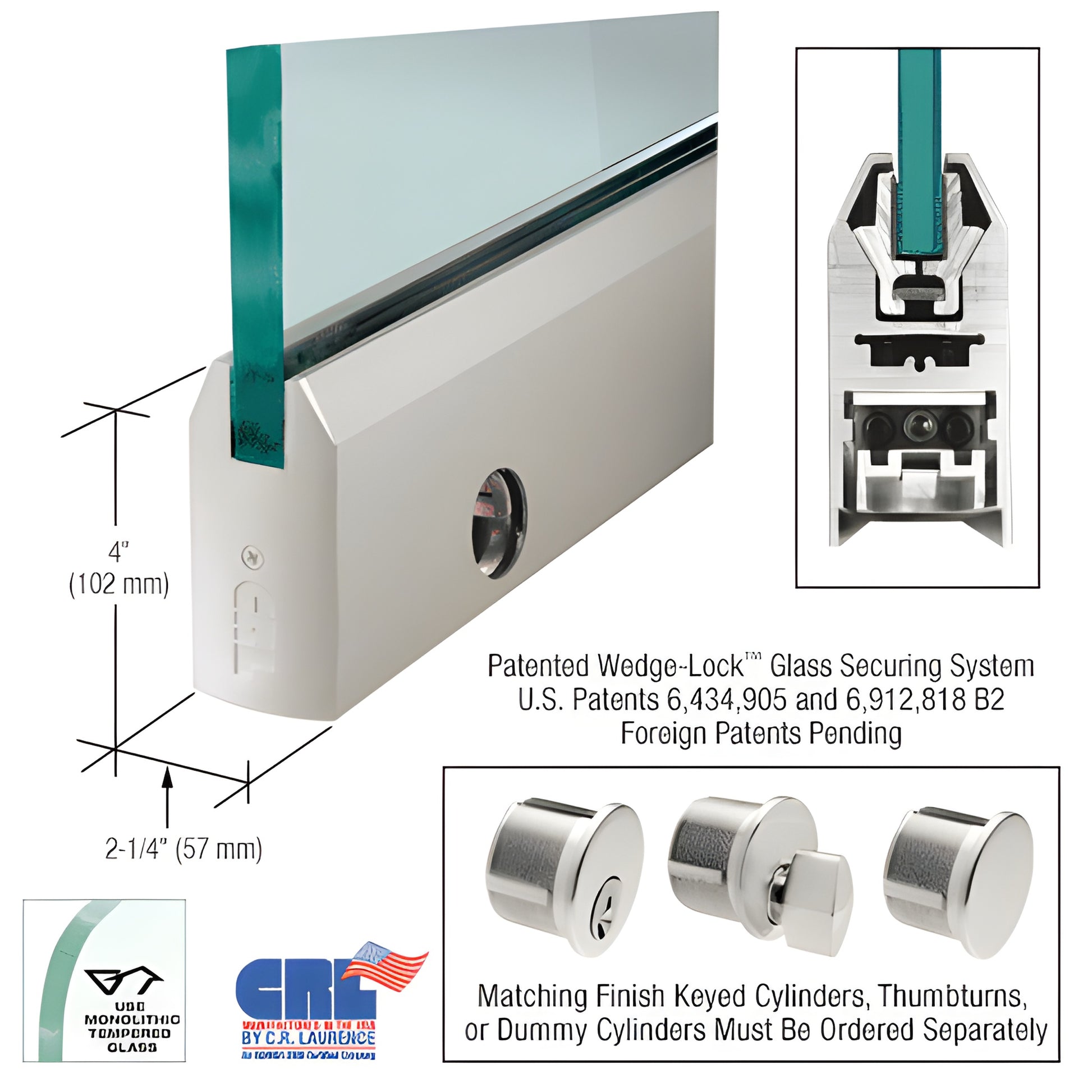

CRL Satin Anodized ¾" Glass 4" Tapered Door Rail w/Lock - Custom

• Custom Length for 3/4" Glass (19 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TSA34CL) is a frameless glass door rail system engineered for commercial and architectural glass entrances. It features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1), a new concept for securing glass in a door rail using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is pulled down with socket head cap bolts, angled extrusions engage an angled groove in the door rail and the specially designed door retaining gasket creates high holding force (more than 900 lbs. in our 9" / 228.6 mm Corner Rail).

The Wedge-Lock® system delivers fast installation for glass door rails—experienced installers can prepare a door for installation in under ten minutes. Rails ship completely fabricated and ready-to-install with End Caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. Adjustment is accessed by removing the End Cap to reveal three socket head cap bolts: the center bolt locks the slide and the two outer bolts adjust the slide 1/8" in or out. The low-profile slide permits pivot placement outside the American Standard setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Reasons to choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
• Rigid, single-component housing that resists shifting and loss of adjustment
• Internal components remain installed during rail fitting—no disassembly required
• Durable glass-securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails include the built-in Jamb Alignment Block. Arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates and hardware packages are available from CRL Technical
