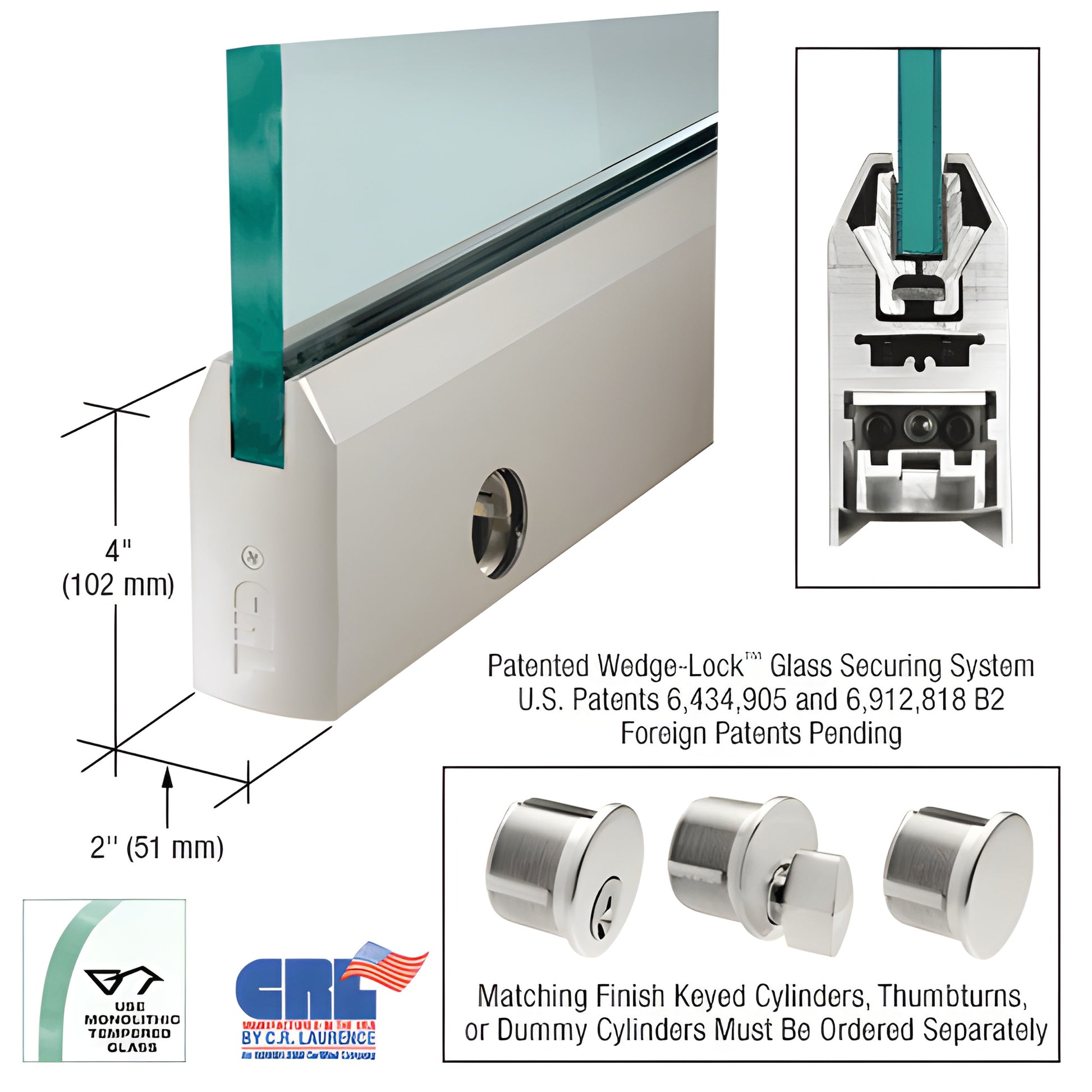

CRL Satin Anodized 4" Tapered Glass Door Rail 3/8" w/ Lock - Custom

• Custom length for 3/8" glass (10 mm)
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit from 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TSA38CL) uses the exclusive Wedge-Lock® Securing System to clamp glass securely from the bottom of the rail. Two glass-retaining aluminum extrusions are compressed by a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an internal wedge groove so the mechanism pulls the retainers together and, with a specially designed door retaining gasket, generates very high retention force in the corner and full-length rails. Ideal for secure tempered glass doors and storefront entrances.

Key differentiators:

• High retention force and durable glass securing pads—designed for longevity in extreme environments
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Internal components remain installed—no removal required prior to installation
• Fastest installation among door rails—experienced installers can prepare a door in under 10 minutes
• Adjustable Door Alignment System standard on top and bottom rails allows +/-1/8" (3.2 mm) adjustment without removing the door

Installation & use
Rails ship completely fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the assembled adjustable door alignment slide. To fine-tune after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide in or out by 1/8" (3.2 mm). The low-profile slide and slotted pivot grooves allow positioning other than the American Standard setback for vertically out-of-square openings.

Ordering notes
All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, closer arms, and floor or overhead pivots must be ordered separately. Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns ordered separately. Specify door rail length (including end caps) when ordering custom lengths. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Product warning
Comes standard with jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.
